Unshielded Twisted Pair

In the realm of networking and telecommunications, the choice of cabling is crucial for ensuring reliable and efficient data transmission. Among the various types of cabling available, Unshielded Twisted Pair (UTP) cables stand out as a popular and versatile option. UTP cables are widely used in both residential and commercial settings due to their cost-effectiveness, ease of installation, and suitability for a range of applications. This blog post delves into the intricacies of UTP cables, their types, advantages, and best practices for installation and maintenance.

Understanding Unshielded Twisted Pair (UTP) Cables

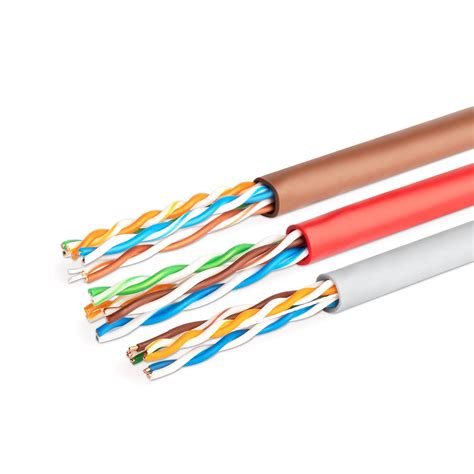

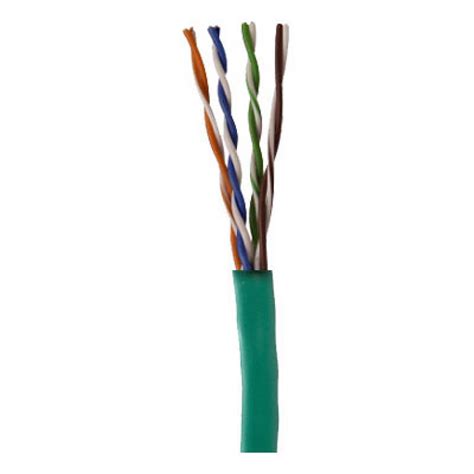

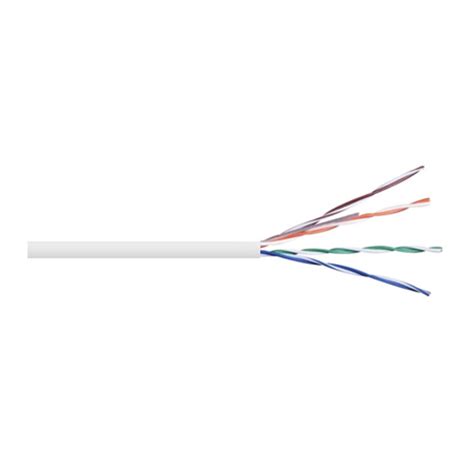

UTP cables are composed of pairs of insulated copper wires twisted around each other. The twisting helps to reduce electromagnetic interference (EMI) and crosstalk, which are common issues in data transmission. Unlike shielded twisted pair (STP) cables, UTP cables do not have an additional layer of shielding, making them lighter and more flexible. This lack of shielding also makes UTP cables more susceptible to interference in certain environments, but their simplicity and cost-effectiveness often outweigh these drawbacks.

Types of UTP Cables

UTP cables are categorized into different types based on their performance characteristics, which are defined by the Telecommunications Industry Association (TIA). The most common types are:

• Category 5 (Cat 5): Supports data rates up to 100 Mbps and is suitable for 10/100 Ethernet networks.
• Category 5e (Cat 5e): An enhanced version of Cat 5, supporting data rates up to 1 Gbps and reducing crosstalk.
• Category 6 (Cat 6): Supports data rates up to 10 Gbps and is designed for Gigabit Ethernet networks.
• Category 6a (Cat 6a): An augmented version of Cat 6, supporting data rates up to 10 Gbps over longer distances and reducing crosstalk even further.
• Category 7 (Cat 7): Supports data rates up to 10 Gbps and includes shielding to reduce EMI and crosstalk.
• Category 8 (Cat 8): The latest standard, supporting data rates up to 40 Gbps and designed for data centers and high-performance networks.

Each category of UTP cable is designed to meet specific performance requirements, making it essential to choose the right type based on the network's needs and the environment in which it will be used.

Advantages of UTP Cables

UTP cables offer several advantages that make them a popular choice for many networking applications:

• Cost-Effective: UTP cables are generally less expensive than other types of cabling, such as fiber optic or STP cables.
• Easy to Install: The flexibility and lightweight nature of UTP cables make them easy to install and manage.
• Versatile: UTP cables can be used in a variety of applications, including Ethernet networks, telephone systems, and video surveillance.
• Compatibility: UTP cables are compatible with a wide range of networking equipment and standards.

These advantages make UTP cables a practical choice for both small-scale and large-scale networking projects.

Best Practices for Installing UTP Cables

Proper installation of UTP cables is crucial for ensuring optimal performance and minimizing interference. Here are some best practices to follow:

• Plan the Layout: Before installation, plan the cable layout to minimize bends and twists, which can degrade performance.
• Use Cable Management: Implement cable management solutions, such as cable trays and raceways, to keep cables organized and protected.
• Avoid Interference: Keep UTP cables away from sources of electromagnetic interference, such as electrical motors and fluorescent lights.

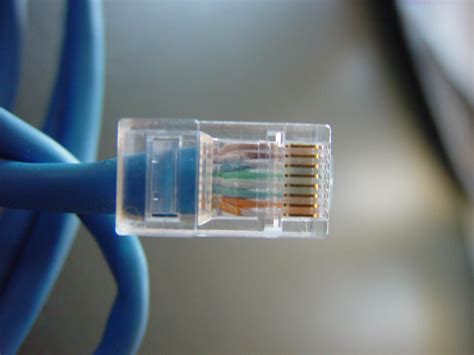

• Proper Termination: Ensure that cables are properly terminated using high-quality connectors and tools to minimize signal loss and crosstalk.
• Testing: After installation, test the cables using a cable tester to verify their performance and identify any issues.

Following these best practices will help ensure that your UTP cable installation is reliable and efficient.

🔧 Note: Always use the appropriate tools and techniques for terminating UTP cables to avoid damaging the wires and connectors.

Maintaining UTP Cables

Maintaining UTP cables is essential for ensuring long-term performance and reliability. Regular maintenance can help identify and address potential issues before they become significant problems. Here are some key maintenance tasks:

• Inspect Cables: Regularly inspect cables for signs of damage, such as cuts, kinks, or frayed insulation.
• Clean Connectors: Clean connectors periodically to remove dust and debris, which can affect signal quality.
• Check for Interference: Monitor the environment for sources of electromagnetic interference and take steps to mitigate their effects.
• Update Documentation: Keep accurate records of cable installations, including cable types, lengths, and termination points.

By performing regular maintenance, you can extend the lifespan of your UTP cables and ensure consistent network performance.

📝 Note: Documenting cable installations and maintenance activities can help streamline troubleshooting and future upgrades.

Common Applications of UTP Cables

UTP cables are used in a wide range of applications, from residential networks to large-scale enterprise systems. Some of the most common applications include:

• Ethernet Networks: UTP cables are the backbone of Ethernet networks, providing reliable data transmission for computers, servers, and other networked devices.
• Telephone Systems: UTP cables are used in traditional telephone systems, as well as in Voice over IP (VoIP) networks.
• Video Surveillance: UTP cables are commonly used to connect security cameras and other surveillance equipment to recording devices and monitoring systems.
• Building Automation: UTP cables are used in building automation systems to connect sensors, controllers, and other devices.

The versatility of UTP cables makes them suitable for a variety of networking and communication needs.

Comparing UTP and STP Cables

While UTP cables are widely used, it's essential to understand the differences between UTP and STP cables to make an informed decision. Here's a comparison of the two:

Choosing between UTP and STP cables depends on the specific requirements of your network and the environment in which it will be used.

💡 Note: In environments with high levels of electromagnetic interference, STP cables may be a better choice despite their higher cost.

Future Trends in UTP Cable Technology

The technology behind UTP cables continues to evolve, driven by the increasing demand for higher data rates and more reliable networks. Some of the future trends in UTP cable technology include:

• Higher Data Rates: New standards, such as Category 8, are being developed to support even higher data rates, making UTP cables suitable for next-generation networks.
• Improved Shielding: Advances in shielding technology are making UTP cables more resistant to electromagnetic interference, enhancing their performance in challenging environments.
• Enhanced Cable Management: Innovations in cable management solutions are making it easier to install and maintain UTP cables, reducing the risk of damage and improving network reliability.

These trends highlight the ongoing development and improvement of UTP cable technology, ensuring its relevance in the ever-evolving world of networking.

UTP cables are a fundamental component of modern networking infrastructure, offering a cost-effective and versatile solution for data transmission. By understanding the different types of UTP cables, their advantages, and best practices for installation and maintenance, you can ensure reliable and efficient network performance. Whether used in residential, commercial, or industrial settings, UTP cables continue to play a crucial role in connecting devices and enabling communication in the digital age.
