Unified Soil Classification System

The Unified Soil Classification System (USCS) is a widely recognized method for categorizing soils based on their physical properties. Developed by Arthur Casagrande in the 1940s, the USCS has become an essential tool for engineers, geologists, and soil scientists. This system provides a standardized approach to classifying soils, which is crucial for various applications, including construction, agriculture, and environmental studies. Understanding the USCS is fundamental for anyone working in fields that require a deep understanding of soil behavior and properties.

Table of Contents

Understanding the Unified Soil Classification System

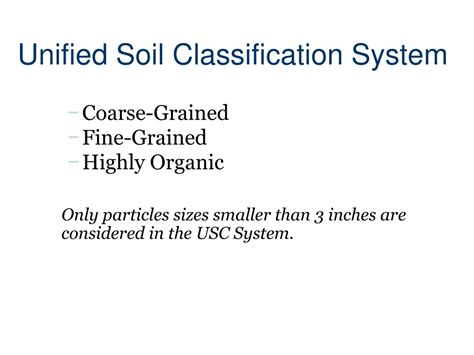

The USCS categorizes soils into two main groups: coarse-grained and fine-grained soils. Each group is further divided into subclasses based on specific criteria. The classification process involves several steps, including visual inspection, grain size analysis, and plasticity tests. The primary goal is to determine the soil’s engineering properties, which are essential for designing foundations, roads, and other structures.

Coarse-Grained Soils

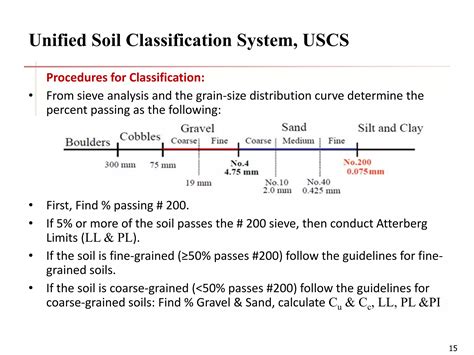

Coarse-grained soils are those with more than 50% of their particles larger than 0.075 mm (No. 200 sieve). These soils are further divided into two subgroups: gravels and sands. Gravels are soils with particles larger than 4.75 mm, while sands have particles between 0.075 mm and 4.75 mm. The classification of coarse-grained soils is based on the percentage of gravel and sand, as well as the presence of fines (particles smaller than 0.075 mm).

Coarse-grained soils are classified using the following symbols:

GW: Well-graded gravels, gravel-sand mixtures, little or no fines.
GP: Poorly graded gravels, gravel-sand mixtures, little or no fines.
GM: Silty gravels, gravel-sand-silt mixtures.
GC: Clayey gravels, gravel-sand-clay mixtures.
SW: Well-graded sands, gravelly sands, little or no fines.
SP: Poorly graded sands, gravelly sands, little or no fines.
SM: Silty sands, sand-silt mixtures.
SC: Clayey sands, sand-clay mixtures.

Fine-Grained Soils

Fine-grained soils are those with more than 50% of their particles smaller than 0.075 mm. These soils are classified based on their plasticity, which is determined through laboratory tests such as the Atterberg limits. The plasticity index (PI) and liquid limit (LL) are key parameters in this classification. Fine-grained soils are divided into silts and clays.

Fine-grained soils are classified using the following symbols:

ML: Inorganic silts and very fine sands, rock flour, silty or clayey fine sands with slight plasticity.
CL: Inorganic clays of low to medium plasticity, gravelly clays, sandy clays, silty clays, lean clays.
OL: Organic silts and organic silt-clays of low plasticity.
MH: Inorganic silts, micaceous or diatomaceous fine sandy or silty soils, elastic silts.
CH: Inorganic clays of high plasticity, fat clays.
OH: Organic clays of medium to high plasticity.
Pt: Peat and other highly organic soils.

Classification Process

The process of classifying soils using the USCS involves several steps:

Visual Inspection: Initial assessment of the soil's appearance, texture, and color.
Grain Size Analysis: Determination of the particle size distribution using sieves and hydrometers.
Plasticity Tests: Measurement of the liquid limit, plastic limit, and plasticity index.
Classification: Assignment of the soil to the appropriate group and subclass based on the collected data.

During the grain size analysis, the soil is passed through a series of sieves with different mesh sizes. The percentage of soil retained on each sieve is recorded, and a grain size distribution curve is plotted. This curve helps in determining the soil's gradation and classifying it as well-graded or poorly graded.

Plasticity tests are crucial for fine-grained soils. The liquid limit is the water content at which the soil changes from a plastic to a liquid state. The plastic limit is the water content at which the soil changes from a plastic to a semi-solid state. The plasticity index is the difference between the liquid limit and the plastic limit. These parameters are used to classify fine-grained soils into silts and clays.

📝 Note: The USCS provides a standardized approach to soil classification, but it is essential to understand that soil behavior can be influenced by various factors, including moisture content, compaction, and environmental conditions.

Applications of the Unified Soil Classification System

The USCS is widely used in various fields due to its ability to provide a comprehensive understanding of soil properties. Some of the key applications include:

Civil Engineering: Designing foundations, roads, and other structures requires a thorough understanding of soil behavior. The USCS helps engineers select appropriate soil types for construction projects.
Agriculture: Soil classification is crucial for determining the suitability of land for different crops. The USCS aids in identifying soil types that are best for specific agricultural practices.
Environmental Studies: Understanding soil properties is essential for managing environmental issues such as soil erosion, contamination, and remediation. The USCS provides a framework for classifying soils and assessing their environmental impact.
Geotechnical Engineering: Soil classification is fundamental for geotechnical investigations, including slope stability analysis, foundation design, and soil improvement techniques.

Importance of Soil Classification

Soil classification is a critical aspect of geotechnical engineering and environmental studies. It provides valuable information about the soil’s physical and engineering properties, which are essential for various applications. The USCS offers a standardized approach to soil classification, ensuring consistency and reliability in soil analysis. By understanding the soil’s classification, engineers and scientists can make informed decisions about soil management, construction, and environmental protection.

Soil classification helps in identifying the soil's potential for various uses, such as construction, agriculture, and environmental remediation. It also aids in assessing the soil's stability and strength, which are crucial for designing safe and efficient structures. The USCS provides a comprehensive framework for soil classification, making it an indispensable tool for professionals in related fields.

Soil classification is also important for environmental management. It helps in identifying soils that are prone to erosion, contamination, and other environmental issues. By understanding the soil's classification, environmental scientists can develop strategies for soil conservation, remediation, and sustainable management.

In summary, the USCS is a vital tool for soil classification, providing a standardized approach to understanding soil properties. Its applications range from civil engineering and agriculture to environmental studies and geotechnical engineering. By using the USCS, professionals can make informed decisions about soil management, construction, and environmental protection.

Soil classification is a fundamental aspect of geotechnical engineering and environmental studies. It provides valuable information about the soil's physical and engineering properties, which are essential for various applications. The USCS offers a standardized approach to soil classification, ensuring consistency and reliability in soil analysis. By understanding the soil's classification, engineers and scientists can make informed decisions about soil management, construction, and environmental protection.

Soil classification is also important for environmental management. It helps in identifying soils that are prone to erosion, contamination, and other environmental
