Underground Gas Pipe

Underground gas pipes are a critical component of modern infrastructure, ensuring the safe and efficient distribution of natural gas to homes, businesses, and industries. These pipes are designed to withstand various environmental conditions and operational stresses, making them essential for reliable energy supply. Understanding the types, installation processes, maintenance, and safety measures associated with underground gas pipes is crucial for anyone involved in the energy sector or interested in infrastructure development.

Types of Underground Gas Pipes

Underground gas pipes come in various materials, each with its own advantages and suitable applications. The most common types include:

• Steel Pipes: Known for their durability and strength, steel pipes are often used in high-pressure applications. They are resistant to corrosion and can withstand significant external loads.

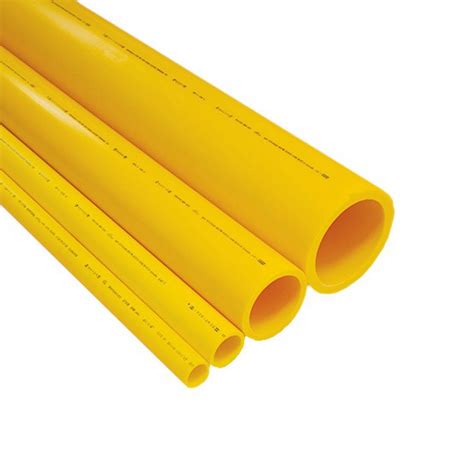

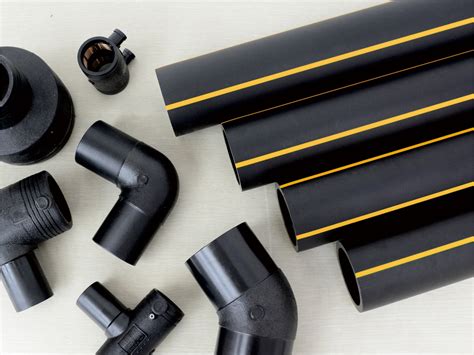

• Polyethylene (PE) Pipes: These pipes are lightweight, flexible, and resistant to corrosion. They are commonly used in residential and commercial applications due to their ease of installation and cost-effectiveness.
• Ductile Iron Pipes: These pipes offer excellent strength and durability, making them suitable for high-pressure and high-volume gas transmission. They are also resistant to external impacts and corrosion.
• Cast Iron Pipes: Historically used, cast iron pipes are still found in older infrastructure. They are strong but can be prone to corrosion and are generally being phased out in favor of more modern materials.

Installation of Underground Gas Pipes

The installation of underground gas pipes involves several critical steps to ensure safety and longevity. Here is a detailed overview of the process:

Site Preparation

Before installation, the site must be prepared to accommodate the underground gas pipe. This includes:

• Clearing the area of any obstacles, such as vegetation or debris.
• Marking the route of the pipe to avoid existing utilities and structures.
• Excavating the trench to the required depth and width, ensuring proper compaction of the soil.

Pipe Laying

Once the site is prepared, the pipe laying process begins. This involves:

• Laying the pipes in the trench, ensuring they are properly aligned and supported.
• Connecting the pipes using appropriate fittings and joints, such as welding for steel pipes or fusion for polyethylene pipes.
• Testing the pipe for leaks and ensuring proper alignment and support.

Backfilling and Compaction

After the pipes are laid and tested, the trench is backfilled and compacted. This step is crucial for the stability and longevity of the underground gas pipe. Key points include:

• Filling the trench with suitable backfill material, such as sand or gravel.
• Compacting the backfill in layers to prevent settling and ensure proper support for the pipe.
• Restoring the surface to its original condition, including landscaping and paving if necessary.

🔍 Note: Proper compaction is essential to prevent future settlement and damage to the underground gas pipe. Ensure that the backfill material is free of large rocks or debris that could cause damage.

Maintenance of Underground Gas Pipes

Maintaining underground gas pipes is crucial for ensuring their longevity and safety. Regular inspections and maintenance can prevent leaks, corrosion, and other issues. Key maintenance activities include:

• Regular Inspections: Conducting periodic inspections to check for signs of corrosion, leaks, or damage. This can be done using visual inspections, leak detection equipment, or remote sensing technologies.
• Corrosion Protection: Applying corrosion protection measures, such as cathodic protection or coatings, to prevent the deterioration of the pipe material.
• Leak Detection: Using advanced leak detection methods, such as acoustic sensors or gas detectors, to identify and repair leaks promptly.
• Repair and Replacement: Repairing or replacing damaged sections of the pipe to maintain the integrity of the system. This may involve excavation, pipe cutting, and welding or fusion of new sections.

Safety Measures for Underground Gas Pipes

Safety is paramount when dealing with underground gas pipes. Proper handling, installation, and maintenance practices are essential to prevent accidents and ensure the safety of workers and the public. Key safety measures include:

• Training and Certification: Ensuring that all personnel involved in the installation, maintenance, and repair of underground gas pipes are properly trained and certified.
• Personal Protective Equipment (PPE): Using appropriate PPE, such as gloves, safety glasses, and protective clothing, to protect workers from hazards.
• Gas Detection Equipment: Employing gas detection equipment to monitor for leaks and ensure a safe working environment.
• Emergency Response Plan: Developing and implementing an emergency response plan to address any incidents or accidents involving underground gas pipes.

🛑 Note: Always follow local regulations and industry standards when handling underground gas pipes. Ensure that all safety protocols are strictly adhered to during installation, maintenance, and repair activities.

Common Issues with Underground Gas Pipes

Despite careful installation and maintenance, underground gas pipes can encounter various issues. Understanding these common problems can help in proactive management and timely resolution. Some of the most frequent issues include:

• Corrosion: Over time, underground gas pipes can suffer from corrosion, which weakens the pipe material and increases the risk of leaks. Regular inspections and corrosion protection measures can mitigate this issue.
• Leaks: Leaks can occur due to various factors, including corrosion, damage from external sources, or faulty installation. Prompt detection and repair of leaks are essential to prevent gas escapes and ensure safety.
• Ground Movement: Soil settlement, earthquakes, or other ground movements can cause stress on underground gas pipes, leading to damage or displacement. Proper installation and regular inspections can help identify and address these issues.
• Third-Party Damage: Damage from external sources, such as excavation activities or vehicle impacts, can compromise the integrity of underground gas pipes. Clear marking and communication of pipe locations can prevent such incidents.

Future Trends in Underground Gas Pipe Technology

The technology and materials used in underground gas pipes are continually evolving to enhance safety, efficiency, and sustainability. Some of the emerging trends include:

• Advanced Materials: The development of new materials, such as composite pipes, offers improved strength, durability, and corrosion resistance compared to traditional materials.
• Smart Sensors: The integration of smart sensors and IoT (Internet of Things) technology allows for real-time monitoring of pipe conditions, leak detection, and predictive maintenance.
• Automated Inspection: The use of automated inspection technologies, such as drones and robotic systems, enables more efficient and accurate assessments of underground gas pipes.
• Sustainable Practices: Emphasis on sustainable practices, including the use of eco-friendly materials and energy-efficient installation methods, is driving innovation in the industry.

These advancements are poised to revolutionize the way underground gas pipes are designed, installed, and maintained, ensuring a more reliable and sustainable energy infrastructure.

Case Studies of Successful Underground Gas Pipe Projects

Several successful underground gas pipe projects serve as excellent examples of best practices and innovative solutions. Here are a few notable case studies:

Project 1: Urban Gas Distribution Network

In a densely populated urban area, a comprehensive gas distribution network was installed using polyethylene pipes. The project involved:

• Careful planning and coordination to minimize disruption to traffic and residents.
• Use of trenchless installation methods, such as horizontal directional drilling, to reduce excavation and environmental impact.
• Implementation of advanced leak detection systems to ensure safety and reliability.

Project 2: Rural Gas Pipeline

In a rural region, a new gas pipeline was constructed to connect remote communities to the natural gas grid. Key aspects of the project included:

• Selection of ductile iron pipes for their durability and resistance to external impacts.
• Extensive use of remote sensing technologies for monitoring and maintenance.
• Community engagement and education to ensure safety and support for the project.

Project 3: Industrial Gas Supply

An industrial facility required a reliable gas supply for its operations. The project involved:

• Installation of high-pressure steel pipes to meet the facility's demands.
• Implementation of advanced corrosion protection measures to ensure longevity.
• Regular inspections and maintenance to prevent downtime and ensure continuous operation.

These case studies highlight the versatility and importance of underground gas pipes in various settings, from urban environments to rural communities and industrial facilities.

Regulatory and Standards Compliance

Compliance with regulatory requirements and industry standards is crucial for the safe and efficient operation of underground gas pipes. Key regulations and standards include:

Adhering to these regulations and standards ensures that underground gas pipes are installed, maintained, and operated safely and efficiently, minimizing risks and maximizing performance.

In conclusion, underground gas pipes play a vital role in the distribution of natural gas, ensuring a reliable and efficient energy supply. Understanding the types, installation processes, maintenance requirements, and safety measures associated with these pipes is essential for anyone involved in the energy sector. By staying informed about emerging technologies and best practices, we can continue to improve the safety, efficiency, and sustainability of underground gas pipe infrastructure. This ongoing commitment to excellence will ensure that natural gas remains a critical component of our energy landscape for years to come.
