Underground Electric Cable

Underground electric cables are a critical component of modern infrastructure, providing reliable power distribution and ensuring the safety and efficiency of electrical systems. These cables are designed to withstand various environmental conditions and mechanical stresses, making them essential for both residential and commercial applications. Understanding the types, installation processes, and maintenance requirements of underground electric cables is crucial for anyone involved in electrical engineering or construction.

Table of Contents

Types of Underground Electric Cables

Underground electric cables come in various types, each suited for different applications and environmental conditions. The most common types include:

Low-Voltage Cables: These are typically used for residential and light commercial applications. They operate at voltages up to 1,000 volts and are designed for ease of installation and durability.
Medium-Voltage Cables: These cables are used in industrial and commercial settings where higher voltages are required. They operate at voltages ranging from 1,000 to 35,000 volts and are designed to handle heavier loads and more demanding conditions.
High-Voltage Cables: These are used for transmitting electricity over long distances and are designed to operate at voltages above 35,000 volts. They are typically used in power grids and large-scale industrial applications.
Control Cables: These cables are used for transmitting control signals and are often found in industrial automation systems. They are designed to withstand harsh environments and provide reliable signal transmission.

Materials Used in Underground Electric Cables

The materials used in underground electric cables are carefully selected to ensure durability, conductivity, and safety. The primary components include:

Conductors: Typically made of copper or aluminum, conductors are responsible for transmitting electrical current. Copper is preferred for its excellent conductivity and durability, while aluminum is often used for its cost-effectiveness.
Insulation: Insulation materials such as cross-linked polyethylene (XLPE), polyvinyl chloride (PVC), and ethylene propylene rubber (EPR) are used to protect the conductors from environmental factors and prevent electrical shorts.
Sheathing: The outer layer of the cable, often made of PVC or polyethylene, provides additional protection against mechanical damage, moisture, and chemicals.
Armoring: In some cases, cables are armored with steel wires or tapes to provide extra protection against physical damage, especially in harsh environments.

Installation of Underground Electric Cables

Installing underground electric cables requires careful planning and execution to ensure safety and reliability. The process involves several steps:

Site Preparation: The first step is to prepare the site by clearing the area and marking the cable route. This includes identifying any underground obstacles such as pipes or other cables.

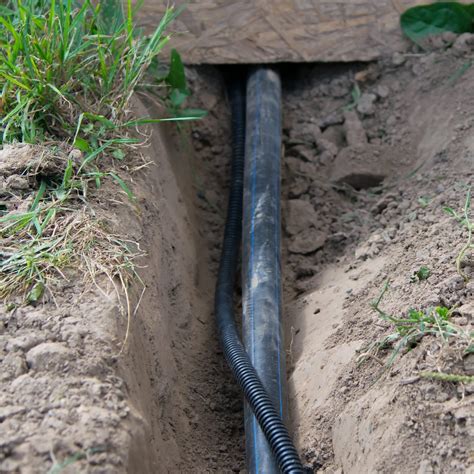

Trenching: Trenches are dug along the marked route to a depth that ensures the cables are below the frost line and protected from surface disturbances. The depth and width of the trench depend on the type and size of the cables.
Cable Laying: The cables are carefully laid in the trench, ensuring they are properly aligned and spaced. This step requires precision to avoid kinks or damage to the cables.
Backfilling: Once the cables are in place, the trench is backfilled with soil or other suitable material. The backfilling process must be done carefully to avoid damaging the cables.
Testing: After installation, the cables are tested to ensure they are functioning correctly and there are no faults or shorts. This includes continuity tests, insulation resistance tests, and high-voltage tests.

🔧 Note: Always follow local regulations and safety guidelines when installing underground electric cables. Proper training and certification are essential for ensuring a safe and reliable installation.

Maintenance of Underground Electric Cables

Maintaining underground electric cables is crucial for ensuring their longevity and reliability. Regular maintenance helps prevent failures and ensures the safety of the electrical system. Key maintenance activities include:

Inspection: Regular visual inspections of the cable routes can help identify any signs of damage or wear. This includes checking for exposed cables, corrosion, or other visible issues.
Testing: Periodic electrical testing is essential for detecting faults or degradation in the cables. This includes insulation resistance tests, partial discharge tests, and high-voltage tests.
Repair and Replacement: Any damaged or degraded cables should be repaired or replaced promptly to prevent further issues. This may involve excavating the cable, repairing the damage, and re-burying it.
Documentation: Keeping detailed records of inspections, tests, and repairs is crucial for tracking the condition of the cables and planning future maintenance activities.

Safety Considerations for Underground Electric Cables

Working with underground electric cables involves several safety considerations to protect both workers and the public. Key safety measures include:

Proper Training: All personnel involved in the installation, maintenance, and repair of underground electric cables should be properly trained and certified.
Personal Protective Equipment (PPE): Workers should use appropriate PPE, including gloves, safety glasses, and protective clothing, to protect against electrical hazards and physical injuries.
Safety Procedures: Following established safety procedures, such as locking out and tagging out (LOTO) equipment, is essential for preventing accidents and ensuring a safe working environment.
Emergency Preparedness: Having an emergency response plan in place is crucial for dealing with any accidents or incidents that may occur during the installation or maintenance of underground electric cables.

🛑 Note: Always prioritize safety when working with underground electric cables. Unauthorized access to cable routes should be restricted to prevent accidents and ensure the integrity of the electrical system.

Common Issues with Underground Electric Cables

Despite their durability, underground electric cables can encounter various issues that affect their performance and reliability. Some common problems include:

Mechanical Damage: Cables can be damaged by excavation activities, soil movement, or other mechanical stresses. This can result in breaks, cuts, or other physical damage to the cables.
Corrosion: Exposure to moisture, chemicals, or other corrosive agents can degrade the insulation and sheathing of the cables, leading to electrical faults and failures.
Thermal Degradation: Overheating due to excessive current or poor ventilation can cause the insulation to degrade, reducing the cable's lifespan and reliability.
Animal Damage: Rodents and other animals can chew through cable insulation, causing shorts and other electrical issues.

Preventive Measures for Underground Electric Cables

Preventive measures are essential for minimizing the risk of issues with underground electric cables. Key preventive actions include:

Proper Installation: Ensuring that cables are installed correctly, with adequate protection and spacing, can help prevent mechanical damage and other issues.
Regular Maintenance: Conducting regular inspections and tests can help identify potential problems before they become serious issues.
Environmental Protection: Using protective coatings and materials can help prevent corrosion and other environmental damage to the cables.
Animal Deterrents: Implementing measures to deter animals, such as using cable guards or repellents, can help prevent animal-related damage to the cables.

🔍 Note: Regular monitoring and maintenance are key to extending the lifespan of underground electric cables and ensuring their reliable performance.

Future Trends in Underground Electric Cable Technology

The technology behind underground electric cables is continually evolving, driven by the need for greater efficiency, reliability, and sustainability. Some emerging trends include:

Advanced Materials: The development of new materials, such as high-temperature superconductors and advanced polymers, is improving the performance and durability of underground electric cables.
Smart Cables: Integration of sensors and communication technologies into cables allows for real-time monitoring and diagnostics, enhancing maintenance and reliability.
Renewable Energy Integration: As the demand for renewable energy grows, underground electric cables are being designed to handle the unique requirements of solar, wind, and other renewable energy sources.
Sustainable Practices: There is a growing focus on sustainable practices in the manufacturing and installation of underground electric cables, including the use of eco-friendly materials and recycling programs.

In conclusion, underground electric cables play a vital role in modern electrical infrastructure, providing reliable power distribution and ensuring safety and efficiency. Understanding the types, materials, installation processes, and maintenance requirements of these cables is essential for anyone involved in electrical engineering or construction. By following best practices and staying informed about emerging technologies, we can ensure the continued reliability and sustainability of underground electric cable systems.
