Underdamped Damping Ratio

Understanding the behavior of dynamic systems is crucial in various fields of engineering and physics. One of the key concepts in this area is the underdamped damping ratio, which plays a significant role in determining how a system responds to external forces or disturbances. This post delves into the intricacies of the underdamped damping ratio, its significance, and how it is applied in real-world scenarios.

Table of Contents

Understanding Damping Ratios

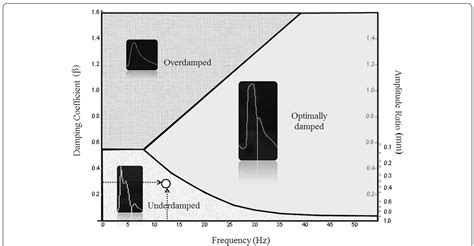

Damping is a mechanism that dissipates energy in a system, typically through friction or other resistive forces. The damping ratio is a dimensionless measure that describes the level of damping in a system relative to the critical damping. There are three main types of damping:

Underdamped: The system oscillates with decreasing amplitude over time.
Critically Damped: The system returns to its equilibrium position in the shortest time without oscillating.
Overdamped: The system returns to its equilibrium position more slowly than the critically damped system.

The damping ratio (ζ) is defined as the ratio of the actual damping coefficient (c) to the critical damping coefficient (c_c). The critical damping coefficient is the value of damping that causes the system to return to equilibrium without oscillating. The formula for the damping ratio is:

📝 Note: The critical damping coefficient (c_c) is given by c_c = 2√(mk), where m is the mass and k is the spring constant.

ζ = c / c_c

The Underdamped Damping Ratio

The underdamped damping ratio is characterized by a damping ratio of less than 1 (ζ < 1). In this scenario, the system exhibits oscillatory behavior, meaning it will oscillate around its equilibrium position with a decreasing amplitude over time. This type of damping is common in many mechanical and electrical systems.

For an underdamped system, the natural frequency (ω_n) and the damped natural frequency (ω_d) are important parameters. The natural frequency is the frequency at which the system would oscillate in the absence of damping, while the damped natural frequency is the frequency at which the system actually oscillates when damping is present. The relationship between these frequencies is given by:

ω_d = ω_n √(1 - ζ^2)

Where ω_n = √(k/m) for a simple harmonic oscillator.

Applications of the Underdamped Damping Ratio

The underdamped damping ratio is widely used in various engineering applications. Some of the key areas where it is applied include:

Mechanical Systems: In mechanical engineering, underdamped systems are common in structures like buildings, bridges, and vehicles. Understanding the underdamped damping ratio helps in designing structures that can withstand vibrations and shocks without excessive oscillations.
Electrical Systems: In electrical engineering, underdamped circuits are used in filters, oscillators, and control systems. The damping ratio is crucial in designing circuits that can respond quickly to input signals without excessive ringing.
Control Systems: In control engineering, the damping ratio is a key parameter in designing controllers that can stabilize dynamic systems. An underdamped system may require feedback control to reduce oscillations and improve stability.

Analyzing Underdamped Systems

To analyze an underdamped system, it is essential to understand its response to different types of inputs. The response of an underdamped system to a step input, for example, can be described by the following equation:

x(t) = A e^(-ζω_n t) cos(ω_d t + φ)

Where:

A is the amplitude of the oscillation.
ζ is the damping ratio.
ω_n is the natural frequency.
ω_d is the damped natural frequency.
φ is the phase angle.

The response of an underdamped system to a sinusoidal input can be analyzed using the frequency response function, which describes how the system's output amplitude and phase vary with the input frequency. The frequency response function for an underdamped system is given by:

H(ω) = 1 / (1 - (ω/ω_n)^2 + 2jζ(ω/ω_n))

Where ω is the input frequency and j is the imaginary unit.

Designing Underdamped Systems

Designing an underdamped system involves selecting appropriate values for the damping ratio and other system parameters to achieve the desired performance. The following steps outline the process of designing an underdamped system:

Define System Requirements: Determine the desired performance characteristics, such as response time, overshoot, and settling time.
Select System Parameters: Choose values for the mass, stiffness, and damping coefficient that satisfy the system requirements.
Calculate the Damping Ratio: Use the formula for the damping ratio to ensure that the system is underdamped (ζ < 1).
Analyze System Response: Use the response equations to analyze the system's behavior under different input conditions.
Optimize System Design: Adjust the system parameters as needed to achieve the desired performance.

📝 Note: The settling time is the time it takes for the system's response to remain within a certain percentage of the final value. For an underdamped system, the settling time is influenced by the damping ratio and the natural frequency.

Example of an Underdamped System

Consider a simple mass-spring-damper system, where a mass (m) is attached to a spring (k) and a damper (c). The system is subjected to an external force (F(t)). The differential equation governing the system's motion is:

m d^2x/dt^2 + c dx/dt + kx = F(t)

For an underdamped system, the damping ratio is less than 1 (ζ < 1). The response of the system to a step input (F(t) = F_0 for t ≥ 0) can be described by the following equation:

x(t) = (F_0/k) [1 - e^(-ζω_n t) (cos(ω_d t) + (ζ/√(1 - ζ^2)) sin(ω_d t))]

Where ω_n = √(k/m) and ω_d = ω_n √(1 - ζ^2).

This equation shows how the system's response depends on the damping ratio, natural frequency, and damped natural frequency. By adjusting these parameters, the system's performance can be optimized to meet the desired requirements.

Underdamped Damping Ratio in Control Systems

In control systems, the underdamped damping ratio is a critical parameter in designing controllers that can stabilize dynamic systems. The damping ratio affects the system's response to disturbances and setpoint changes, as well as its stability margins. The following table summarizes the effects of different damping ratios on the system's response:

Damping Ratio (ζ)	System Response	Stability Margins
ζ < 0.5	Highly oscillatory response with significant overshoot and long settling time.	Low stability margins, susceptible to instability.
0.5 ≤ ζ < 1	Moderately oscillatory response with acceptable overshoot and settling time.	Moderate stability margins, generally stable.
ζ = 1	Critically damped response with no overshoot and fast settling time.	High stability margins, highly stable.
ζ > 1	Overdamped response with slow settling time and no overshoot.	Very high stability margins, highly stable but slow response.

In control system design, the damping ratio is often adjusted using feedback control techniques, such as PID control, to achieve the desired performance and stability. The damping ratio can be tuned by adjusting the controller parameters, such as the proportional, integral, and derivative gains.

Challenges and Limitations

While the underdamped damping ratio is a powerful tool for analyzing and designing dynamic systems, it also has its challenges and limitations. Some of the key challenges include:

Model Uncertainty: The damping ratio is based on a mathematical model of the system, which may not accurately represent the real-world system due to uncertainties and nonlinearities.
Parameter Sensitivity: The system's response can be highly sensitive to changes in the damping ratio and other system parameters, making it difficult to achieve the desired performance.
Disturbances and Noise: Real-world systems are often subjected to disturbances and noise, which can affect the system's response and make it difficult to achieve the desired performance.

To overcome these challenges, advanced control techniques, such as adaptive control, robust control, and model predictive control, can be used to improve the system's performance and robustness.

In summary, the underdamped damping ratio is a fundamental concept in the analysis and design of dynamic systems. It plays a crucial role in determining the system’s response to external forces and disturbances, as well as its stability and performance. By understanding and applying the principles of the underdamped damping ratio, engineers and scientists can design and optimize dynamic systems for a wide range of applications.
