In the realm of industrial and commercial applications, accurate measurement of fluid flow is crucial for efficiency, safety, and cost management. One of the most advanced and reliable tools for this purpose is the Ultrasonic Flow Meter. This device utilizes high-frequency sound waves to measure the velocity of a fluid flowing through a pipe, providing precise and non-intrusive flow measurements. This blog post delves into the workings, benefits, applications, and considerations of Ultrasonic Flow Meters, offering a comprehensive guide for professionals in various industries.
Understanding Ultrasonic Flow Meters
An Ultrasonic Flow Meter operates on the principle of transmitting and receiving ultrasonic waves through a fluid. There are two primary types of Ultrasonic Flow Meters: Doppler and Transit-Time. Each type has its unique method of measuring flow, but both rely on the properties of sound waves to determine fluid velocity.
Doppler Ultrasonic Flow Meters
Doppler Ultrasonic Flow Meters measure the frequency shift of ultrasonic waves reflected off particles or bubbles in the fluid. The frequency shift is directly proportional to the velocity of the fluid. These meters are particularly effective in applications where the fluid contains suspended particles or bubbles, such as wastewater treatment or slurry pipelines.
Transit-Time Ultrasonic Flow Meters
Transit-Time Ultrasonic Flow Meters, on the other hand, measure the time it takes for an ultrasonic wave to travel between two points in the fluid. The difference in travel time upstream and downstream is used to calculate the fluid velocity. These meters are ideal for clean liquids and gases, providing highly accurate measurements with minimal pressure drop.
Benefits of Ultrasonic Flow Meters
The adoption of Ultrasonic Flow Meters offers several advantages over traditional flow measurement methods. Some of the key benefits include:
- Non-Intrusive Measurement: Ultrasonic Flow Meters do not require cutting into the pipe or inserting probes into the fluid, reducing the risk of leaks and contamination.
- High Accuracy: These meters provide precise measurements, often within ±0.5% of the actual flow rate, making them suitable for critical applications.
- Low Maintenance: With no moving parts, Ultrasonic Flow Meters require minimal maintenance, reducing downtime and operational costs.
- Versatility: They can be used in a wide range of applications, from water treatment to oil and gas pipelines, and are suitable for both liquids and gases.
- Cost-Effective: While the initial investment may be higher than some traditional meters, the long-term benefits and reduced maintenance costs make Ultrasonic Flow Meters a cost-effective solution.
Applications of Ultrasonic Flow Meters
Ultrasonic Flow Meters find applications in various industries due to their accuracy, reliability, and versatility. Some of the key sectors benefiting from these meters include:
Water and Wastewater Management
In water treatment plants, Ultrasonic Flow Meters are used to monitor the flow of water and wastewater, ensuring efficient treatment processes and compliance with environmental regulations. They are particularly useful in measuring the flow of liquids with suspended solids, making them ideal for wastewater applications.
Oil and Gas Industry
The oil and gas industry relies heavily on accurate flow measurement for production, transportation, and billing purposes. Ultrasonic Flow Meters are used to measure the flow of crude oil, natural gas, and refined products, providing precise data for operational decisions and regulatory compliance.
Chemical and Petrochemical Industry
In chemical and petrochemical plants, Ultrasonic Flow Meters are employed to monitor the flow of various liquids and gases, ensuring process control and safety. They are suitable for measuring corrosive and hazardous fluids, making them a reliable choice for these industries.
Food and Beverage Industry
The food and beverage industry requires accurate flow measurement to maintain product quality and consistency. Ultrasonic Flow Meters are used to measure the flow of ingredients, beverages, and other liquids, ensuring precise dosing and mixing processes.
Considerations for Selecting an Ultrasonic Flow Meter
When choosing an Ultrasonic Flow Meter, several factors should be considered to ensure the best fit for your application. These include:
Fluid Characteristics
The type of fluid, its viscosity, density, and the presence of suspended particles or bubbles can affect the performance of the meter. Doppler meters are suitable for fluids with particles, while Transit-Time meters are ideal for clean liquids and gases.
Pipe Size and Material
The size and material of the pipe can impact the installation and performance of the meter. Ultrasonic Flow Meters are available for a wide range of pipe sizes, from small diameters to large pipelines. The pipe material should be compatible with the ultrasonic waves to ensure accurate measurements.
🔍 Note: Always consult the manufacturer's specifications to ensure the meter is suitable for your pipe size and material.
Flow Range and Accuracy
The flow range and required accuracy are crucial factors in selecting an Ultrasonic Flow Meter. Ensure the meter can handle the expected flow rates and provides the necessary accuracy for your application.
Environmental Conditions
The operating environment, including temperature, pressure, and potential interference from other equipment, should be considered. Ultrasonic Flow Meters are designed to operate in various conditions, but it's essential to choose a meter that can withstand the specific environmental challenges of your application.
Installation and Maintenance
The ease of installation and maintenance requirements should also be considered. Ultrasonic Flow Meters are generally easy to install, but some applications may require additional considerations, such as pipe preparation or the use of couplers.
🛠️ Note: Proper installation and regular calibration are essential for maintaining the accuracy and reliability of Ultrasonic Flow Meters.
Installation and Calibration of Ultrasonic Flow Meters
Proper installation and calibration are crucial for the accurate and reliable performance of Ultrasonic Flow Meters. Here are the key steps involved in the installation and calibration process:
Site Preparation
Before installation, ensure the site is prepared according to the manufacturer's guidelines. This may include cleaning the pipe, removing any debris, and ensuring the pipe is straight and free of obstructions.

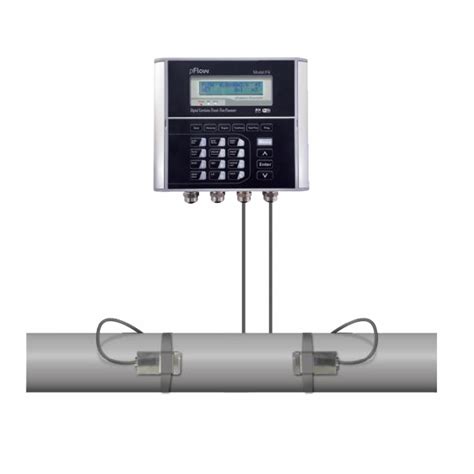

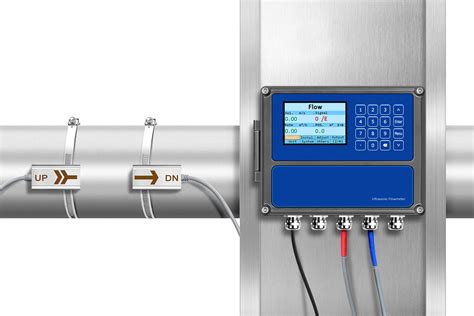

Mounting the Transducers
The transducers should be mounted on the pipe according to the specified spacing and orientation. Ensure the transducers are securely attached and aligned correctly to minimize measurement errors.
Wiring and Connecting
Connect the transducers to the flow meter using the provided cables. Ensure all connections are secure and properly insulated to prevent interference and signal loss.
Calibration
Calibration is essential to ensure the accuracy of the flow meter. Follow the manufacturer's calibration procedure, which may involve using a known flow rate to adjust the meter's settings. Regular calibration is recommended to maintain the meter's accuracy over time.
⚠️ Note: Always follow the manufacturer's guidelines for installation and calibration to ensure the best performance and accuracy of the Ultrasonic Flow Meter.
Maintenance and Troubleshooting
Regular maintenance and prompt troubleshooting are essential for the long-term performance of Ultrasonic Flow Meters. Here are some key maintenance tasks and troubleshooting tips:
Maintenance Tasks
- Regular Inspection: Inspect the transducers and cables for any signs of damage or wear. Replace any damaged components promptly.
- Cleaning: Clean the transducers and pipe surfaces to remove any buildup or debris that could affect measurements.
- Calibration: Perform regular calibration to ensure the meter's accuracy. Follow the manufacturer's recommended calibration intervals.
Troubleshooting Tips
- Signal Loss: If the meter is not providing readings, check the transducer connections and cables for any issues. Ensure the transducers are properly aligned and secured.
- Inaccurate Readings: If the readings are inconsistent or inaccurate, recalibrate the meter and check for any changes in the fluid characteristics or environmental conditions.
- Interference: If there is interference from other equipment, try relocating the meter or using shielding to minimize the interference.
🛠️ Note: Always refer to the manufacturer's troubleshooting guide for specific issues and solutions.
Comparing Ultrasonic Flow Meters with Other Flow Measurement Technologies
While Ultrasonic Flow Meters offer numerous advantages, it's essential to compare them with other flow measurement technologies to make an informed decision. Here's a comparison of Ultrasonic Flow Meters with some commonly used flow measurement devices:
| Technology | Measurement Principle | Advantages | Disadvantages |
|---|---|---|---|
| Differential Pressure | Measures pressure drop across a restriction | Simple, robust, and cost-effective | High pressure drop, limited accuracy, and susceptibility to clogging |
| Electromagnetic | Measures the voltage induced by the fluid's movement in a magnetic field | High accuracy, non-intrusive, and suitable for conductive liquids | Not suitable for non-conductive fluids, sensitive to external magnetic fields |
| Turbine | Measures the rotation of a turbine blade in the fluid flow | High accuracy, suitable for a wide range of fluids | Moving parts, susceptible to wear and tear, and limited to clean fluids |
| Ultrasonic | Measures the velocity of the fluid using ultrasonic waves | Non-intrusive, high accuracy, low maintenance, and versatile | Higher initial cost, sensitive to fluid characteristics and environmental conditions |
Each flow measurement technology has its strengths and weaknesses, and the choice depends on the specific requirements of the application. Ultrasonic Flow Meters stand out for their non-intrusive measurement, high accuracy, and versatility, making them a popular choice for many industries.
In conclusion, Ultrasonic Flow Meters are a reliable and accurate solution for measuring fluid flow in various industrial and commercial applications. Their non-intrusive measurement, high accuracy, and low maintenance requirements make them a cost-effective choice for many industries. By understanding the principles, benefits, applications, and considerations of Ultrasonic Flow Meters, professionals can make informed decisions to optimize their flow measurement processes. Regular maintenance and calibration are essential to ensure the long-term performance and accuracy of these meters, providing reliable data for operational decisions and regulatory compliance.
