Water is a fundamental resource for human survival and development. Understanding the various types of water wells is crucial for ensuring access to clean and reliable water sources. This knowledge is essential for individuals, communities, and industries that depend on groundwater for their daily needs. This post delves into the different types of water wells, their construction methods, advantages, and suitable applications.
Understanding Water Wells
Water wells are structures created to access groundwater, which is water found beneath the Earth’s surface. Groundwater is a vital resource that can be used for drinking, irrigation, and industrial purposes. The construction of a water well involves drilling into the ground to reach an aquifer, a layer of water-bearing rock or sediment. The type of well chosen depends on various factors, including the depth of the water table, the geological conditions, and the intended use of the water.

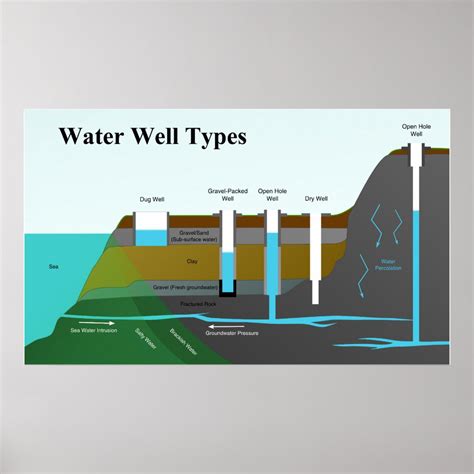

Types of Water Wells
There are several types of water wells, each designed to meet specific needs and conditions. The most common types include:
- Dug Wells
- Driven Wells
- Drilled Wells
- Bored Wells
- Jetted Wells

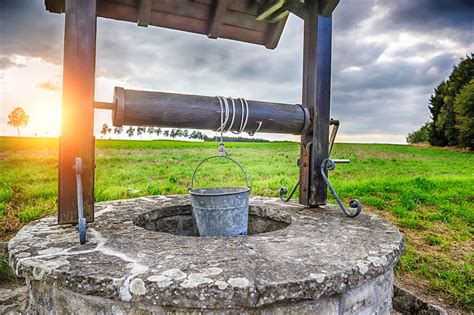

Dug Wells
Dug wells are one of the oldest and simplest types of water wells. They are excavated by hand or with machinery to a depth where groundwater can be accessed. These wells are typically shallow, ranging from 10 to 30 feet deep, and are often lined with materials like brick, tile, or concrete to prevent collapse.
Dug wells are relatively inexpensive to construct but have several drawbacks. They are susceptible to contamination from surface water and can dry up during droughts. Additionally, the shallow depth makes them less reliable for consistent water supply.
Driven Wells
Driven wells are constructed by driving a small-diameter pipe into the ground until it reaches an aquifer. These wells are typically used in areas with shallow water tables and are suitable for individual homes or small communities. The pipe is usually made of steel or PVC and is driven into the ground using a hammer or a hydraulic drive system.
Driven wells are relatively quick and inexpensive to install. However, they are limited in depth and may not be suitable for areas with deep water tables or complex geological conditions.

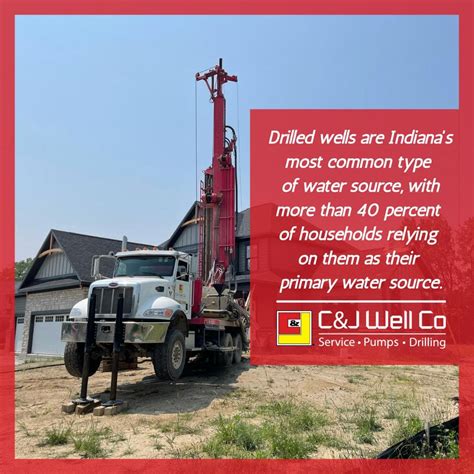

Drilled Wells
Drilled wells are the most common types of water wells used for residential, commercial, and agricultural purposes. They are constructed by drilling a hole into the ground using specialized equipment, such as a drill rig. The depth of a drilled well can vary significantly, ranging from 100 to 1,000 feet or more, depending on the location and the depth of the water table.
Drilled wells are more expensive to construct than dug or driven wells but offer several advantages. They can access deeper aquifers, providing a more reliable water supply. Additionally, they are less susceptible to contamination from surface water and can be equipped with pumps to deliver water to the surface efficiently.
Bored Wells
Bored wells are constructed by boring a hole into the ground using a large auger or a similar tool. These wells are typically used in areas with shallow water tables and are suitable for individual homes or small communities. The borehole is usually lined with a casing to prevent collapse and contamination.
Bored wells are relatively quick and inexpensive to install but are limited in depth and may not be suitable for areas with deep water tables or complex geological conditions.
Jetted Wells
Jetted wells are constructed by using a high-pressure water jet to create a hole in the ground. This method is typically used in areas with soft soil or sand and is suitable for shallow wells. The jet creates a narrow hole, which is then lined with a casing to prevent collapse and contamination.
Jetted wells are relatively quick and inexpensive to install but are limited in depth and may not be suitable for areas with deep water tables or complex geological conditions.
Comparing Types of Water Wells
Choosing the right type of water well depends on several factors, including the depth of the water table, the geological conditions, and the intended use of the water. The following table provides a comparison of the different types of water wells:
| Type of Well | Depth | Construction Method | Advantages | Disadvantages |
|---|---|---|---|---|
| Dug Wells | 10-30 feet | Excavated by hand or machinery | Inexpensive, simple construction | Susceptible to contamination, unreliable water supply |
| Driven Wells | 10-50 feet | Driven pipe into the ground | Quick and inexpensive installation | Limited depth, not suitable for deep water tables |
| Drilled Wells | 100-1,000+ feet | Drilling with specialized equipment | Access to deeper aquifers, reliable water supply | More expensive, requires specialized equipment |
| Bored Wells | 10-50 feet | Boring with a large auger | Quick and inexpensive installation | Limited depth, not suitable for deep water tables |
| Jetted Wells | 10-50 feet | High-pressure water jet | Quick and inexpensive installation | Limited depth, not suitable for deep water tables |
💡 Note: The suitability of a well type depends on local geological conditions and water table depth. Consulting with a professional well driller is recommended to determine the best option for your specific needs.
Maintenance and Care of Water Wells
Maintaining a water well is crucial for ensuring a consistent and safe water supply. Regular maintenance helps prevent contamination, prolongs the lifespan of the well, and ensures efficient water delivery. Key maintenance tasks include:
- Annual inspection by a professional well driller
- Regular testing of water quality
- Cleaning and disinfecting the well
- Checking and maintaining the well pump
- Inspecting the well casing and seal
Neglecting well maintenance can lead to various issues, including contamination, reduced water flow, and costly repairs. Regular upkeep ensures that your well continues to provide a reliable and safe water supply.
Environmental Considerations
Constructing and maintaining water wells have environmental implications that should be considered. Proper well construction and maintenance help protect groundwater resources from contamination and ensure sustainable use. Key environmental considerations include:
- Proper siting and construction to prevent surface water contamination
- Regular water quality testing to monitor for contaminants
- Efficient water use to prevent over-exploitation of aquifers
- Proper disposal of well drilling waste
By adhering to best practices in well construction and maintenance, individuals and communities can help protect groundwater resources and ensure their long-term sustainability.
In summary, understanding the different types of water wells is essential for accessing clean and reliable water sources. Each type of well has its advantages and disadvantages, and the choice depends on various factors, including the depth of the water table, geological conditions, and intended use. Regular maintenance and environmental considerations are crucial for ensuring the longevity and sustainability of water wells. By selecting the appropriate well type and adhering to best practices, individuals and communities can secure a consistent and safe water supply for their needs.
