Types Of Engine

Engines are the heart of any vehicle, powering everything from cars to airplanes and boats. Understanding the different types of engine is crucial for anyone interested in mechanics, automotive engineering, or even for those who simply want to make informed decisions when purchasing a vehicle. This post will delve into the various types of engines, their mechanisms, advantages, and disadvantages, providing a comprehensive guide to help you navigate the complex world of engine technology.

Table of Contents

Internal Combustion Engines

Internal combustion engines (ICE) are the most common types of engine found in vehicles today. These engines work by burning fuel inside the engine to create motion. The combustion process generates heat, which is then converted into mechanical energy.

Four-Stroke Engines

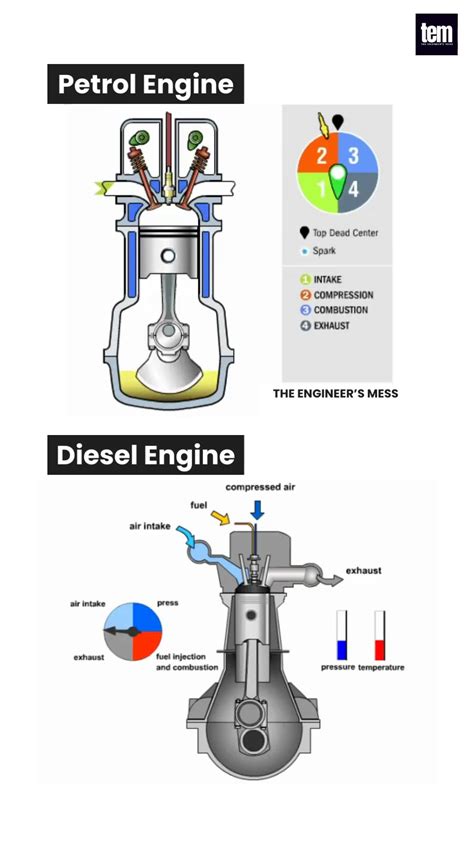

Four-stroke engines are a subtype of internal combustion engines that complete four separate strokes—intake, compression, combustion, and exhaust—during two revolutions of the crankshaft. This process is efficient and widely used in cars, motorcycles, and other vehicles.

Intake Stroke: The intake valve opens, and the piston moves down, allowing a mixture of air and fuel to enter the cylinder.
Compression Stroke: The intake valve closes, and the piston moves up, compressing the air-fuel mixture.
Combustion Stroke: The spark plug ignites the compressed air-fuel mixture, causing a small explosion that pushes the piston down.
Exhaust Stroke: The exhaust valve opens, and the piston moves up, expelling the spent gases from the cylinder.

Four-stroke engines are known for their efficiency and reliability, making them a popular choice for many applications.

Two-Stroke Engines

Two-stroke engines complete the same four processes as four-stroke engines but in only two strokes of the piston during one revolution of the crankshaft. This makes them simpler and lighter but generally less efficient and more polluting.

Compression Stroke: The piston moves up, compressing the air-fuel mixture.
Combustion and Exhaust Stroke: The spark plug ignites the mixture, pushing the piston down and expelling the exhaust gases through the exhaust port.

Two-stroke engines are often used in smaller vehicles like motorcycles, scooters, and some lawn equipment due to their simplicity and power-to-weight ratio.

Diesel Engines

Diesel engines are a type of internal combustion engine that uses the heat of compression to initiate ignition and burn the fuel. They are known for their efficiency and durability, making them a popular choice for trucks, buses, and heavy machinery.

Diesel engines operate on a four-stroke cycle similar to gasoline engines but with key differences in the fuel injection and combustion processes. Instead of using a spark plug to ignite the fuel, diesel engines compress air to a high temperature and then inject fuel directly into the cylinder. The heat of the compressed air ignites the fuel, creating a powerful explosion.

Diesel engines are generally more fuel-efficient than gasoline engines and produce more torque, making them ideal for heavy-duty applications. However, they can be noisier and produce more emissions, particularly nitrogen oxides (NOx) and particulate matter.

Electric Engines

Electric engines, also known as electric motors, convert electrical energy into mechanical motion. They are increasingly popular due to their environmental benefits and efficiency. Electric engines are used in electric vehicles (EVs), hybrid vehicles, and various industrial applications.

Electric engines operate by using an electric current to create a magnetic field, which then interacts with the motor's windings to produce motion. There are several types of electric engines, including:

DC Motors: These motors use direct current (DC) and are simple and efficient but require regular maintenance.
AC Motors: These motors use alternating current (AC) and are more complex but require less maintenance and are more durable.
Brushless DC Motors: These motors use electronic controls instead of brushes, making them more efficient and durable.

Electric engines are known for their high efficiency, low emissions, and quiet operation. However, they require a reliable source of electricity, which can be a challenge in some applications.

Rotary Engines

Rotary engines, also known as Wankel engines, are a unique type of internal combustion engine that uses a rotating triangular rotor instead of pistons. This design allows for a smoother and more compact engine, making it popular in certain high-performance vehicles.

Rotary engines operate by sealing a chamber between the rotor and the engine housing. As the rotor turns, the chamber changes volume, compressing and igniting the fuel-air mixture. The combustion process pushes the rotor, creating motion.

Rotary engines are known for their high power-to-weight ratio and smooth operation. However, they can be less fuel-efficient and more prone to wear and tear compared to traditional piston engines.

Hybrid Engines

Hybrid engines combine the benefits of internal combustion engines and electric engines to create a more efficient and environmentally friendly power source. Hybrid vehicles use both a conventional engine and an electric motor, allowing for improved fuel efficiency and reduced emissions.

There are several types of hybrid systems, including:

Parallel Hybrids: These systems use both the internal combustion engine and the electric motor to power the vehicle simultaneously.
Series Hybrids: These systems use the electric motor to power the vehicle, with the internal combustion engine acting as a generator to recharge the battery.
Plug-In Hybrids: These systems allow the battery to be recharged from an external power source, providing extended electric-only range.

Hybrid engines offer the best of both worlds, combining the range and power of internal combustion engines with the efficiency and environmental benefits of electric engines.

Steam Engines

Steam engines are one of the oldest types of engine, using the power of steam to create motion. They were instrumental in the Industrial Revolution and are still used in some applications today, such as steam locomotives and power plants.

Steam engines operate by heating water to produce steam, which is then directed into a cylinder. The steam pushes a piston, creating motion. The piston is connected to a crankshaft, which converts the linear motion of the piston into rotational motion.

Steam engines are known for their simplicity and reliability but are generally less efficient and more complex to operate compared to modern engine types.

Jet Engines

Jet engines are a type of reaction engine that generates thrust by expelling a fast-moving jet of fluid, typically air. They are used in aircraft and some high-speed vehicles. Jet engines come in several types, including turbojet, turboprop, and turbofan engines.

Turbojet engines are the simplest type, using a compressor to draw in air, a combustion chamber to burn fuel, and a turbine to expel the exhaust gases. Turboprop engines use a turbine to drive a propeller, while turbofan engines use a large fan to increase thrust efficiency.

Jet engines are known for their high power and speed but are generally less fuel-efficient and more complex to maintain compared to other engine types.

Rocket Engines

Rocket engines are a type of reaction engine that generates thrust by expelling a fast-moving jet of fluid, typically a combination of fuel and oxidizer. They are used in spacecraft and some high-speed vehicles. Rocket engines come in several types, including liquid-fuel, solid-fuel, and hybrid engines.

Liquid-fuel rocket engines use a liquid propellant, typically a combination of fuel and oxidizer, which is ignited in a combustion chamber. The exhaust gases are expelled through a nozzle, creating thrust. Solid-fuel rocket engines use a solid propellant, which is ignited and burns to produce thrust. Hybrid rocket engines use a combination of solid and liquid propellants.

Rocket engines are known for their high power and speed but are generally less fuel-efficient and more complex to maintain compared to other engine types.

🔍 Note: The efficiency and environmental impact of different types of engine can vary significantly. It's important to consider factors such as fuel type, emissions, and maintenance requirements when choosing an engine for a specific application.

In conclusion, the world of engines is vast and diverse, with each type offering unique advantages and disadvantages. From the efficiency of diesel engines to the environmental benefits of electric engines, understanding the different types of engine can help you make informed decisions about vehicle selection, maintenance, and performance. Whether you’re a mechanic, an engineer, or a curious enthusiast, exploring the various engine types can provide valuable insights into the mechanics of motion and power.
