Types Of An Earthquake

Earthquakes are one of the most powerful and unpredictable natural phenomena on Earth. They can cause significant damage and loss of life, making it crucial to understand the various types of an earthquake and their characteristics. This knowledge can help in better preparedness and mitigation strategies. Earthquakes are generally classified based on their depth, cause, and the type of seismic waves they produce. Understanding these classifications is essential for seismologists and emergency responders alike.

Understanding Earthquakes

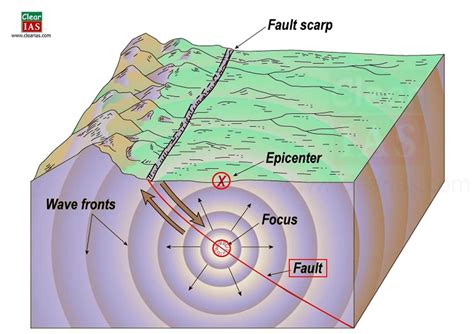

An earthquake is the sudden shaking of the ground caused by the movement of the Earth's crust. This movement releases energy in the form of seismic waves, which travel through the Earth's layers. The point where the earthquake originates is called the hypocenter, and the point on the Earth's surface directly above the hypocenter is called the epicenter.

Types of Earthquakes Based on Depth

Earthquakes can be categorized based on their depth, which is measured from the Earth's surface to the hypocenter. The depth of an earthquake is a crucial factor in determining its impact and the type of damage it can cause.

Shallow Earthquakes

Shallow earthquakes occur at depths of less than 70 kilometers. These are the most common and often the most destructive type of earthquake. Because they are close to the surface, they can cause significant damage to buildings, infrastructure, and human life. Examples of shallow earthquakes include the 1906 San Francisco earthquake and the 2011 Christchurch earthquake.

Intermediate Earthquakes

Intermediate earthquakes occur at depths ranging from 70 to 300 kilometers. These earthquakes are less frequent than shallow earthquakes but can still cause considerable damage. They often occur in subduction zones, where one tectonic plate is pushed beneath another. An example of an intermediate earthquake is the 2011 Tohoku earthquake in Japan, which triggered a devastating tsunami.

Deep Earthquakes

Deep earthquakes occur at depths greater than 300 kilometers. These are the least common type of earthquake and typically cause less damage at the surface. However, they can still be felt over a large area. Deep earthquakes often occur in subduction zones and are associated with the bending and breaking of the subducting plate. An example of a deep earthquake is the 2013 Sea of Okhotsk earthquake, which occurred at a depth of about 600 kilometers.

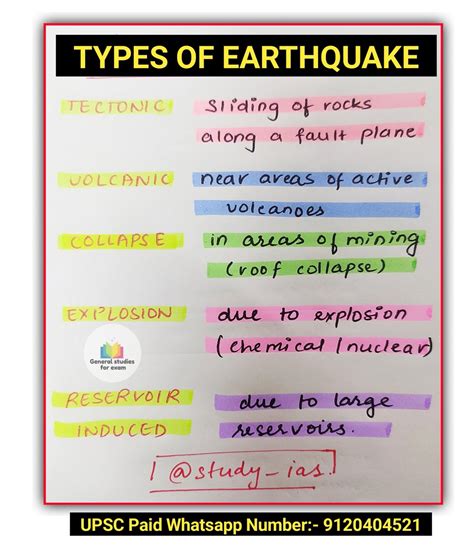

Types of Earthquakes Based on Cause

Earthquakes can also be classified based on their cause. Understanding the cause of an earthquake is essential for predicting future seismic activity and developing effective mitigation strategies.

Tectonic Earthquakes

Tectonic earthquakes are the most common type and are caused by the movement of tectonic plates. These earthquakes occur along faults, which are fractures in the Earth's crust where rocks on either side have moved relative to each other. Tectonic earthquakes can be further classified based on the type of fault movement:

Normal Faults: Occur when the hanging wall moves down relative to the footwall. These are common in areas where the crust is being extended, such as in rift valleys.
Reverse (Thrust) Faults: Occur when the hanging wall moves up relative to the footwall. These are common in areas where the crust is being compressed, such as in mountain ranges.
Strike-Slip Faults: Occur when the blocks on either side of the fault move horizontally relative to each other. These are common in areas where tectonic plates are sliding past each other, such as along the San Andreas Fault.

Volcanic Earthquakes

Volcanic earthquakes are caused by the movement of magma within a volcano. These earthquakes can occur before, during, or after a volcanic eruption. They are often associated with the buildup of pressure within the volcano as magma rises to the surface. Volcanic earthquakes can be further classified based on their cause:

Long-Period Earthquakes: Caused by the resonance of fluids within the volcano.
Volcano-Tectonic Earthquakes: Caused by the fracturing of rock due to the movement of magma.
Explosion Earthquakes: Caused by the sudden release of gas and ash during a volcanic eruption.

Induced Earthquakes

Induced earthquakes are caused by human activities, such as mining, reservoir impoundment, and hydraulic fracturing (fracking). These earthquakes are typically smaller in magnitude but can still cause damage and pose a risk to human life. Examples of induced earthquakes include the 2011 Oklahoma earthquake, which was linked to wastewater injection from oil and gas operations.

Types of Earthquakes Based on Seismic Waves

Earthquakes can also be classified based on the type of seismic waves they produce. Seismic waves are the vibrations that travel through the Earth's layers during an earthquake. Understanding the types of seismic waves is essential for seismologists to study the Earth's interior and predict future seismic activity.

Body Waves

Body waves travel through the interior of the Earth. They are further classified into two types:

P-Waves (Primary Waves): These are the fastest seismic waves and can travel through solids, liquids, and gases. P-waves cause the ground to compress and expand as they pass through.
S-Waves (Secondary Waves): These waves are slower than P-waves and can only travel through solids. S-waves cause the ground to shake from side to side and up and down.

Surface Waves

Surface waves travel along the Earth's surface and are generally slower than body waves. They are further classified into two types:

Love Waves: These waves cause the ground to shake from side to side in a horizontal plane. Love waves are the fastest surface waves and can cause significant damage to buildings and infrastructure.
Rayleigh Waves: These waves cause the ground to roll in a vertical plane, similar to the motion of ocean waves. Rayleigh waves are the slowest seismic waves and can cause the most damage to buildings and infrastructure.

Measuring Earthquakes

Earthquakes are measured using various scales, each providing different information about the earthquake's characteristics. The most commonly used scales are the Richter scale, the moment magnitude scale (MMS), and the modified Mercalli intensity scale (MMI).

Richter Scale

The Richter scale measures the magnitude of an earthquake based on the amplitude of seismic waves recorded by seismographs. The scale is logarithmic, meaning that each whole number increase represents a tenfold increase in the measured amplitude and roughly 31.6 times more energy release.

Moment Magnitude Scale (MMS)

The moment magnitude scale is a more accurate measure of an earthquake's size, especially for large earthquakes. It is based on the total moment release, which is a product of the average slip on the fault, the area of the fault that slipped, and the shear modulus of the rocks involved. The MMS is now the preferred scale for measuring large earthquakes.

Modified Mercalli Intensity Scale (MMI)

The modified Mercalli intensity scale measures the intensity of an earthquake based on its effects on people, buildings, and the environment. The scale ranges from I (not felt) to XII (total destruction). The MMI is useful for understanding the impact of an earthquake on a specific area, but it does not provide information about the earthquake's magnitude.

Earthquake Hazards and Mitigation

Earthquakes pose several hazards, including ground shaking, surface rupture, landslides, liquefaction, and tsunamis. Understanding these hazards is essential for developing effective mitigation strategies to reduce the risk of damage and loss of life.

Ground Shaking

Ground shaking is the most common hazard associated with earthquakes. It can cause buildings to collapse, infrastructure to fail, and people to be injured or killed. The intensity of ground shaking depends on the magnitude of the earthquake, the distance from the epicenter, and the local geology.

Surface Rupture

Surface rupture occurs when the ground breaks along a fault during an earthquake. This can cause significant damage to buildings and infrastructure located near the fault. Surface rupture is most common in areas with active faults, such as along the San Andreas Fault in California.

Landslides

Landslides are a common hazard associated with earthquakes, especially in mountainous or hilly areas. Earthquake-induced landslides can cause significant damage to buildings, infrastructure, and human life. The risk of landslides depends on the slope of the terrain, the type of soil or rock, and the intensity of ground shaking.

Liquefaction

Liquefaction occurs when saturated soil loses its strength and stiffness due to ground shaking, causing it to behave like a liquid. This can cause buildings to sink, foundations to fail, and underground utilities to rupture. Liquefaction is most common in areas with loose, sandy soils near water sources, such as rivers or coastlines.

Tsunamis

Tsunamis are large ocean waves caused by the sudden displacement of water, often due to an underwater earthquake. Tsunamis can travel long distances and cause significant damage to coastal areas. The risk of tsunamis depends on the magnitude and location of the earthquake, as well as the topography of the ocean floor.

To mitigate the risks associated with earthquakes, it is essential to implement effective preparedness and response strategies. These may include:

Building earthquake-resistant structures using reinforced concrete, steel, and other materials that can withstand ground shaking.
Implementing strict building codes and regulations to ensure that new construction meets earthquake safety standards.
Conducting regular earthquake drills and training programs to educate the public about earthquake safety and response procedures.
Developing early warning systems that can detect seismic activity and alert the public to take immediate action.
Improving infrastructure, such as roads, bridges, and utilities, to withstand earthquake damage and ensure rapid recovery.

📝 Note: Earthquake mitigation strategies should be tailored to the specific risks and vulnerabilities of each region. It is essential to work with local communities, governments, and experts to develop effective and sustainable solutions.

Historical Earthquakes and Their Impact

Throughout history, earthquakes have had a significant impact on human societies, causing widespread destruction and loss of life. Studying historical earthquakes can provide valuable insights into the causes and effects of seismic activity and help inform future mitigation strategies.

Some of the most notable historical earthquakes include:

Year	Location	Magnitude	Impact
1556	Shaanxi, China	Estimated 8.0	Approximately 830,000 deaths, making it the deadliest earthquake in history.
1906	San Francisco, USA	7.9	Significant damage to the city, including the destruction of over 28,000 buildings and the deaths of approximately 3,000 people.
1960	Valdivia, Chile	9.5	The most powerful earthquake ever recorded, causing widespread destruction and triggering a massive tsunami that affected coastal areas as far away as Japan and the Philippines.
2004	Indian Ocean	9.1-9.3	Triggered a devastating tsunami that affected coastal areas in Indonesia, Sri Lanka, India, and Thailand, resulting in over 230,000 deaths.
2011	Tohoku, Japan	9.0-9.1	Caused significant damage and triggered a massive tsunami that resulted in the Fukushima Daiichi nuclear disaster, leading to over 15,000 deaths and widespread contamination.

These historical earthquakes serve as a reminder of the power and unpredictability of seismic activity. They also highlight the importance of understanding the various types of an earthquake and implementing effective mitigation strategies to reduce the risk of future disasters.

Earthquakes are a natural and inevitable part of the Earth’s dynamic processes. By studying the different types of an earthquake and their characteristics, we can better understand the risks they pose and develop strategies to mitigate their impact. Whether caused by tectonic activity, volcanic processes, or human interventions, earthquakes require our attention and preparedness. Through continued research, education, and community engagement, we can work towards a future where the devastating effects of earthquakes are minimized, and lives are saved.
