In the realm of wireless communication, the concept of a Tuned Radio Frequency (TRF) receiver holds significant importance. These receivers are designed to selectively tune into specific radio frequencies, allowing for the reception of desired signals while filtering out unwanted interference. Understanding the intricacies of TRF receivers can provide valuable insights into the workings of modern communication systems.
Understanding Tuned Radio Frequency (TRF) Receivers
A Tuned Radio Frequency receiver is a type of radio receiver that operates by amplifying and filtering the incoming radio frequency (RF) signal before it is demodulated. This approach contrasts with other types of receivers, such as superheterodyne receivers, which convert the RF signal to an intermediate frequency (IF) before amplification and filtering.
The basic components of a TRF receiver include:
- An antenna to capture the RF signal
- A tuner to select the desired frequency
- Amplifiers to boost the signal strength
- A detector to extract the audio signal
- An audio amplifier to drive the speaker
How TRF Receivers Work

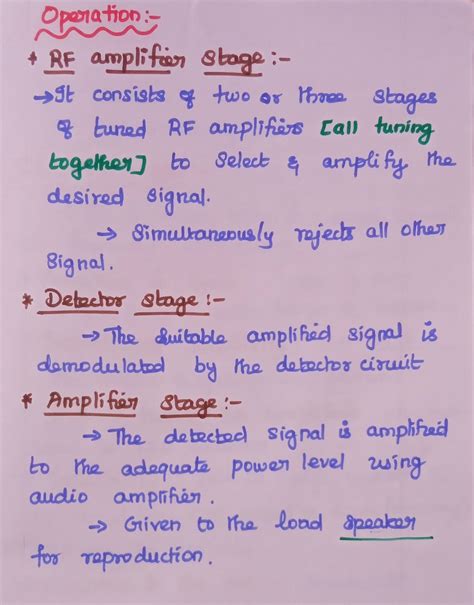

The operation of a TRF receiver can be broken down into several key steps:
1. Signal Reception: The antenna captures the RF signal from the air. This signal is typically very weak and contains a mix of various frequencies.
2. Tuning: The tuner, which consists of a combination of inductors and capacitors, is adjusted to resonate at the desired frequency. This allows the receiver to select the specific frequency of interest while rejecting others.
3. Amplification: The selected RF signal is then amplified using one or more stages of RF amplifiers. These amplifiers boost the signal strength to a level suitable for further processing.
4. Detection: The amplified RF signal is passed through a detector circuit, which extracts the audio signal from the RF carrier. This process is known as demodulation.
5. Audio Amplification: The extracted audio signal is then amplified by an audio amplifier to drive the speaker, producing the final audible output.
💡 Note: The performance of a TRF receiver is highly dependent on the quality of its components, particularly the tuner and amplifiers. High-quality components can significantly improve the receiver's selectivity and sensitivity.
Advantages and Disadvantages of TRF Receivers
TRF receivers offer several advantages, making them suitable for certain applications:
- Simplicity: TRF receivers have a relatively simple circuit design, making them easier to build and understand.
- Cost-Effective: Due to their simplicity, TRF receivers can be more cost-effective to produce compared to more complex receiver designs.
- Wide Frequency Range: TRF receivers can be designed to cover a wide range of frequencies, making them versatile for different applications.
However, TRF receivers also have some drawbacks:
- Limited Selectivity: The selectivity of a TRF receiver is generally lower compared to other types of receivers, such as superheterodyne receivers. This means they may be more susceptible to interference from nearby frequencies.
- Noise and Distortion: TRF receivers can be more prone to noise and distortion, especially at higher frequencies, due to the multiple stages of amplification required.
- Stability Issues: The tuning stability of TRF receivers can be affected by temperature changes and component aging, requiring periodic adjustments.
Applications of TRF Receivers
Despite their limitations, TRF receivers find applications in various fields:
- Amateur Radio: TRF receivers are popular among amateur radio enthusiasts due to their simplicity and cost-effectiveness.
- Educational Purposes: TRF receivers are often used in educational settings to teach the fundamentals of radio communication and circuit design.
- Simple Communication Systems: In applications where cost and simplicity are more critical than performance, TRF receivers can be used in simple communication systems.
Design Considerations for TRF Receivers
When designing a TRF receiver, several factors need to be considered to ensure optimal performance:
- Component Selection: Choosing high-quality components, especially for the tuner and amplifiers, is crucial for achieving good selectivity and sensitivity.
- Circuit Layout: The layout of the circuit should be designed to minimize interference and maximize signal integrity. Proper grounding and shielding techniques are essential.
- Frequency Stability: Ensuring the stability of the tuned frequency is important, especially in applications where the receiver needs to operate over a wide temperature range.
- Noise Reduction: Implementing techniques to reduce noise and distortion, such as using low-noise amplifiers and proper filtering, can significantly improve the receiver's performance.
Here is a simple table outlining the key components and their functions in a TRF receiver:
| Component | Function |
|---|---|
| Antenna | Captures the RF signal from the air |
| Tuner | Selects the desired frequency |
| RF Amplifiers | Boosts the signal strength |
| Detector | Extracts the audio signal from the RF carrier |
| Audio Amplifier | Drives the speaker to produce audible output |
💡 Note: Proper tuning and alignment of the TRF receiver are essential for achieving optimal performance. Regular maintenance and adjustments may be required to ensure consistent operation.
Historical Context and Evolution
The concept of a Tuned Radio Frequency receiver dates back to the early days of radio communication. The first TRF receivers were developed in the early 20th century and were used in various applications, including amateur radio and military communications. Over time, advancements in technology led to the development of more sophisticated receiver designs, such as the superheterodyne receiver, which offered better performance in terms of selectivity and sensitivity.
However, TRF receivers continued to be used in certain applications due to their simplicity and cost-effectiveness. Today, while more advanced receiver designs dominate the market, TRF receivers remain relevant in educational settings and simple communication systems.
In the early days, TRF receivers were often built using discrete components, such as vacuum tubes and capacitors. With the advent of solid-state electronics, TRF receivers began to incorporate transistors and integrated circuits, leading to more compact and reliable designs. This evolution has made TRF receivers more accessible and easier to use, even for beginners in the field of radio communication.
One of the key historical figures in the development of TRF receivers is Reginald Fessenden. Fessenden is credited with inventing the heterodyne principle, which laid the groundwork for the development of superheterodyne receivers. However, his early work also involved the use of TRF receivers, highlighting their importance in the evolution of radio communication technology.
Despite the advancements in receiver technology, the principles behind TRF receivers remain relevant today. Understanding these principles can provide valuable insights into the workings of modern communication systems and the fundamentals of radio engineering.
In conclusion, Tuned Radio Frequency receivers play a significant role in the history and development of radio communication. Their simplicity and cost-effectiveness make them suitable for various applications, from amateur radio to educational purposes. While more advanced receiver designs have emerged, TRF receivers continue to be relevant and valuable in certain contexts. By understanding the principles and design considerations of TRF receivers, one can gain a deeper appreciation for the complexities of radio communication and the evolution of wireless technology.
