Tuned Mass Damper

In the realm of structural engineering and architecture, the stability and safety of tall buildings and bridges are paramount. One of the innovative solutions that have emerged to mitigate the effects of wind, earthquakes, and other dynamic forces is the Tuned Mass Damper (TMD). This device is designed to absorb and dissipate the energy of vibrations, thereby reducing the overall movement and stress on the structure. Understanding the principles, applications, and benefits of a Tuned Mass Damper can provide valuable insights into modern engineering practices.

Table of Contents

Understanding Tuned Mass Dampers

A Tuned Mass Damper is a mechanical system designed to reduce the vibrations of a structure by counteracting the forces that cause it to oscillate. The basic principle behind a TMD is to introduce a secondary mass that moves in opposition to the primary structure's motion. This secondary mass is typically suspended from the structure and is tuned to resonate at the same frequency as the structure's natural frequency. By doing so, the TMD can effectively absorb and dissipate the energy of vibrations, reducing the amplitude of the structure's oscillations.

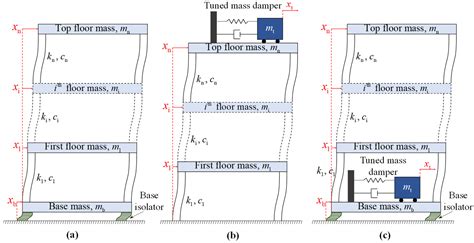

The key components of a TMD include:

A secondary mass, which is usually a large, heavy object.
A spring or damping mechanism that connects the mass to the structure.
A damping system, often consisting of hydraulic dampers or viscous fluids, that absorbs the energy of the vibrations.

How Tuned Mass Dampers Work

The operation of a Tuned Mass Damper relies on the principles of resonance and damping. When a structure, such as a tall building or a bridge, is subjected to dynamic forces like wind or earthquakes, it begins to oscillate at its natural frequency. The TMD, with its secondary mass, is designed to resonate at the same frequency. As the structure moves, the TMD's mass moves in the opposite direction, effectively canceling out the structure's motion.

The damping mechanism within the TMD converts the kinetic energy of the vibrations into heat, which is then dissipated. This process reduces the overall amplitude of the structure's oscillations, making it more stable and less prone to damage from dynamic forces.

Applications of Tuned Mass Dampers

Tuned Mass Dampers are widely used in various engineering applications to enhance the stability and safety of structures. Some of the most common applications include:

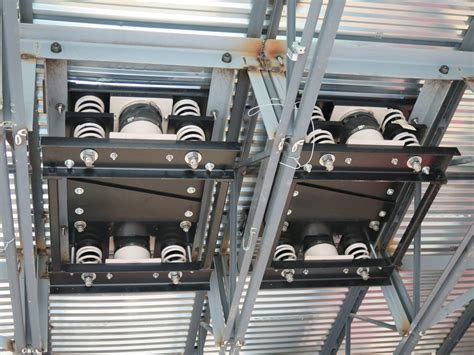

Tall Buildings: Skyscrapers are particularly susceptible to wind-induced vibrations. A Tuned Mass Damper can significantly reduce the swaying motion, making the building more comfortable for occupants and reducing the risk of structural damage.

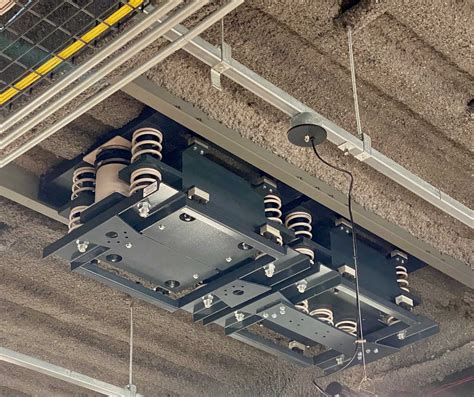

Bridges: Long-span bridges are often subjected to dynamic forces from wind, traffic, and earthquakes. TMDs can help mitigate these forces, ensuring the bridge's stability and longevity.

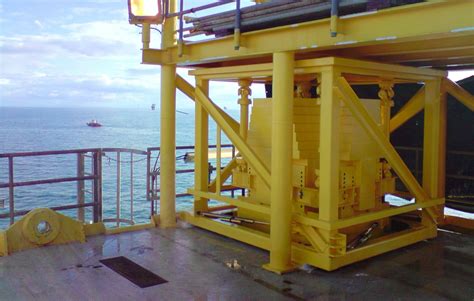

Offshore Platforms: These structures are exposed to harsh marine environments and dynamic forces from waves and currents. TMDs can help stabilize these platforms, reducing the risk of structural failure.
Wind Turbines: The blades of wind turbines are subject to significant vibrations from wind forces. TMDs can help reduce these vibrations, extending the lifespan of the turbine and improving its efficiency.

Benefits of Tuned Mass Dampers

The use of Tuned Mass Dampers offers several benefits, making them a valuable addition to modern engineering projects. Some of the key advantages include:

Improved Structural Stability: By reducing the amplitude of vibrations, TMDs enhance the overall stability of structures, making them more resistant to dynamic forces.
Enhanced Comfort for Occupants: In tall buildings, TMDs can significantly reduce the swaying motion, providing a more comfortable environment for occupants.
Reduced Structural Damage: By absorbing and dissipating the energy of vibrations, TMDs can minimize the risk of structural damage from dynamic forces.
Increased Lifespan of Structures: By mitigating the effects of vibrations, TMDs can extend the lifespan of structures, reducing the need for frequent repairs and maintenance.
Cost-Effective Solution: While the initial installation cost of a TMD can be high, the long-term benefits in terms of reduced maintenance and enhanced structural integrity make it a cost-effective solution.

Design Considerations for Tuned Mass Dampers

Designing an effective Tuned Mass Damper involves several key considerations to ensure optimal performance. These include:

Mass Ratio: The mass of the TMD should be a significant fraction of the structure's mass to effectively counteract the vibrations. A higher mass ratio generally results in better performance.
Natural Frequency: The TMD should be tuned to resonate at the same frequency as the structure's natural frequency. This ensures that the TMD can effectively absorb and dissipate the energy of vibrations.
Damping Ratio: The damping mechanism should be designed to provide the optimal amount of damping to absorb the energy of vibrations without over-damping the system.
Space Constraints: The design of the TMD should consider the available space within the structure. In tall buildings, for example, the TMD is often placed at the top of the structure, where space is limited.
Material Selection: The materials used in the construction of the TMD should be durable and resistant to environmental factors. Common materials include steel, concrete, and high-strength polymers.

Designing a TMD involves complex calculations and simulations to ensure that it meets the specific requirements of the structure. Engineers use advanced software tools to model the behavior of the structure and the TMD under various dynamic forces, allowing them to optimize the design for maximum effectiveness.

🔍 Note: The design of a TMD should be tailored to the specific characteristics of the structure, including its natural frequency, mass, and dynamic response. Consulting with experienced engineers is essential to ensure an effective and reliable design.

Case Studies of Tuned Mass Dampers in Action

Several notable structures around the world have successfully implemented Tuned Mass Dampers to enhance their stability and safety. Some of the most prominent examples include:

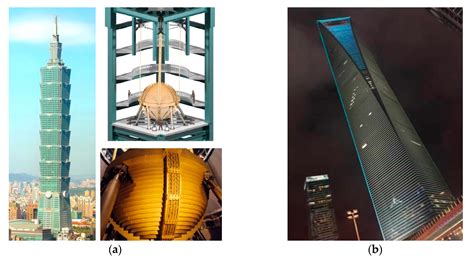

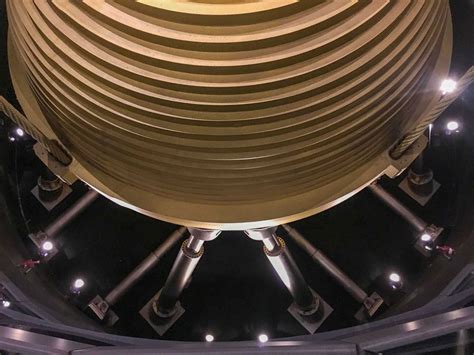

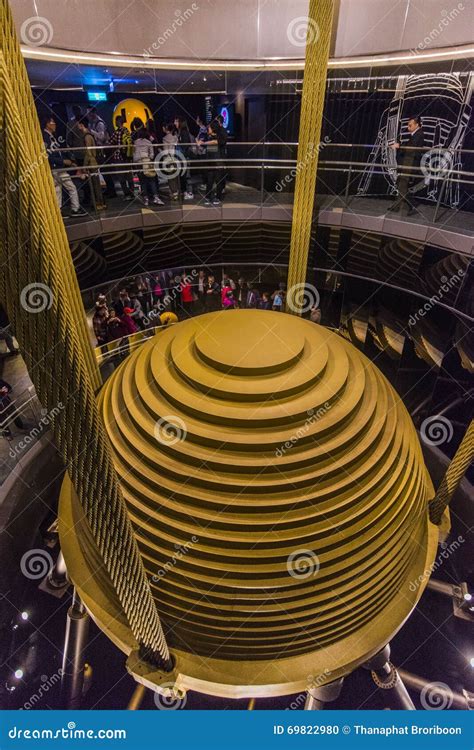

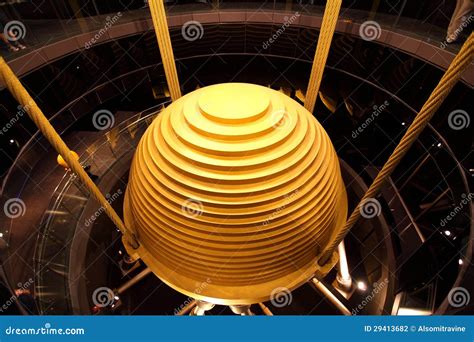

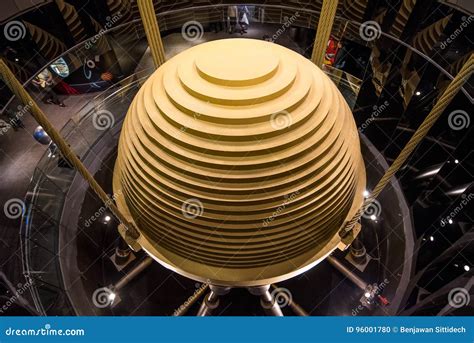

Taipei 101: One of the most famous examples of a TMD in action is the Taipei 101 skyscraper in Taiwan. The building features a massive 660-tonne TMD suspended from the 92nd floor. This TMD effectively reduces the building's swaying motion, making it more stable and comfortable for occupants.
Burj Khalifa: The tallest building in the world, the Burj Khalifa in Dubai, also utilizes a TMD system. The TMD, located at the top of the building, helps to mitigate the effects of wind-induced vibrations, ensuring the building's stability and safety.
Millennium Bridge, London: The Millennium Bridge in London experienced significant vibrations due to the synchronized footsteps of pedestrians. A TMD system was installed to reduce these vibrations, making the bridge safer and more comfortable for pedestrians.

These case studies demonstrate the effectiveness of Tuned Mass Dampers in enhancing the stability and safety of various structures. By absorbing and dissipating the energy of vibrations, TMDs can significantly reduce the risk of structural damage and improve the overall performance of the structure.

Future Trends in Tuned Mass Dampers

The field of Tuned Mass Dampers continues to evolve, with ongoing research and development aimed at improving their effectiveness and efficiency. Some of the emerging trends in TMD technology include:

Advanced Materials: The use of advanced materials, such as composite materials and smart materials, can enhance the performance of TMDs. These materials offer improved strength, durability, and damping properties, making them ideal for TMD applications.

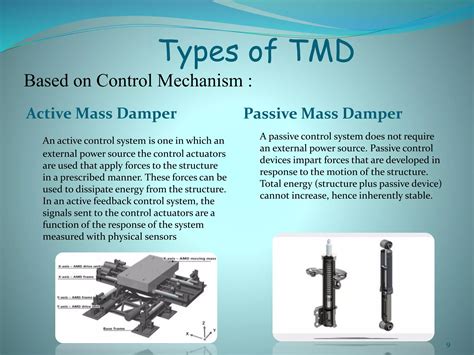

Active Control Systems: Active control systems use sensors and actuators to dynamically adjust the properties of the TMD in real-time. This allows the TMD to respond more effectively to changing dynamic forces, providing enhanced stability and safety.
Multi-Tuned Mass Dampers: In some cases, multiple TMDs can be used in conjunction to provide more comprehensive vibration control. This approach can be particularly effective in structures with complex dynamic responses.
Integrated Design: The integration of TMDs into the overall design of the structure can provide additional benefits. For example, TMDs can be incorporated into the building's facade or other structural elements, enhancing both functionality and aesthetics.

As technology continues to advance, the potential applications and benefits of Tuned Mass Dampers are likely to expand. Engineers and researchers are exploring new ways to leverage TMD technology to enhance the stability and safety of structures, paving the way for innovative solutions in the future.

In conclusion, Tuned Mass Dampers play a crucial role in modern engineering, providing an effective solution for mitigating the effects of dynamic forces on structures. By absorbing and dissipating the energy of vibrations, TMDs enhance the stability, safety, and longevity of buildings, bridges, and other structures. As technology continues to evolve, the potential applications and benefits of TMDs are likely to expand, making them an essential tool in the field of structural engineering. The integration of advanced materials, active control systems, and multi-Tuned Mass Dampers offers exciting possibilities for the future, ensuring that structures remain safe and stable in the face of dynamic forces.
