Truss Rod Adjustment Direction

Mastering the art of guitar maintenance is essential for any musician who wants to keep their instrument in top condition. One of the most critical aspects of guitar maintenance is understanding the truss rod adjustment direction. The truss rod is a crucial component that helps maintain the guitar's neck straightness and overall playability. This guide will walk you through the process of adjusting the truss rod, ensuring your guitar stays in tune and plays smoothly.

Table of Contents

Understanding the Truss Rod

The truss rod is a metal rod that runs through the neck of the guitar, typically from the nut to the heel of the neck. Its primary function is to counteract the tension exerted by the strings, which can cause the neck to bow or warp over time. Proper truss rod adjustment ensures that the neck remains straight, preventing issues like fret buzz and poor intonation.

Tools Needed for Truss Rod Adjustment

Before you begin, gather the necessary tools:

A truss rod wrench (specific to your guitar model)
A feeler gauge or a straight edge
A capo
A tuner

Preparing for Truss Rod Adjustment

Before making any adjustments, it’s important to prepare your guitar properly. Here are the steps to follow:

Tune your guitar to standard tuning.
Place a capo on the first fret.
Check the neck for any visible bowing or warping.

Determining the Truss Rod Adjustment Direction

To determine the truss rod adjustment direction, you need to assess the condition of the neck. Here’s how to do it:

Place a straight edge or feeler gauge along the fretboard, starting from the first fret to the 12th fret.
Check for any gaps between the straight edge and the fretboard. If there is a gap, the neck is bowed.

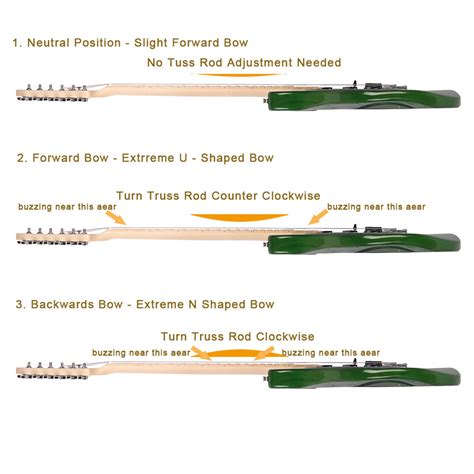

If the gap is at the first fret, the neck is bowed upwards (relief).
If the gap is at the 12th fret, the neck is bowed downwards (back bow).

Adjusting the Truss Rod

Once you have determined the truss rod adjustment direction, you can proceed with the adjustment. Here are the steps:

Locate the truss rod adjustment nut, usually found at the headstock or the heel of the neck.
Insert the truss rod wrench into the adjustment nut.

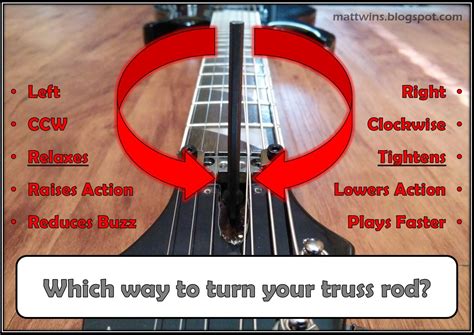

If the neck is bowed upwards (relief), turn the truss rod wrench clockwise to tighten the truss rod. This will straighten the neck.
If the neck is bowed downwards (back bow), turn the truss rod wrench counterclockwise to loosen the truss rod. This will also straighten the neck.

After making an adjustment, allow the guitar to settle for a few minutes before retuning and rechecking the neck. Repeat the process until the neck is straight and the guitar plays smoothly.

🔧 Note: Be cautious when adjusting the truss rod. Over-tightening or over-loosening can cause permanent damage to the neck. Make small adjustments and check the neck frequently.

Checking the Neck After Adjustment

After adjusting the truss rod, it’s crucial to check the neck to ensure it is straight. Here’s how:

Tune the guitar to standard tuning.
Place a capo on the first fret.
Use a straight edge or feeler gauge to check for any gaps between the fretboard and the straight edge.
Ensure there are no gaps at the first or 12th fret.

If the neck is still not straight, repeat the adjustment process until it is.

🔧 Note: It may take several attempts to get the neck perfectly straight. Be patient and make small adjustments each time.

Common Issues and Solutions

During the truss rod adjustment process, you may encounter some common issues. Here are solutions to help you troubleshoot:

Fret Buzz: If you experience fret buzz after adjusting the truss rod, it may indicate that the neck is too straight. Loosen the truss rod slightly to introduce a small amount of relief.
Poor Intonation: If the guitar has poor intonation, it could be due to an improperly adjusted truss rod. Ensure the neck is straight and the strings are properly seated in the nut and bridge.
String Height Issues: If the strings are too high or too low, it may affect playability. Adjust the truss rod to ensure the neck is straight, and then adjust the string height at the bridge and nut.

Maintaining Your Guitar’s Neck

Regular maintenance is key to keeping your guitar’s neck in good condition. Here are some tips:

Check the truss rod periodically, especially if you notice changes in playability.
Keep your guitar in a stable environment with consistent temperature and humidity.
Avoid exposing your guitar to extreme temperatures or direct sunlight.
Use a humidifier in dry climates to prevent the wood from drying out.

By following these maintenance tips, you can extend the life of your guitar and ensure it stays in top playing condition.

🔧 Note: Regularly inspecting and adjusting the truss rod can prevent more significant issues from developing. Make it a part of your routine guitar maintenance.

Final Thoughts

Understanding the truss rod adjustment direction is a fundamental skill for any guitarist. By following the steps outlined in this guide, you can ensure your guitar’s neck remains straight and playable. Regular maintenance and careful adjustments will help you avoid common issues and keep your guitar in optimal condition. With practice, you’ll become proficient in truss rod adjustments, enhancing your overall guitar care routine.
