Understanding the intricacies of molecular geometry is fundamental to grasping the behavior of chemical compounds. One of the most fascinating geometries is the trigonal bipyramidal structure, which is characterized by its unique arrangement of atoms and bonds. This geometry is particularly notable for its trigonal bipyramidal bond angle, which plays a crucial role in determining the properties and reactivity of molecules.
Introduction to Trigonal Bipyramidal Geometry
The trigonal bipyramidal geometry is a molecular shape that consists of five atoms bonded to a central atom. This arrangement can be visualized as a triangular base with two additional atoms positioned above and below the plane of the triangle. The central atom is typically surrounded by five electron pairs, which can be either bonding pairs or lone pairs.
This geometry is commonly observed in molecules with a central atom that has five valence electrons, such as phosphorus in PF5 or sulfur in SF4. The trigonal bipyramidal structure is also seen in transition metal complexes, where the central metal atom is coordinated with five ligands.

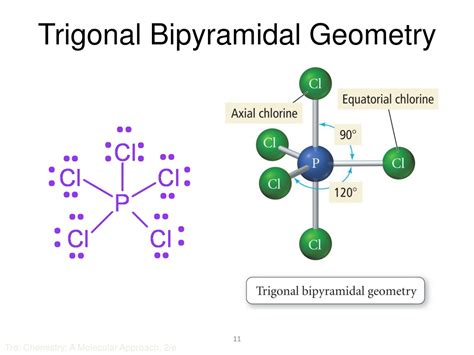

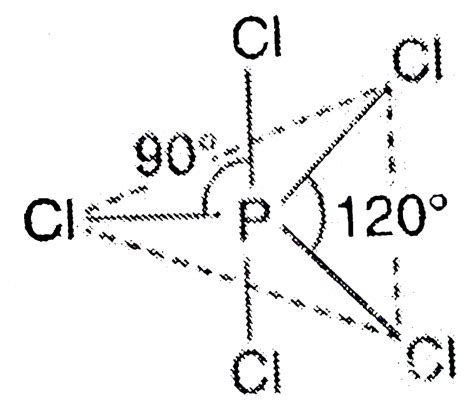

Understanding the Trigonal Bipyramidal Bond Angle
The trigonal bipyramidal bond angle is a critical aspect of this molecular geometry. The bond angles in a trigonal bipyramidal molecule are not all equal, which is a key difference from other geometries like tetrahedral or square planar. The angles can be categorized into two types:
- Equatorial Bond Angles: These are the angles between the bonds in the triangular base. Each equatorial bond angle is 120 degrees.
- Axial-Equatorial Bond Angles: These are the angles between the axial bonds (above and below the plane) and the equatorial bonds. Each axial-equatorial bond angle is 90 degrees.
These specific bond angles are a result of the repulsion between the electron pairs. The equatorial positions are more stable due to the greater distance between the electron pairs, while the axial positions experience more repulsion due to the closer proximity of the electron pairs.
Factors Affecting Trigonal Bipyramidal Bond Angles
Several factors can influence the trigonal bipyramidal bond angle in a molecule. Understanding these factors is essential for predicting the behavior and properties of compounds with this geometry.
- Electronegativity of Ligands: The electronegativity of the ligands bonded to the central atom can affect the bond angles. More electronegative ligands can pull electron density away from the central atom, altering the repulsion between electron pairs and thus changing the bond angles.
- Steric Effects: The size of the ligands can also influence the bond angles. Bulkier ligands can cause greater steric hindrance, leading to distortions in the bond angles to minimize repulsion.
- Lone Pairs: The presence of lone pairs on the central atom can significantly affect the bond angles. Lone pairs occupy more space than bonding pairs due to their higher repulsion, leading to deviations from the ideal bond angles.
Examples of Trigonal Bipyramidal Molecules
Several molecules exhibit trigonal bipyramidal geometry, providing real-world examples of the trigonal bipyramidal bond angle in action. Some notable examples include:
- Phosphorus Pentafluoride (PF5): In PF5, the phosphorus atom is bonded to five fluorine atoms. The molecule adopts a trigonal bipyramidal geometry with equatorial bond angles of 120 degrees and axial-equatorial bond angles of 90 degrees.
- Sulfur Tetrafluoride (SF4): SF4 has a central sulfur atom bonded to four fluorine atoms and one lone pair. The molecule adopts a seesaw geometry, which is a distortion of the trigonal bipyramidal structure due to the presence of the lone pair.
- Chlorine Pentafluoride (ClF5): In ClF5, the chlorine atom is bonded to five fluorine atoms. The molecule adopts a trigonal bipyramidal geometry, but the presence of lone pairs on the chlorine atom can cause distortions in the bond angles.
These examples illustrate how the trigonal bipyramidal bond angle can vary based on the specific molecular composition and the presence of lone pairs.
Applications of Trigonal Bipyramidal Geometry
The trigonal bipyramidal geometry has significant applications in various fields, including chemistry, materials science, and catalysis. Understanding the trigonal bipyramidal bond angle is crucial for designing and optimizing molecular structures for specific applications.
- Catalysis: Many transition metal complexes with trigonal bipyramidal geometry are used as catalysts in industrial processes. The specific bond angles and electronic properties of these complexes make them effective in facilitating chemical reactions.
- Materials Science: The trigonal bipyramidal geometry is observed in various materials, including semiconductors and superconductors. The unique bond angles and electronic structure contribute to the properties of these materials, making them suitable for advanced applications.
- Pharmaceuticals: Some pharmaceutical compounds exhibit trigonal bipyramidal geometry, which can influence their biological activity and interactions with target molecules. Understanding the bond angles and electronic properties is essential for designing effective drugs.
Distortions in Trigonal Bipyramidal Geometry
While the ideal trigonal bipyramidal geometry has specific bond angles, distortions can occur due to various factors. These distortions can significantly affect the properties and reactivity of the molecule.
One common distortion is the presence of lone pairs on the central atom. Lone pairs occupy more space than bonding pairs, leading to greater repulsion and deviations from the ideal bond angles. For example, in SF4, the presence of a lone pair on the sulfur atom causes the molecule to adopt a seesaw geometry, with bond angles that differ from the ideal trigonal bipyramidal angles.
Another factor that can cause distortions is the size and electronegativity of the ligands. Bulkier ligands can cause steric hindrance, leading to distortions in the bond angles to minimize repulsion. Similarly, more electronegative ligands can pull electron density away from the central atom, altering the repulsion between electron pairs and thus changing the bond angles.
Understanding these distortions is crucial for predicting the behavior and properties of molecules with trigonal bipyramidal geometry. By considering the factors that influence the trigonal bipyramidal bond angle, chemists can design and optimize molecular structures for specific applications.
Comparing Trigonal Bipyramidal and Other Geometries
To fully appreciate the unique characteristics of the trigonal bipyramidal geometry, it is helpful to compare it with other common molecular geometries. The following table highlights the key differences between trigonal bipyramidal, tetrahedral, and square planar geometries:
| Geometry | Number of Atoms | Bond Angles | Examples |
|---|---|---|---|
| Trigonal Bipyramidal | 5 | Equatorial: 120 degrees, Axial-Equatorial: 90 degrees | PF5, SF4 |
| Tetrahedral | 4 | 109.5 degrees | CH4, SiH4 |
| Square Planar | 4 | 90 degrees | PtCl42-, Ni(CN)42- |
Each of these geometries has its own unique set of bond angles and electronic properties, which influence the behavior and reactivity of the molecules. Understanding these differences is essential for predicting the properties of compounds and designing molecular structures for specific applications.
📝 Note: The presence of lone pairs on the central atom can cause significant distortions in the bond angles, leading to deviations from the ideal trigonal bipyramidal geometry.
In summary, the trigonal bipyramidal geometry is a fascinating and complex molecular structure characterized by its unique trigonal bipyramidal bond angle. Understanding the factors that influence these bond angles and the distortions that can occur is crucial for predicting the behavior and properties of molecules with this geometry. By considering the specific bond angles and electronic properties, chemists can design and optimize molecular structures for a wide range of applications, from catalysis to materials science and pharmaceuticals.
