Triangle Proportionality Theorem

The Triangle Proportionality Theorem is a fundamental concept in geometry that provides a powerful tool for solving problems involving similar triangles. This theorem, also known as the Thales' theorem, states that if a line is drawn parallel to one side of a triangle, intersecting the other two sides, then it divides those sides proportionally. Understanding and applying this theorem can simplify complex geometric problems and enhance your problem-solving skills.

Table of Contents

Understanding the Triangle Proportionality Theorem

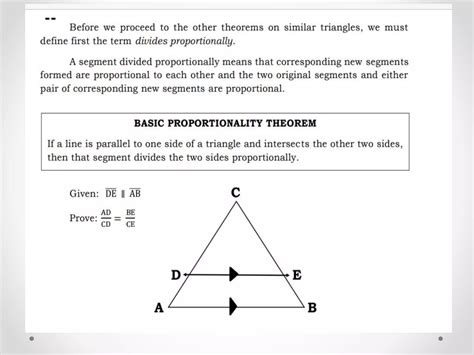

The Triangle Proportionality Theorem can be formally stated as follows: If a line parallel to one side of a triangle intersects the other two sides, then it divides those sides into segments that are proportional to the corresponding sides of the triangle. This theorem is particularly useful in proving the similarity of triangles and in solving problems related to proportions and ratios.

Statement of the Theorem

The theorem can be expressed mathematically as follows:

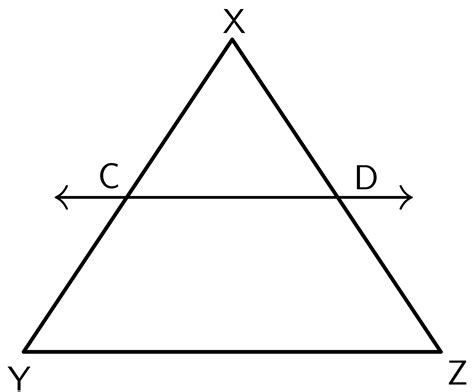

Given a triangle ABC with a line DE parallel to BC, intersecting AB at D and AC at E, the theorem states that:

AD/DB = AE/EC

This relationship holds true because the line DE is parallel to BC, creating two similar triangles: ADE and ABC. The sides of these triangles are proportional, leading to the given ratio.

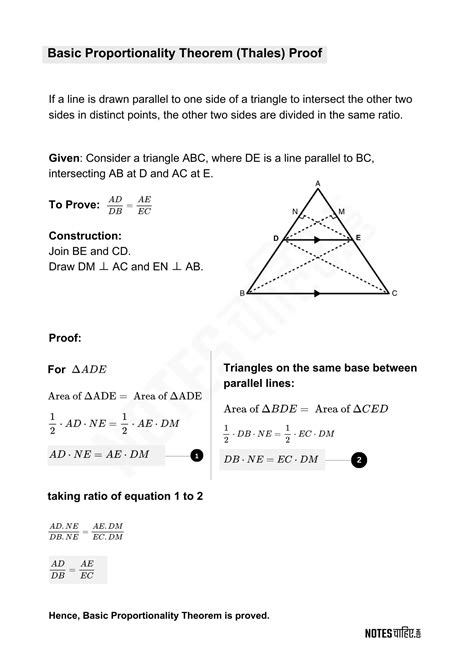

Proof of the Triangle Proportionality Theorem

To prove the Triangle Proportionality Theorem, consider the following steps:

Draw a triangle ABC.
Draw a line DE parallel to BC, intersecting AB at D and AC at E.
Observe that angle ADE is equal to angle ABC and angle AED is equal to angle ACB because they are corresponding angles.
Since angle ADE = angle ABC and angle AED = angle ACB, triangles ADE and ABC are similar by the AA (Angle-Angle) similarity criterion.
In similar triangles, the corresponding sides are proportional. Therefore, AD/DB = AE/EC.

📝 Note: The proof relies on the AA similarity criterion, which states that if two angles of one triangle are equal to two angles of another triangle, then the triangles are similar.

Applications of the Triangle Proportionality Theorem

The Triangle Proportionality Theorem has numerous applications in geometry and real-world problems. Some of the key applications include:

Proving the similarity of triangles.
Solving problems involving proportions and ratios.
Finding the lengths of segments in geometric figures.
Constructing geometric shapes with specific proportions.

Examples and Exercises

To better understand the Triangle Proportionality Theorem, let's go through a few examples and exercises.

Example 1: Finding Proportional Segments

Consider a triangle ABC with AB = 12 units, AC = 15 units, and BC = 9 units. A line DE is drawn parallel to BC, intersecting AB at D and AC at E. If AD = 8 units, find the length of AE.

Using the Triangle Proportionality Theorem, we have:

AD/DB = AE/EC

Since AD = 8 units and AB = 12 units, DB = AB - AD = 12 - 8 = 4 units.

Now, we need to find AE. We know that EC = AC - AE. Let's denote AE as x. Then EC = 15 - x.

Substituting the values into the proportion, we get:

8/4 = x/(15 - x)

Solving for x, we find:

2 = x/(15 - x)

2(15 - x) = x

30 - 2x = x

30 = 3x

x = 10

Therefore, AE = 10 units.

Example 2: Proving Similarity of Triangles

Consider two triangles ABC and DEF with AB = 6 units, BC = 8 units, and AC = 10 units. If DE = 9 units and EF = 12 units, prove that triangles ABC and DEF are similar using the Triangle Proportionality Theorem.

First, we need to find the length of DF. Using the Pythagorean theorem in triangle DEF, we have:

DF^2 = DE^2 + EF^2

DF^2 = 9^2 + 12^2

DF^2 = 81 + 144

DF^2 = 225

DF = 15 units

Now, we check the proportions of the corresponding sides:

AB/DE = 6/9 = 2/3

BC/EF = 8/12 = 2/3

AC/DF = 10/15 = 2/3

Since all corresponding sides are in the same proportion, triangles ABC and DEF are similar by the Triangle Proportionality Theorem.

Advanced Topics and Extensions

The Triangle Proportionality Theorem can be extended to more complex geometric figures and problems. Some advanced topics include:

Using the theorem in three-dimensional geometry.
Applying the theorem to solve problems involving circles and ellipses.
Extending the theorem to polygons and other geometric shapes.

Real-World Applications

The Triangle Proportionality Theorem has practical applications in various fields, including architecture, engineering, and design. Some real-world applications include:

Designing structures with specific proportions.
Creating scale models and blueprints.
Analyzing and solving problems in surveying and mapping.

For example, architects use the theorem to ensure that the proportions of a building's design are accurate and aesthetically pleasing. Engineers apply the theorem to design bridges, roads, and other structures with precise measurements and proportions.

Conclusion

The Triangle Proportionality Theorem is a versatile and powerful tool in geometry that simplifies the solution of complex problems involving similar triangles. By understanding and applying this theorem, you can enhance your problem-solving skills and gain a deeper appreciation for the beauty and elegance of geometric principles. Whether you are a student, a professional, or simply a curious learner, mastering the Triangle Proportionality Theorem will open up new avenues for exploration and discovery in the world of mathematics.
