Understanding the intricacies of a vehicle's cooling system is crucial for maintaining optimal performance, especially when it comes to the transmission. The transmission oil cooler is a vital component that ensures the transmission fluid remains at an appropriate temperature, preventing overheating and potential damage. This post delves into the details of a Transmission Oil Cooler Diagram, explaining its components, functionality, and importance in vehicle maintenance.
Understanding the Transmission Oil Cooler
The transmission oil cooler is designed to regulate the temperature of the transmission fluid. This fluid is essential for lubricating the moving parts within the transmission, ensuring smooth gear shifts, and protecting against wear and tear. Overheating can lead to a variety of issues, including reduced fuel efficiency, transmission failure, and costly repairs. The cooler helps maintain the fluid's temperature within a safe range, thereby extending the lifespan of the transmission.
Components of a Transmission Oil Cooler

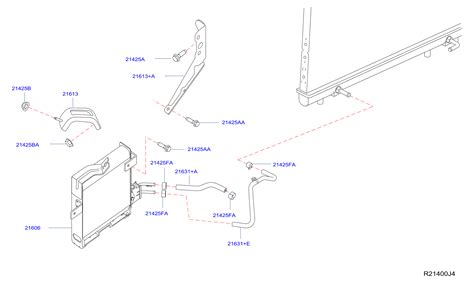

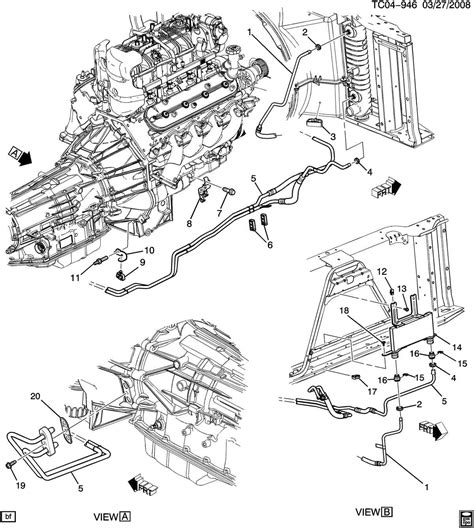

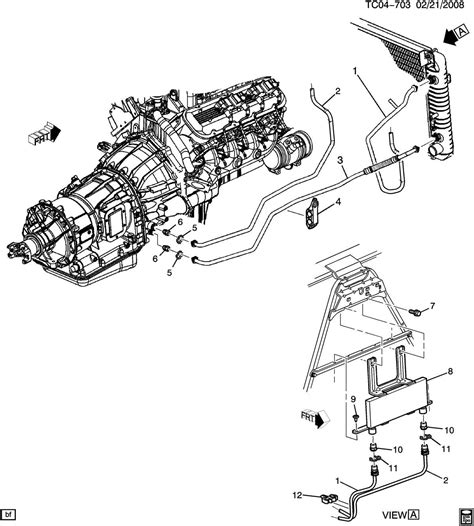

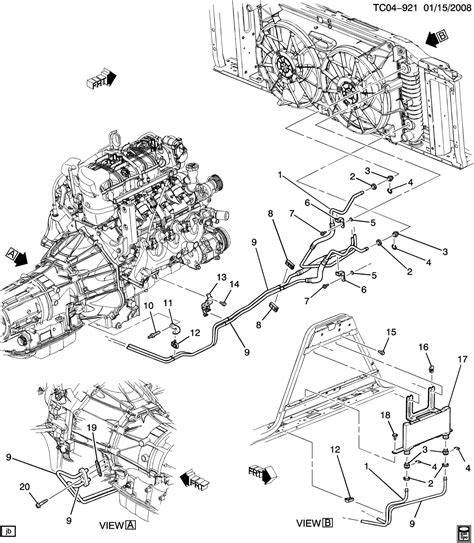

A typical Transmission Oil Cooler Diagram includes several key components:
- Cooling Fins: These are thin metal plates that increase the surface area for heat dissipation. They are often made of aluminum or copper due to their excellent thermal conductivity.
- Cooling Tubes: These tubes carry the transmission fluid through the cooler. They are designed to maximize heat transfer by increasing the contact area between the fluid and the cooling fins.
- Inlet and Outlet Ports: These ports allow the transmission fluid to enter and exit the cooler. The inlet port is where the hot fluid from the transmission enters, and the outlet port is where the cooled fluid returns to the transmission.
- Mounting Brackets: These brackets secure the cooler to the vehicle, ensuring it remains in place and can effectively dissipate heat.
How a Transmission Oil Cooler Works
The operation of a transmission oil cooler is straightforward yet highly effective. Here’s a step-by-step breakdown of the process:
- Heat Absorption: The transmission fluid, which has been heated during operation, flows into the cooler through the inlet port.
- Heat Dissipation: As the fluid passes through the cooling tubes, it comes into contact with the cooling fins. The fins, which are exposed to the ambient air, absorb the heat from the fluid and dissipate it into the surrounding environment.
- Cooling Process: The cooled fluid then exits the cooler through the outlet port and returns to the transmission, ready to lubricate and protect the moving parts.
This continuous cycle ensures that the transmission fluid remains within a safe temperature range, preventing overheating and potential damage.
Types of Transmission Oil Coolers
There are several types of transmission oil coolers, each designed for specific applications and vehicle types. The most common types include:
- Air-Cooled Coolers: These coolers use ambient air to dissipate heat. They are typically mounted in front of the radiator, where they can take advantage of the airflow generated by the vehicle's movement.
- Liquid-Cooled Coolers: These coolers use engine coolant to dissipate heat. They are often integrated into the vehicle's cooling system and are more effective in high-performance vehicles or those operating in extreme conditions.
- Plate and Fin Coolers: These coolers consist of a series of plates and fins that maximize heat transfer. They are compact and efficient, making them suitable for a wide range of vehicles.
Maintenance and Troubleshooting
Regular maintenance of the transmission oil cooler is essential for ensuring its longevity and effectiveness. Here are some key maintenance tips and troubleshooting steps:
- Inspection: Regularly inspect the cooler for signs of damage, such as cracks, leaks, or corrosion. Ensure that the cooling fins are clean and free of debris.
- Fluid Checks: Check the transmission fluid level and condition regularly. Look for signs of contamination, such as a burnt smell or dark color, which may indicate overheating.
- Cleaning: Clean the cooler periodically to remove any dirt or debris that may accumulate on the cooling fins. This can be done using compressed air or a soft brush.
- Replacement: If the cooler is damaged or no longer effective, it may need to be replaced. Consult the vehicle's manual for specific instructions on replacing the cooler.
🛠️ Note: Always ensure the vehicle is cool before performing any maintenance on the transmission oil cooler to avoid burns.
Common Issues and Solutions
Several issues can arise with transmission oil coolers, and understanding these problems can help in timely troubleshooting. Here are some common issues and their solutions:
| Issue | Solution |
|---|---|
| Overheating | Check for clogs in the cooler or low transmission fluid levels. Ensure the cooler is properly mounted and that the cooling fins are clean. |
| Leaks | Inspect the cooler for cracks or damaged seals. Replace any faulty components and ensure proper sealing during installation. |
| Reduced Cooling Efficiency | Clean the cooling fins and ensure there is adequate airflow around the cooler. Check for any obstructions that may be blocking the airflow. |
Benefits of a Transmission Oil Cooler
Installing a transmission oil cooler offers several benefits, including:
- Extended Transmission Lifespan: By maintaining the transmission fluid at an optimal temperature, the cooler helps extend the lifespan of the transmission, reducing the need for costly repairs.
- Improved Performance: A cooler transmission fluid ensures smoother gear shifts and better overall performance, enhancing the driving experience.
- Fuel Efficiency: Overheating can lead to increased fuel consumption. By keeping the transmission fluid cool, the cooler helps maintain fuel efficiency.
- Reduced Wear and Tear: Cool transmission fluid reduces wear and tear on the transmission's moving parts, ensuring they operate smoothly and efficiently.
In summary, a transmission oil cooler is a crucial component for maintaining the health and performance of a vehicle's transmission. Understanding its components, functionality, and maintenance requirements can help ensure optimal performance and longevity.
In conclusion, the Transmission Oil Cooler Diagram provides a clear visual representation of the cooler’s components and their roles in maintaining the transmission fluid’s temperature. Regular inspection, cleaning, and maintenance of the cooler can prevent overheating and potential damage, ensuring the transmission operates smoothly and efficiently. By understanding the importance of the transmission oil cooler and its components, vehicle owners can take proactive steps to maintain their vehicle’s performance and extend its lifespan.
