Trailer Plug Wiring Schematic

Understanding the intricacies of a Trailer Plug Wiring Schematic is crucial for anyone involved in trailer maintenance, repair, or customization. Whether you're a seasoned professional or a DIY enthusiast, having a clear grasp of how to read and interpret these schematics can save you time, money, and frustration. This guide will walk you through the essentials of trailer plug wiring, from basic concepts to advanced troubleshooting techniques.

Table of Contents

Understanding Trailer Plug Wiring Basics

Before diving into the specifics of a Trailer Plug Wiring Schematic, it's important to understand the basic components and functions of trailer wiring. Trailer wiring systems are designed to connect the trailer's electrical components to the towing vehicle's electrical system. This ensures that the trailer's lights, brakes, and other electrical features function correctly while in motion.

The most common types of trailer plugs include:

4-way flat connector
5-way flat connector
6-way round connector
7-way round connector

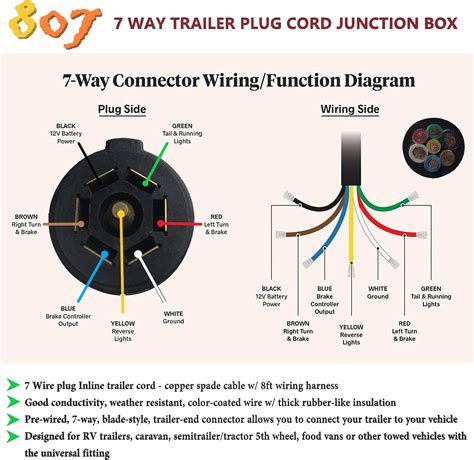

Each of these connectors serves a different purpose and has a specific Trailer Plug Wiring Schematic associated with it. For example, a 4-way flat connector typically includes wires for the tail lights, brake lights, and turn signals, while a 7-way round connector may include additional wires for electric brakes, reverse lights, and a 12-volt power supply.

Reading a Trailer Plug Wiring Schematic

Reading a Trailer Plug Wiring Schematic can seem daunting at first, but with a bit of practice, it becomes straightforward. Here are the key elements to look for:

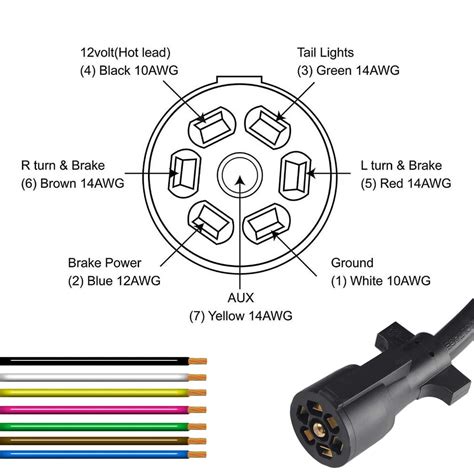

Connector Diagram: This shows the layout of the connector pins or blades, indicating which wire connects to which pin.
Wire Colors: Different wire colors represent different functions. Common colors include brown (tail lights), yellow (left turn signal), green (right turn signal), white (ground), and blue (electric brakes).
Function Labels: Each wire is labeled with its function, such as "tail lights," "brake lights," or "turn signals."

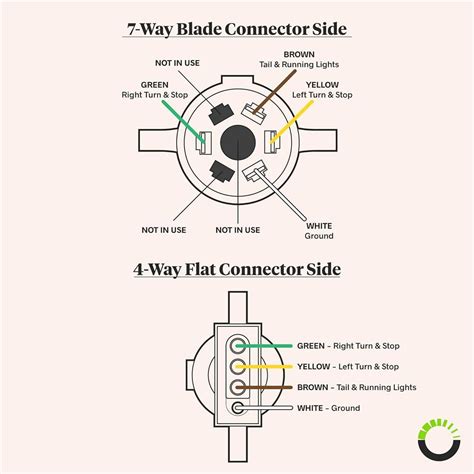

Here is an example of a simple Trailer Plug Wiring Schematic for a 4-way flat connector:

Pin Number	Wire Color	Function
1	Brown	Tail Lights
2	Yellow	Left Turn Signal
3	Green	Right Turn Signal
4	White	Ground

This table provides a clear visual representation of how each wire connects to the corresponding pin on the connector.

Wiring a Trailer Plug

Wiring a trailer plug involves several steps, from gathering the necessary tools and materials to connecting the wires correctly. Here’s a step-by-step guide to help you through the process:

Gathering Tools and Materials

Before you begin, make sure you have the following tools and materials:

Trailer plug connector
Wires (appropriate colors and gauges)
Wire strippers
Crimping tool
Electrical tape or heat shrink tubing
Multimeter
Trailer Plug Wiring Schematic

Preparing the Wires

Start by stripping about ½ inch of insulation from each wire. Be careful not to nick the wire strands. Twist the exposed strands tightly to ensure a good connection.

Connecting the Wires

Using the Trailer Plug Wiring Schematic as a guide, connect each wire to the corresponding pin on the trailer plug. For example, if the schematic shows that the brown wire connects to pin 1, insert the brown wire into pin 1 and secure it with a crimping tool. Repeat this process for all wires.

Once all wires are connected, use electrical tape or heat shrink tubing to insulate the connections and prevent short circuits.

🔧 Note: Always double-check your connections against the Trailer Plug Wiring Schematic to ensure accuracy.

Troubleshooting Common Issues

Even with careful wiring, issues can arise. Here are some common problems and how to troubleshoot them:

Lights Not Working

If the trailer lights are not working, follow these steps:

Check the fuse in the towing vehicle. A blown fuse can prevent power from reaching the trailer.
Inspect the trailer plug and socket for any signs of damage or corrosion.
Use a multimeter to test the continuity of each wire. A break in the wire can prevent the lights from functioning.
Ensure that all connections are secure and properly insulated.

Brake Lights Not Functioning

If the brake lights are not working, consider the following:

Check the brake light switch in the towing vehicle. A faulty switch can prevent the brake lights from activating.
Inspect the wiring for any shorts or breaks, especially around the brake light wires.
Test the brake light bulbs to ensure they are functioning correctly.

Turn Signals Not Working

If the turn signals are not working, follow these steps:

Check the turn signal flasher in the towing vehicle. A faulty flasher can cause the turn signals to malfunction.
Inspect the wiring for any shorts or breaks, especially around the turn signal wires.
Test the turn signal bulbs to ensure they are functioning correctly.

🔧 Note: Always refer to the Trailer Plug Wiring Schematic when troubleshooting to ensure you are checking the correct wires and connections.

Advanced Trailer Wiring Techniques

For those looking to take their trailer wiring skills to the next level, there are several advanced techniques to consider. These techniques can enhance the functionality and reliability of your trailer's electrical system.

Installing a Breaker Box

A breaker box can protect your trailer's electrical system from overloads and short circuits. Installing a breaker box involves:

Choosing the appropriate breaker box for your trailer's electrical needs.
Mounting the breaker box in a convenient and accessible location.
Connecting the trailer's electrical components to the breaker box.
Installing circuit breakers for each electrical component.

Adding a Backup Camera

Installing a backup camera can greatly enhance safety and convenience when towing a trailer. The process involves:

Choosing a compatible backup camera and monitor.
Mounting the camera on the rear of the trailer.
Running the camera's power and video cables to the towing vehicle.
Connecting the camera to the monitor in the towing vehicle.

🔧 Note: Always consult the manufacturer's instructions for specific wiring details and safety precautions.

Safety Precautions

Working with electrical systems can be dangerous if not done correctly. Here are some safety precautions to keep in mind:

Always disconnect the power source before working on the electrical system.
Use insulated tools to prevent accidental shocks.
Avoid working in wet or damp conditions.
Double-check all connections to ensure they are secure and properly insulated.

By following these safety precautions, you can minimize the risk of electrical hazards and ensure a safe and successful wiring project.

Trailer wiring can be a complex task, but with the right knowledge and tools, it can be managed effectively. Understanding the Trailer Plug Wiring Schematic is the first step in ensuring that your trailer's electrical system functions correctly. Whether you're wiring a new trailer or troubleshooting an existing one, this guide provides the essential information you need to get the job done right.

From basic wiring techniques to advanced troubleshooting and safety precautions, this comprehensive guide covers all aspects of trailer plug wiring. By following the steps and tips outlined here, you can ensure that your trailer’s electrical system is reliable and safe, providing peace of mind on the road.
