Electrospinning is a versatile and innovative technique used to create nanofibers from a wide range of materials. This process has gained significant attention in various fields, including tissue engineering, drug delivery, and filtration systems. Traditional Electrospinning Systems have been the backbone of this technology, offering a reliable method for producing high-quality nanofibers. This blog post delves into the intricacies of Traditional Electrospinning Systems, their components, working principles, applications, and advancements.
Understanding Traditional Electrospinning Systems
Traditional Electrospinning Systems are designed to generate nanofibers through the application of a high-voltage electric field. The basic setup consists of a high-voltage power supply, a syringe pump, a needle (or spinneret), and a collector. The process involves the following steps:
- Preparation of the Polymer Solution: The first step is to prepare a polymer solution by dissolving the polymer in a suitable solvent. The concentration and viscosity of the solution are crucial factors that affect the fiber morphology.
- Loading the Solution: The polymer solution is loaded into a syringe, which is connected to a syringe pump. The pump controls the flow rate of the solution.
- Application of High Voltage: A high-voltage power supply is used to apply a strong electric field between the needle and the collector. This electric field causes the polymer solution to form a Taylor cone at the tip of the needle.
- Fiber Formation: As the electric field strength increases, the polymer solution is ejected from the needle and stretched into a thin fiber. The solvent evaporates, leaving behind a solid nanofiber that is collected on a grounded collector.
Components of Traditional Electrospinning Systems
Traditional Electrospinning Systems are composed of several key components, each playing a critical role in the fiber formation process. These components include:
- High-Voltage Power Supply: This component provides the high voltage necessary to create the electric field. The voltage typically ranges from 10 to 30 kV.
- Syringe Pump: The syringe pump controls the flow rate of the polymer solution. It ensures a steady and consistent supply of the solution to the needle.
- Needle (Spinneret): The needle is where the polymer solution is ejected. The diameter of the needle and the applied voltage affect the fiber diameter.
- Collector: The collector is a grounded plate or drum where the nanofibers are deposited. The type of collector can influence the alignment and morphology of the fibers.
Working Principles of Traditional Electrospinning Systems
The working principles of Traditional Electrospinning Systems revolve around the interaction between the electric field and the polymer solution. The key principles include:
- Electric Field Strength: The strength of the electric field is crucial for the formation of the Taylor cone and the subsequent stretching of the polymer solution into fibers.
- Solution Properties: The viscosity, conductivity, and surface tension of the polymer solution affect the fiber morphology. Higher viscosity solutions tend to produce thicker fibers, while lower viscosity solutions result in thinner fibers.
- Flow Rate: The flow rate of the polymer solution, controlled by the syringe pump, influences the fiber diameter. A higher flow rate can lead to thicker fibers, while a lower flow rate results in thinner fibers.
- Distance Between Needle and Collector: The distance between the needle and the collector affects the evaporation of the solvent and the stretching of the fibers. A longer distance allows more time for solvent evaporation, resulting in thinner fibers.
Applications of Traditional Electrospinning Systems
Traditional Electrospinning Systems have a wide range of applications across various industries. Some of the most notable applications include:
- Tissue Engineering: Electrospun nanofibers are used to create scaffolds for tissue engineering. These scaffolds mimic the extracellular matrix and provide a suitable environment for cell growth and differentiation.
- Drug Delivery: Nanofibers can be used as drug carriers, allowing for controlled and sustained release of drugs. This is particularly useful in applications such as wound healing and cancer treatment.
- Filtration Systems: Electrospun nanofibers are used in filtration systems due to their high surface area and porosity. They are effective in removing particles and contaminants from air and water.
- Wound Dressings: Nanofibers can be used to create advanced wound dressings that promote healing and prevent infection. Their high surface area and porosity allow for better absorption of exudates and oxygen permeability.
Advancements in Traditional Electrospinning Systems
While Traditional Electrospinning Systems have been the foundation of nanofiber production, recent advancements have led to the development of more sophisticated and efficient systems. Some of the key advancements include:

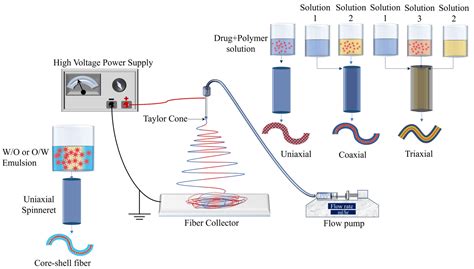

- Coaxial Electrospinning: This technique involves the use of a coaxial needle to produce core-shell nanofibers. It allows for the encapsulation of drugs or other bioactive agents within the fibers.
- Emulsion Electrospinning: This method involves the use of an emulsion as the polymer solution, resulting in the production of porous nanofibers. These fibers have a high surface area and are suitable for applications such as drug delivery and filtration.
- Melt Electrospinning: Unlike traditional solution electrospinning, melt electrospinning uses a molten polymer instead of a polymer solution. This method eliminates the need for solvents and is more environmentally friendly.

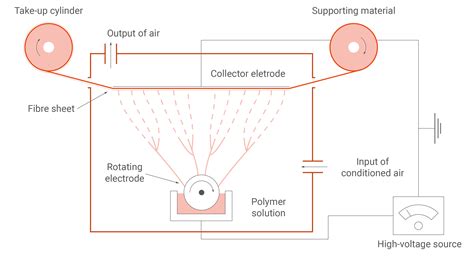

- Needleless Electrospinning: This technique eliminates the need for a needle, using a rotating drum or other methods to produce nanofibers. It allows for higher production rates and is more suitable for industrial-scale applications.
📝 Note: The choice of electrospinning technique depends on the specific application and the desired properties of the nanofibers.
Comparison of Traditional Electrospinning Systems and Advanced Techniques
To better understand the advancements in electrospinning, it is useful to compare Traditional Electrospinning Systems with some of the advanced techniques. The following table provides a comparison of key parameters:
| Parameter | Traditional Electrospinning | Coaxial Electrospinning | Emulsion Electrospinning | Melt Electrospinning | Needleless Electrospinning |
|---|---|---|---|---|---|
| Polymer Form | Solution | Solution (Core-Shell) | Emulsion | Melt | Solution |
| Needle | Required | Coaxial Needle | Required | Not Required | Not Required |
| Production Rate | Moderate | Moderate | Moderate | High | High |
| Applications | Tissue Engineering, Drug Delivery, Filtration | Drug Delivery, Encapsulation | Drug Delivery, Filtration | Filtration, Textiles | Industrial-Scale Production |
Challenges and Future Directions
Despite the numerous advancements, Traditional Electrospinning Systems and their advanced counterparts face several challenges. Some of the key challenges include:
- Scalability: Scaling up the production of nanofibers for industrial applications remains a challenge. Needleless electrospinning and melt electrospinning offer promising solutions, but further research is needed to optimize these techniques.
- Consistency: Ensuring the consistency of fiber morphology and properties is crucial for applications such as tissue engineering and drug delivery. Advanced techniques like coaxial and emulsion electrospinning can help achieve this, but more work is needed to standardize the processes.
- Cost: The cost of electrospinning equipment and materials can be a barrier to widespread adoption. Developing more cost-effective solutions and materials is essential for expanding the use of electrospinning in various industries.
Looking ahead, the future of Traditional Electrospinning Systems and advanced techniques is promising. Researchers are exploring new materials, such as biodegradable polymers and nanocomposites, to enhance the properties of nanofibers. Additionally, the integration of electrospinning with other technologies, such as 3D printing and microfluidics, is opening up new possibilities for creating complex and functional nanostructures.
In conclusion, Traditional Electrospinning Systems have played a pivotal role in the development of nanofiber technology. From their basic components and working principles to their wide range of applications, these systems have paved the way for numerous advancements. As research continues to push the boundaries of electrospinning, we can expect to see even more innovative applications and improvements in the years to come. The ongoing evolution of Traditional Electrospinning Systems and their advanced counterparts will undoubtedly drive progress in fields such as tissue engineering, drug delivery, and filtration, contributing to significant advancements in science and technology.
