Tire Measurement Meaning

Understanding the intricacies of tire measurements is crucial for ensuring safety and performance on the road. The tire measurement meaning encompasses a variety of specifications that dictate how a tire will fit and perform on a vehicle. This guide will delve into the details of tire measurements, explaining what each component means and how to interpret them correctly.

Table of Contents

Understanding Tire Measurement Basics

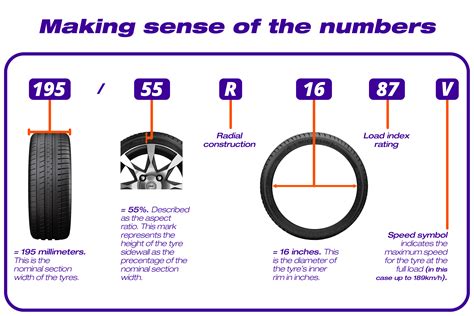

Tire measurements are typically represented by a series of numbers and letters that provide essential information about the tire's size, type, and capabilities. The standard format for tire measurements is as follows:

P215/65R15

Let's break down what each part of this code means:

P: This indicates the tire type. "P" stands for Passenger, meaning the tire is designed for passenger vehicles. Other common types include "LT" for Light Truck and "T" for Temporary Spare.
215: This is the tire width in millimeters, measured from sidewall to sidewall.
65: This is the aspect ratio, which is the height of the tire's sidewall as a percentage of its width. In this case, the sidewall height is 65% of the tire's width.
R: This indicates the tire construction type. "R" stands for Radial, which is the most common type of tire construction.
15: This is the diameter of the wheel in inches.

Decoding Tire Measurement Components

To fully grasp the tire measurement meaning, it's important to understand each component in detail.

Tire Type

The tire type indicator is the first letter in the sequence. It tells you what kind of vehicle the tire is designed for:

P: Passenger vehicles
LT: Light Trucks
T: Temporary Spare Tires

Tire Width

The tire width is the second set of numbers and is measured in millimeters. This measurement is crucial for ensuring the tire fits properly on the wheel and provides the correct amount of contact with the road. A wider tire generally offers better grip and stability, while a narrower tire may provide better fuel efficiency.

Aspect Ratio

The aspect ratio is the third set of numbers and represents the height of the tire's sidewall as a percentage of its width. A lower aspect ratio means a shorter sidewall, which can improve handling and cornering but may result in a harsher ride. A higher aspect ratio means a taller sidewall, which can provide a more comfortable ride but may sacrifice some handling performance.

Construction Type

The construction type indicator is usually "R" for Radial, which is the standard for most modern tires. Radial tires have layers of fabric cords that run at 90-degree angles to the direction of travel, providing better handling and durability compared to older bias-ply tires.

Wheel Diameter

The wheel diameter is the last set of numbers and is measured in inches. This measurement determines the size of the wheel that the tire will fit on. It's important to match the tire's wheel diameter with the vehicle's wheel size to ensure proper fitment and performance.

Additional Tire Measurement Information

Beyond the basic measurements, tires often have additional markings that provide more information about their capabilities and specifications. Some of these include:

Load Index: This number indicates the maximum weight that the tire can safely carry. It is often followed by a speed rating letter.
Speed Rating: This letter indicates the maximum speed at which the tire can safely operate. Common speed ratings include S, T, H, V, W, and Y.
DOT Code: This is a series of numbers and letters that indicate the tire's manufacturing date and other important information.

Interpreting Tire Measurement Examples

Let's look at a few examples to illustrate how to interpret tire measurements:

Example 1: P215/65R15 95H

Tire Type: Passenger
Tire Width: 215 mm
Aspect Ratio: 65%
Construction Type: Radial
Wheel Diameter: 15 inches
Load Index: 95 (690 kg maximum load)
Speed Rating: H (up to 130 mph)

Example 2: LT265/75R16 123/120Q

Tire Type: Light Truck
Tire Width: 265 mm
Aspect Ratio: 75%
Construction Type: Radial
Wheel Diameter: 16 inches
Load Index: 123/120 (front/rear maximum load)
Speed Rating: Q (up to 99 mph)

Example 3: T135/90D16

Tire Type: Temporary Spare
Tire Width: 135 mm
Aspect Ratio: 90%
Construction Type: Diagonal (Bias-Ply)
Wheel Diameter: 16 inches

🔍 Note: Temporary spare tires are not designed for long-term use and should only be used until a proper replacement tire can be installed.

Importance of Correct Tire Measurements

Choosing the correct tire measurements is essential for several reasons:

Safety: Properly sized tires ensure optimal handling, braking, and stability, reducing the risk of accidents.
Performance: Tires that match the vehicle's specifications provide better fuel efficiency, comfort, and overall performance.
Legal Compliance: Using tires that meet the vehicle manufacturer's recommendations ensures compliance with local regulations and warranty requirements.

How to Measure Tire Size

If you need to measure your tire size manually, follow these steps:

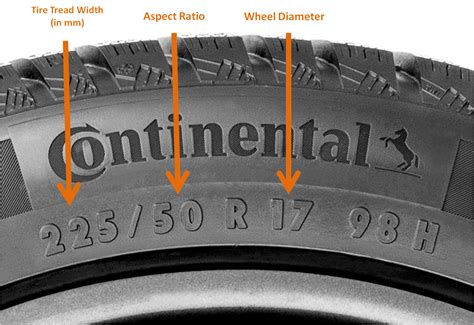

Locate the tire sidewall and find the series of numbers and letters that indicate the tire size.
Identify the tire type, width, aspect ratio, construction type, and wheel diameter as described earlier.
Check the vehicle's owner manual or the tire placard (usually located on the driver's side door jamb) for the recommended tire size.

📏 Note: Always double-check your measurements to ensure accuracy. Incorrect tire sizes can lead to poor performance and safety issues.

Tire Measurement Chart

Here is a table that provides a quick reference for common tire measurements and their meanings:

Tire Measurement	Meaning
P215/65R15	Passenger tire, 215 mm width, 65% aspect ratio, Radial construction, 15-inch wheel diameter
LT265/75R16	Light Truck tire, 265 mm width, 75% aspect ratio, Radial construction, 16-inch wheel diameter
T135/90D16	Temporary Spare tire, 135 mm width, 90% aspect ratio, Diagonal construction, 16-inch wheel diameter
225/50R17	Passenger tire, 225 mm width, 50% aspect ratio, Radial construction, 17-inch wheel diameter
275/45R20	Passenger tire, 275 mm width, 45% aspect ratio, Radial construction, 20-inch wheel diameter

Conclusion

Understanding the tire measurement meaning is vital for ensuring that your vehicle performs safely and efficiently. By decoding the numbers and letters on your tire sidewall, you can make informed decisions about tire replacement and upgrades. Always refer to your vehicle’s owner manual or the tire placard for the recommended tire size, and consult with a professional if you have any doubts. Proper tire measurements contribute to a smoother, safer, and more enjoyable driving experience.
