Understanding the intricacies of Throttle Body Injection (TBI) systems is crucial for anyone involved in automotive maintenance or performance tuning. These systems play a pivotal role in modern engines, ensuring efficient fuel delivery and optimal performance. This blog post delves into the fundamentals of TBI, its components, how it works, and the benefits it offers over traditional carburetor systems.
What is Throttle Body Injection?

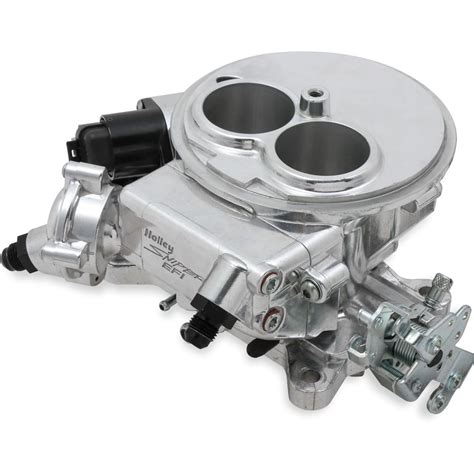

Throttle Body Injection is a fuel delivery system used in internal combustion engines. Unlike carburetors, which mix air and fuel outside the engine, TBI systems inject fuel directly into the throttle body, which is located between the air filter and the intake manifold. This design allows for more precise control over the air-fuel mixture, leading to improved engine performance and fuel efficiency.
Components of a Throttle Body Injection System
The TBI system consists of several key components, each playing a crucial role in its operation:

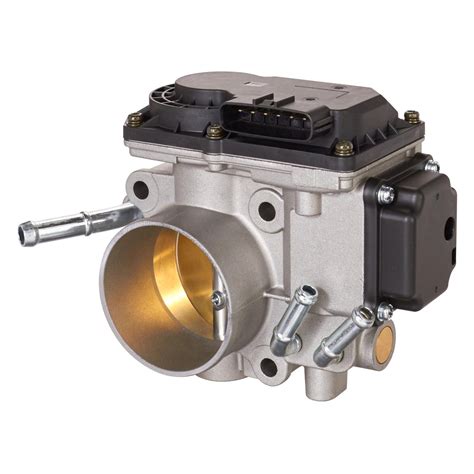

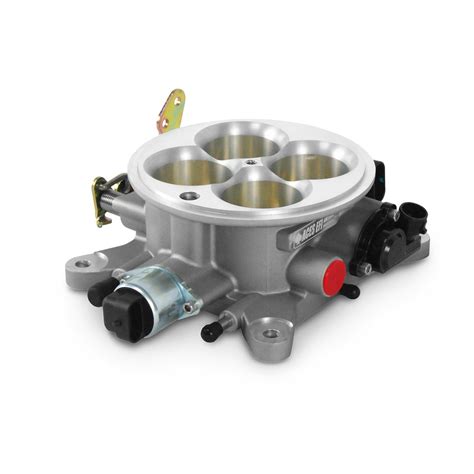

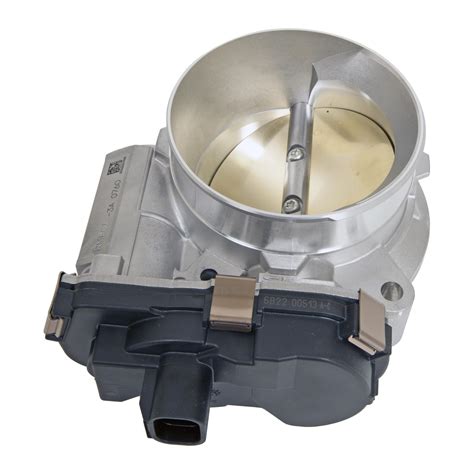

- Throttle Body: This is the main housing that contains the throttle plate, which controls the amount of air entering the engine.

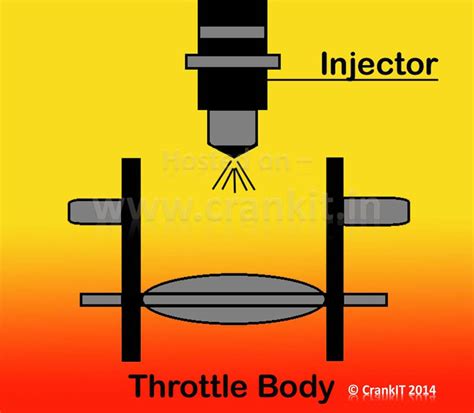

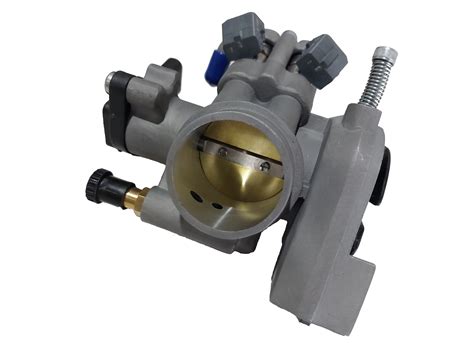

- Fuel Injectors: These are responsible for spraying atomized fuel into the throttle body. The injectors are controlled by the engine’s computer, which determines the exact amount of fuel to be injected based on various sensor inputs.
- Throttle Position Sensor (TPS): This sensor monitors the position of the throttle plate and sends this information to the engine control unit (ECU). The ECU uses this data to adjust the fuel injection and ignition timing.
- Mass Air Flow (MAF) Sensor: This sensor measures the amount of air entering the engine and sends this data to the ECU. The ECU uses this information to calculate the correct air-fuel ratio.
- Engine Control Unit (ECU): The brain of the TBI system, the ECU processes data from various sensors and controls the fuel injectors, ignition timing, and other engine parameters to ensure optimal performance.
How Throttle Body Injection Works
The operation of a Throttle Body Injection system can be broken down into several key steps:
- Air Intake: Air is drawn into the engine through the air filter and passes through the throttle body. The throttle plate controls the amount of air entering the engine based on the driver’s input.
- Air-Fuel Mixture: The ECU calculates the required amount of fuel based on data from the MAF sensor, TPS, and other sensors. It then signals the fuel injectors to spray the precise amount of fuel into the throttle body.
- Combustion: The air-fuel mixture is drawn into the engine’s cylinders, where it is compressed and ignited by the spark plugs. The resulting explosion drives the pistons, generating power.
- Exhaust: The exhaust gases are expelled from the engine through the exhaust system, completing the combustion cycle.
This process is continuously monitored and adjusted by the ECU to ensure the engine operates efficiently under all conditions.
Benefits of Throttle Body Injection
Throttle Body Injection systems offer several advantages over traditional carburetor systems:
- Improved Fuel Efficiency: TBI systems provide more precise control over the air-fuel mixture, leading to better fuel economy.
- Enhanced Performance: The ability to adjust the fuel injection in real-time allows for better engine performance, including smoother acceleration and higher power output.
- Reduced Emissions: More accurate fuel delivery results in cleaner combustion, reducing harmful emissions.
- Reliability: TBI systems are generally more reliable than carburetors, as they have fewer moving parts and are less susceptible to wear and tear.
- Easier Maintenance: With fewer components to maintain, TBI systems are often easier to service and repair.
Maintenance Tips for Throttle Body Injection Systems
To ensure the longevity and optimal performance of your Throttle Body Injection system, follow these maintenance tips:
- Regular Cleaning: Over time, the throttle body can accumulate dirt and debris, which can affect its performance. Regularly clean the throttle body to remove any buildup.
- Inspect Fuel Injectors: Clogged or malfunctioning fuel injectors can lead to poor engine performance. Inspect and clean the injectors as part of your regular maintenance routine.
- Check Sensors: Ensure that all sensors, including the TPS and MAF sensor, are functioning correctly. Faulty sensors can lead to incorrect fuel delivery and engine performance issues.
- Replace Air Filter: A clean air filter is essential for the proper functioning of the TBI system. Replace the air filter at the recommended intervals to maintain optimal air flow.
- Use High-Quality Fuel: Using high-quality fuel can help prevent the buildup of deposits in the fuel injectors and throttle body, ensuring smooth operation.
🛠️ Note: Always consult your vehicle's owner manual for specific maintenance intervals and procedures.
Common Issues with Throttle Body Injection Systems
While Throttle Body Injection systems are generally reliable, they can encounter issues over time. Some common problems include:
- Dirty Throttle Body: A buildup of dirt and debris can cause the throttle body to stick, leading to rough idling and poor performance.
- Faulty Fuel Injectors: Clogged or malfunctioning injectors can result in uneven fuel distribution, causing engine misfires and reduced power.
- Sensor Malfunctions: Issues with the TPS, MAF sensor, or other sensors can lead to incorrect fuel delivery and engine performance problems.
- Vacuum Leaks: Leaks in the vacuum system can cause the engine to run lean, leading to poor performance and increased emissions.
Regular maintenance and prompt attention to any issues can help prevent these problems and ensure the longevity of your TBI system.
Troubleshooting Throttle Body Injection Systems
If you encounter issues with your Throttle Body Injection system, follow these troubleshooting steps:
- Check for Error Codes: Use an OBD-II scanner to check for any error codes stored in the ECU. These codes can provide valuable information about the nature of the problem.
- Inspect the Throttle Body: Look for any signs of dirt or debris buildup. Clean the throttle body if necessary.
- Test Fuel Injectors: Use a fuel injector tester to check for proper operation. Replace any faulty injectors.
- Verify Sensor Functionality: Ensure that all sensors are functioning correctly. Replace any faulty sensors.
- Inspect Vacuum Lines: Check for any leaks or cracks in the vacuum lines. Repair or replace as needed.
If these steps do not resolve the issue, it may be necessary to consult a professional mechanic for further diagnosis and repair.
🛠️ Note: Always follow safety precautions when working on your vehicle, including disconnecting the battery and allowing the engine to cool down before performing any maintenance or repairs.
Upgrading Throttle Body Injection Systems
For those looking to enhance the performance of their vehicle, upgrading the Throttle Body Injection system can be a worthwhile investment. Some popular upgrades include:

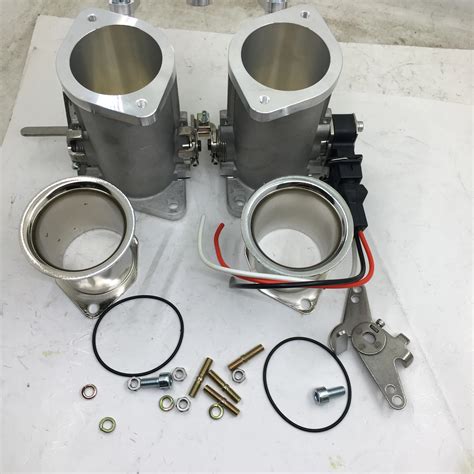

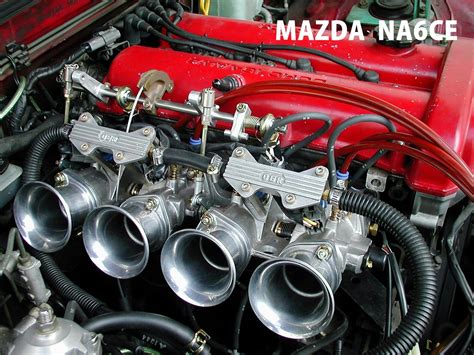

- High-Flow Throttle Body: A high-flow throttle body can increase the amount of air entering the engine, improving performance and throttle response.
- Performance Fuel Injectors: Upgrading to larger or more efficient fuel injectors can provide better fuel delivery, supporting higher engine power output.
- Aftermarket ECU: An aftermarket engine control unit can offer more advanced tuning options, allowing for precise control over fuel injection, ignition timing, and other engine parameters.
- Cold Air Intake: A cold air intake system can improve airflow to the engine, enhancing performance and fuel efficiency.
When considering upgrades, it's important to ensure that all components are compatible with your vehicle and that the modifications are installed correctly to avoid potential issues.
Throttle Body Injection vs. Multi-Port Fuel Injection

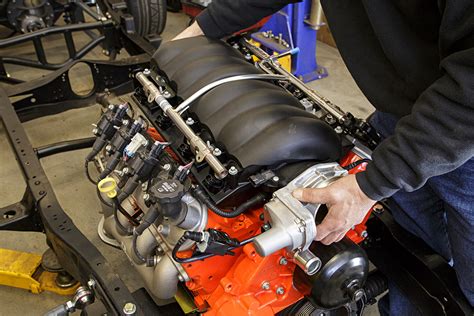

While Throttle Body Injection systems offer several benefits, they are not the only fuel injection option available. Multi-Port Fuel Injection (MPFI) systems, also known as port injection, inject fuel directly into the intake ports of each cylinder. This design provides even more precise control over the air-fuel mixture, leading to further improvements in performance and fuel efficiency.
| Feature | Throttle Body Injection | Multi-Port Fuel Injection |
|---|---|---|
| Fuel Delivery | Fuel is injected into the throttle body | Fuel is injected into the intake ports of each cylinder |
| Air-Fuel Mixture | Less precise control | More precise control |
| Performance | Good performance | Better performance |
| Fuel Efficiency | Improved fuel efficiency | Even better fuel efficiency |
| Emissions | Reduced emissions | Further reduced emissions |
While MPFI systems offer superior performance and efficiency, they are generally more complex and expensive than TBI systems. The choice between the two depends on your specific needs and budget.
In conclusion, Throttle Body Injection systems represent a significant advancement in fuel delivery technology, offering improved performance, fuel efficiency, and reliability over traditional carburetor systems. Understanding the components, operation, and maintenance requirements of TBI systems can help you get the most out of your vehicle and ensure its longevity. Whether you’re a DIY enthusiast or a professional mechanic, familiarity with TBI systems is essential for modern automotive maintenance and performance tuning.
