Threeway Switch Wiring Diagram

Electrical wiring can be a complex task, especially when dealing with advanced components like a three-way switch. A three-way switch allows you to control a single light fixture from two different locations, which is particularly useful in staircases, hallways, and large rooms. Understanding the Threeway Switch Wiring Diagram is crucial for ensuring that the installation is done correctly and safely. This guide will walk you through the process of wiring a three-way switch, including the necessary tools, materials, and step-by-step instructions.

Understanding Three-Way Switches

A three-way switch is designed to work in pairs. Each switch has three terminals: a common terminal and two traveler terminals. The common terminal is typically darker in color and is connected to the power source or the light fixture. The traveler terminals are usually the same color and are used to connect the switches together.

Tools and Materials Needed

Before you begin, gather the following tools and materials:

Three-way switches (2)
Wire strippers
Screwdrivers (flathead and Phillips)
Wire nuts
Electrical tape
Non-contact voltage tester
Wire (¹⁴⁄₂ or ¹²⁄₂ NM-B cable, depending on your circuit)

Safety Precautions

Safety is paramount when working with electrical components. Always follow these precautions:

Turn off the power at the circuit breaker before starting any work.
Use a non-contact voltage tester to ensure the wires are not live.
Wear appropriate safety gear, including gloves and safety glasses.
Avoid working in damp or wet conditions.

Wiring a Three-Way Switch

Follow these steps to wire a three-way switch correctly:

Step 1: Prepare the Wires

Strip about ½ inch of insulation from the ends of all wires. This will make it easier to connect them to the switch terminals.

Step 2: Identify the Wires

Identify the wires in your electrical box. Typically, you will have:

Black wire (hot)
White wire (neutral)
Ground wire (bare or green)
Traveler wires (usually red and black)

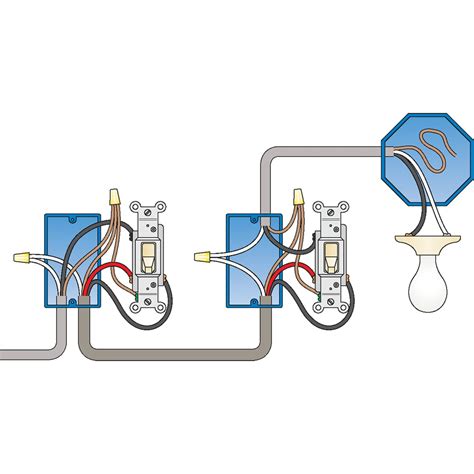

Step 3: Connect the First Switch

Connect the black wire (hot) to the common terminal on the first switch. Connect the traveler wires to the two traveler terminals. The traveler wires will run between the two switches.

Step 4: Connect the Second Switch

Connect the traveler wires to the traveler terminals on the second switch. Connect the black wire (hot) to the common terminal on the second switch. This wire will run to the light fixture.

Step 5: Connect the Neutral and Ground Wires

Connect the white wire (neutral) to the neutral terminal on the light fixture. Connect the ground wire to the ground terminal on both switches and the light fixture.

Step 6: Secure the Wires

Use wire nuts to secure all connections. Wrap each connection with electrical tape for added safety.

Step 7: Test the Switches

Turn the power back on at the circuit breaker and test the switches to ensure they are working correctly. The light should turn on and off from both switch locations.

🔧 Note: Always double-check your connections before turning the power back on. Loose or improperly connected wires can cause shorts or fires.

Troubleshooting Common Issues

If your three-way switches are not working as expected, here are some common issues and solutions:

Switches Not Working

If the switches do not control the light, check the following:

Ensure all wires are properly connected.
Verify that the power is turned on at the circuit breaker.
Check for any loose or damaged wires.

Light Stays On or Off

If the light stays on or off regardless of the switch position, check the following:

Ensure the traveler wires are connected correctly.
Verify that the common terminal is connected to the correct wire.
Check for any shorts or crossed wires.

Switches Not Synchronized

If the switches are not synchronized, check the following:

Ensure the traveler wires are connected to the correct terminals on both switches.
Verify that the common terminal is connected to the correct wire.
Check for any loose or damaged wires.

🔧 Note: If you are still having issues, consult a licensed electrician to ensure the wiring is done correctly and safely.

Advanced Wiring Configurations

In some cases, you may need to wire a three-way switch in a more complex configuration. Here are a few examples:

Four-Way Switch Configuration

A four-way switch allows you to control a light from three or more locations. This configuration requires a four-way switch in addition to the two three-way switches. The wiring diagram for a four-way switch is more complex and involves additional traveler wires.

Smart Switch Configuration

Smart switches offer advanced features like remote control, scheduling, and voice activation. Wiring a smart three-way switch involves following the manufacturer’s instructions, as the wiring diagram may differ from traditional switches. Ensure you have the correct smart switch model and follow the Threeway Switch Wiring Diagram provided by the manufacturer.

Dimmer Switch Configuration

Dimmer switches allow you to adjust the brightness of a light. Wiring a three-way dimmer switch involves connecting the dimmer to the common terminal and the traveler wires. Ensure you have a compatible dimmer switch and follow the manufacturer’s instructions for proper wiring.

🔧 Note: Always consult the manufacturer's instructions for specific wiring diagrams and safety precautions when using advanced switches.

Final Thoughts

Wiring a three-way switch can be a challenging task, but with the right tools, materials, and knowledge, it can be done safely and effectively. Understanding the Threeway Switch Wiring Diagram is essential for ensuring that the installation is done correctly. Always follow safety precautions and consult a licensed electrician if you are unsure about any aspect of the wiring process. With proper wiring, you can enjoy the convenience of controlling a light from two different locations, enhancing the functionality and aesthetics of your space.
