Three Way Light Switch

Understanding the intricacies of a Three Way Light Switch can significantly enhance your home's lighting control and efficiency. This type of switch is commonly used in stairways, hallways, and large rooms where controlling the lights from multiple locations is convenient. This guide will walk you through the basics of a Three Way Light Switch, its components, wiring, and troubleshooting tips.

Table of Contents

What is a Three Way Light Switch?

A Three Way Light Switch is a specialized electrical switch designed to control a single light fixture from two different locations. Unlike standard single-pole switches, a Three Way Light Switch allows you to turn the lights on or off from either switch, providing flexibility and convenience.

Components of a Three Way Light Switch

To understand how a Three Way Light Switch works, it’s essential to familiarize yourself with its key components:

Traveler Wires: These are the wires that carry the electrical current between the two switches.
Common Wire: This wire connects to the light fixture and carries the power to the light.
Ground Wire: This wire provides a safe path for electrical current to flow in case of a short circuit.

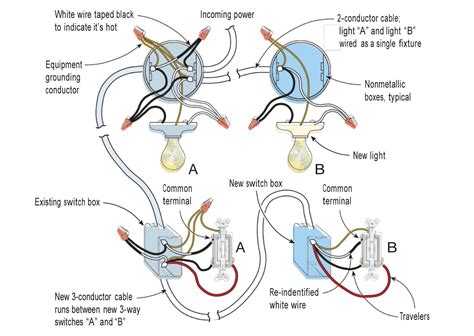

Wiring a Three Way Light Switch

Wiring a Three Way Light Switch can be a bit more complex than wiring a standard switch. Here’s a step-by-step guide to help you through the process:

Materials Needed

Two Three Way Light Switches
Electrical wire (¹⁴⁄₂ or ¹²⁄₂ NM cable)
Wire strippers
Screwdriver
Wire nuts

Step-by-Step Wiring Guide

Follow these steps to wire your Three Way Light Switch system:

Turn Off Power: Before starting, turn off the power to the circuit at the main electrical panel.
Identify Wires: Identify the hot wire (usually black), neutral wire (usually white), and ground wire (usually bare or green).
Connect the First Switch:
- Connect the hot wire to the common terminal on the first switch.
- Connect one traveler wire to one of the traveler terminals.
- Connect the other traveler wire to the other traveler terminal.
- Connect the ground wire to the ground terminal.
Connect the Second Switch:
- Connect the traveler wires to the traveler terminals on the second switch.
- Connect the common terminal to the wire that goes to the light fixture.
- Connect the ground wire to the ground terminal.
Test the Switches: Turn the power back on and test both switches to ensure they control the light fixture correctly.

🔧 Note: Always double-check your connections and ensure the power is off before working with electrical wires.

Troubleshooting Three Way Light Switch Issues

Even with proper installation, issues can arise with a Three Way Light Switch. Here are some common problems and their solutions:

Switches Not Working

If neither switch controls the light, check the following:

Ensure the power is on at the main electrical panel.
Verify that the wires are correctly connected to the switches.
Check for any loose or damaged wires.

Switches Not Coordinating

If the switches do not coordinate correctly, it might be due to:

Incorrect wiring of the traveler wires.
A faulty switch.
A short circuit or ground fault.

Light Flickering

Flickering lights can be caused by:

Loose connections.
Faulty switches.
Overloaded circuit.

🔧 Note: If you are unsure about any electrical work, it is always best to consult a licensed electrician.

Advanced Three Way Light Switch Configurations

For those looking to enhance their lighting control, there are advanced configurations and smart switch options available.

Four Way Switches

A Four Way Switch allows you to control a light from three or more locations. This switch is used in conjunction with two Three Way Light Switches. The wiring is similar but involves an additional set of traveler wires.

Smart Three Way Switches

Smart Three Way Light Switches offer advanced features such as remote control, voice activation, and integration with smart home systems. These switches typically require a neutral wire and can be more complex to install.

Dimmer Switches

Dimmer switches can be used in a Three Way Light Switch configuration to control the brightness of the light. Ensure that the dimmer switch is compatible with the type of light bulb you are using.

Safety Precautions

Working with electrical systems can be dangerous. Always follow these safety precautions:

Turn off the power at the main electrical panel before starting any work.
Use insulated tools to avoid electrical shock.
Ensure all connections are secure and properly insulated.
If you are unsure about any aspect of the installation, consult a licensed electrician.

⚠️ Note: Never work on live electrical circuits. Always prioritize safety.

Common Mistakes to Avoid

When installing a Three Way Light Switch, avoid these common mistakes:

Incorrectly identifying the hot, neutral, and ground wires.
Loose or improperly connected wires.
Using the wrong type of switch for the application.
Not testing the switches after installation.

🛠️ Note: Double-check all connections and test the switches thoroughly before considering the job complete.

Conclusion

Understanding and installing a Three Way Light Switch can greatly enhance the functionality and convenience of your home’s lighting system. By following the steps outlined in this guide, you can ensure a safe and effective installation. Always prioritize safety and consult a professional if you encounter any issues. With the right knowledge and tools, you can successfully manage your lighting from multiple locations, making your home more efficient and user-friendly.
