Understanding thermostat wiring, especially when dealing with a thermostat wiring 2 wires setup, is crucial for anyone looking to install or replace a thermostat. This guide will walk you through the basics of thermostat wiring, focusing on the two-wire configuration, and provide step-by-step instructions for a successful installation.
Understanding Thermostat Wiring Basics
Thermostats control your heating and cooling systems by sending signals to the HVAC equipment. The wiring configuration can vary depending on the type of system and the thermostat model. The most basic setup involves two wires, which are commonly used in older systems or simple heating setups.
Identifying the Wires

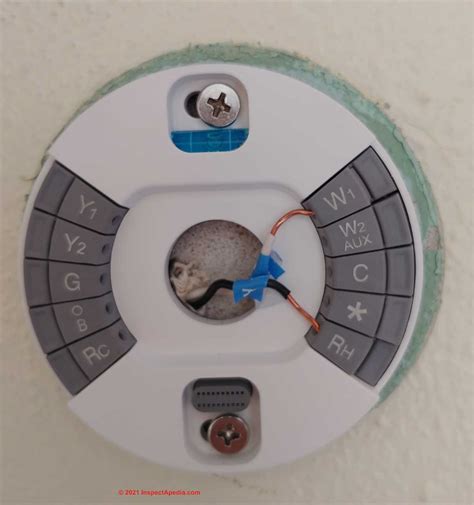

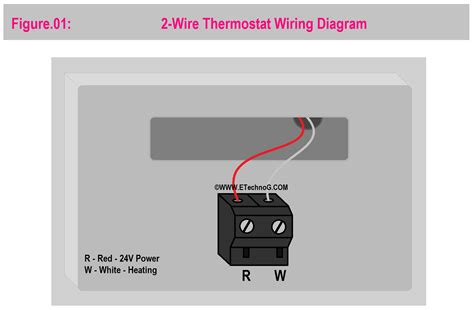

In a thermostat wiring 2 wires setup, the wires are typically labeled as follows:
- Red Wire (R): This is the power wire that provides 24-volt power to the thermostat.
- White Wire (W): This wire is used for the heating function.
These wires are essential for the basic operation of the thermostat. However, some systems may have additional wires for more advanced features like cooling, fan control, and humidity control.
Tools and Materials Needed
Before you begin, gather the following tools and materials:
- Screwdriver
- Wire strippers
- New thermostat
- Old thermostat (for reference)
Step-by-Step Guide to Thermostat Wiring 2 Wires
Follow these steps to wire your thermostat with a two-wire configuration:
Step 1: Turn Off the Power
Before you start, turn off the power to your HVAC system at the circuit breaker. This is a crucial safety step to prevent any electrical accidents.
Step 2: Remove the Old Thermostat
Carefully remove the old thermostat from the wall. You may need to unscrew it from the mounting plate. Take note of how the wires are connected to the old thermostat, as this will serve as a reference for the new installation.
Step 3: Prepare the Wires
Strip about ½ inch of insulation from the ends of the wires using wire strippers. This will expose the bare copper wire needed for connection.

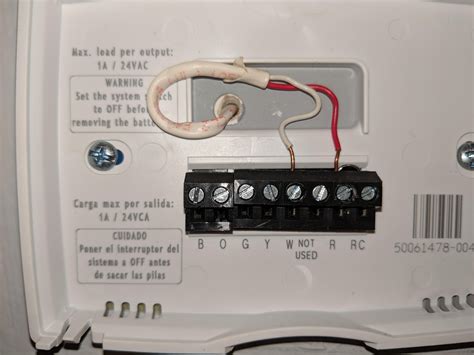

Step 4: Connect the Wires to the New Thermostat
Connect the wires to the corresponding terminals on the new thermostat. The red wire (R) should be connected to the R terminal, and the white wire (W) should be connected to the W terminal. Ensure that the connections are secure and that there are no loose wires.
Step 5: Mount the New Thermostat
Attach the new thermostat to the mounting plate and secure it with screws. Make sure it is level and properly aligned.
Step 6: Turn On the Power
Restore power to the HVAC system at the circuit breaker. The new thermostat should now be operational.
🔧 Note: If your thermostat does not turn on or function correctly, double-check the wire connections and ensure that the power is restored.
Troubleshooting Common Issues
Even with careful installation, issues can arise. Here are some common problems and their solutions:
- Thermostat Not Powering On: Check the wire connections to ensure they are secure. Verify that the power is restored at the circuit breaker.
- Heating Not Working: Ensure that the white wire (W) is properly connected to the W terminal on the thermostat. Check the heating system for any issues.
- Thermostat Displaying Errors: Refer to the thermostat's manual for error codes and troubleshooting steps. Common issues include loose wires or incorrect wiring.

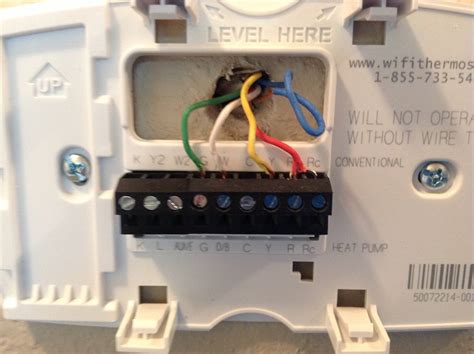

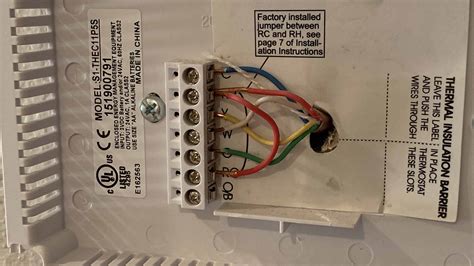

Advanced Wiring Configurations
While a thermostat wiring 2 wires setup is basic, many modern systems require additional wires for advanced features. Here are some common configurations:
| Wire Color | Function |
|---|---|
| Red (R) | Power |
| White (W) | Heating |
| Yellow (Y) | Cooling |
| Green (G) | Fan |
| Blue (C) | Common |
These additional wires allow for more complex control over your HVAC system, including separate heating and cooling functions, fan control, and more.
🔧 Note: If you are upgrading to a smart thermostat, ensure that your system supports the additional wiring required for advanced features.
Safety Precautions
Working with electrical components can be dangerous. Always follow these safety precautions:
- Turn off the power at the circuit breaker before starting any work.
- Use insulated tools to avoid electrical shocks.
- Ensure that all wire connections are secure and properly insulated.
- If you are unsure about any step, consult a professional electrician.
By following these guidelines, you can safely and effectively install or replace a thermostat with a thermostat wiring 2 wires configuration.
In wrapping up, understanding thermostat wiring 2 wires is essential for basic thermostat installations. By following the steps outlined in this guide, you can ensure a successful installation and proper functioning of your thermostat. Always prioritize safety and consult a professional if you encounter any issues. With the right knowledge and tools, you can confidently manage your thermostat wiring needs.
