Thermoplastic Vs Thermoset

When it comes to materials science, the distinction between thermoplastic vs thermoset plastics is crucial for engineers, designers, and manufacturers. Understanding the differences between these two types of polymers can significantly impact the choice of material for various applications, from consumer goods to industrial components. This post delves into the characteristics, advantages, and disadvantages of thermoplastics and thermosets, providing a comprehensive guide to help you make informed decisions.

Table of Contents

Understanding Thermoplastics

Thermoplastics are a type of polymer that can be melted and reshaped multiple times without undergoing significant chemical changes. This property makes them highly versatile and recyclable. Thermoplastics are widely used in various industries due to their ease of processing and ability to be molded into complex shapes.

Characteristics of Thermoplastics

Melting Point: Thermoplastics have a specific melting point at which they become pliable and can be molded into different shapes.
Recyclability: Because they can be melted and reshaped, thermoplastics are highly recyclable, making them an eco-friendly choice.
Mechanical Properties: They generally offer good mechanical strength and durability, making them suitable for a wide range of applications.

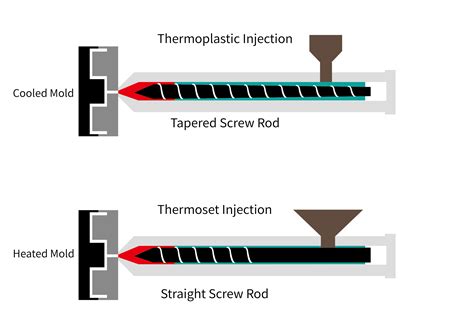

Processing Methods: Common processing methods include injection molding, extrusion, and blow molding.

Advantages of Thermoplastics

Versatility: Thermoplastics can be used in a variety of applications, from packaging to automotive parts.
Cost-Effective: They are generally less expensive to produce and process compared to thermosets.
Recyclability: The ability to recycle thermoplastics reduces waste and environmental impact.
Ease of Processing: Thermoplastics can be easily molded and reshaped, making them ideal for mass production.

Disadvantages of Thermoplastics

Lower Heat Resistance: Thermoplastics may not perform well in high-temperature environments.
Mechanical Strength: While generally strong, they may not match the mechanical properties of thermosets in certain applications.
Chemical Resistance: Some thermoplastics may be susceptible to chemical degradation.

Understanding Thermosets

Thermosets, on the other hand, are polymers that undergo a chemical reaction during the curing process, resulting in a rigid, infusible structure. Once cured, thermosets cannot be melted or reshaped, making them ideal for applications requiring high strength and durability.

Characteristics of Thermosets

Curing Process: Thermosets undergo a chemical reaction during curing, which makes them rigid and infusible.
Mechanical Strength: They offer excellent mechanical strength and durability, making them suitable for high-stress applications.
Heat Resistance: Thermosets generally have high heat resistance, making them ideal for high-temperature environments.
Processing Methods: Common processing methods include compression molding, transfer molding, and casting.

Advantages of Thermosets

High Mechanical Strength: Thermosets offer superior mechanical strength and durability, making them ideal for demanding applications.
Heat Resistance: They can withstand high temperatures without degrading, making them suitable for automotive and aerospace applications.
Chemical Resistance: Thermosets are highly resistant to chemical degradation, making them ideal for harsh environments.
Dimensional Stability: Once cured, thermosets maintain their shape and dimensions, ensuring consistent performance.

Disadvantages of Thermosets

Non-Recyclable: Thermosets cannot be melted and reshaped, making them non-recyclable and less eco-friendly.
Processing Complexity: The curing process can be complex and time-consuming, increasing production costs.
Brittleness: Some thermosets may be brittle, making them susceptible to cracking under impact.

Thermoplastic Vs Thermoset: A Comparative Analysis

To better understand the differences between thermoplastics and thermosets, let's compare them across several key parameters.

Parameter	Thermoplastics	Thermosets
Melting Point	Have a specific melting point	Do not melt once cured
Recyclability	Highly recyclable	Non-recyclable
Mechanical Strength	Good mechanical strength	Superior mechanical strength
Heat Resistance	Lower heat resistance	High heat resistance
Processing Methods	Injection molding, extrusion, blow molding	Compression molding, transfer molding, casting
Chemical Resistance	Varies by type	High chemical resistance
Dimensional Stability	Good dimensional stability	Excellent dimensional stability

📝 Note: The choice between thermoplastics and thermosets depends on the specific requirements of the application. For example, if recyclability and ease of processing are important, thermoplastics may be the better choice. However, if high mechanical strength and heat resistance are crucial, thermosets may be more suitable.

Applications of Thermoplastics

Thermoplastics are used in a wide range of applications due to their versatility and ease of processing. Some common applications include:

Packaging: Thermoplastics are widely used in packaging materials, such as bottles, containers, and films.
Automotive: They are used in various automotive components, including dashboards, bumpers, and interior trim.
Consumer Goods: Thermoplastics are found in everyday items like toys, appliances, and electronics.
Medical Devices: They are used in medical devices and equipment due to their biocompatibility and ease of sterilization.

Applications of Thermosets

Thermosets are preferred in applications where high strength, durability, and heat resistance are required. Some common applications include:

Aerospace: Thermosets are used in aircraft components due to their high strength-to-weight ratio and heat resistance.
Electronics: They are used in printed circuit boards and other electronic components due to their excellent insulating properties.
Automotive: Thermosets are used in engine components, brake pads, and other high-stress parts.
Construction: They are used in construction materials, such as adhesives, sealants, and coatings.

Future Trends in Thermoplastic and Thermoset Materials

The field of polymer science is continually evolving, with new developments in thermoplastic and thermoset materials. Some emerging trends include:

Biodegradable Thermoplastics: There is a growing interest in developing biodegradable thermoplastics to reduce environmental impact.
High-Performance Thermosets: Research is focused on creating thermosets with even higher mechanical strength and heat resistance for advanced applications.
Recyclable Thermosets: Efforts are being made to develop thermosets that can be recycled or repurposed, addressing the environmental concerns associated with traditional thermosets.
Nanocomposites: The incorporation of nanoparticles into thermoplastics and thermosets is being explored to enhance their properties, such as strength, heat resistance, and conductivity.

In summary, the choice between thermoplastics and thermosets depends on the specific requirements of the application. Thermoplastics offer versatility, recyclability, and ease of processing, making them suitable for a wide range of applications. On the other hand, thermosets provide superior mechanical strength, heat resistance, and dimensional stability, making them ideal for demanding applications. Understanding the differences between these two types of polymers is crucial for making informed decisions in material selection and design.
