Thermal Conductivity Units

Understanding thermal conductivity is crucial for various applications in engineering, physics, and materials science. Thermal conductivity units play a pivotal role in quantifying how well a material conducts heat. This blog post delves into the significance of thermal conductivity, the various units used to measure it, and practical applications in different fields.

Table of Contents

What is Thermal Conductivity?

Thermal conductivity is a material property that describes the ability of a substance to conduct heat. It is defined as the quantity of heat transmitted through a unit thickness of the material in a direction normal to a surface of unit area due to a unit temperature gradient under steady-state conditions. In simpler terms, it measures how efficiently a material can transfer heat from one point to another.

Importance of Thermal Conductivity

Thermal conductivity is a critical parameter in various industries and applications. Here are some key areas where understanding thermal conductivity is essential:

Electronics: In the design of electronic components, thermal conductivity is crucial for managing heat dissipation. Efficient heat transfer prevents overheating, which can damage components and reduce their lifespan.
Building Materials: In construction, materials with high thermal conductivity can help maintain comfortable indoor temperatures by efficiently transferring heat. Conversely, materials with low thermal conductivity are used for insulation to keep heat in or out.
Automotive Industry: In engine design, thermal conductivity affects the performance and efficiency of cooling systems. Materials with high thermal conductivity are used to dissipate heat quickly, preventing engine overheating.
Aerospace: In aerospace engineering, thermal management is critical for the performance and safety of aircraft and spacecraft. Materials with specific thermal conductivity properties are chosen to manage heat in extreme conditions.

Thermal Conductivity Units

Thermal conductivity is measured in various units, depending on the system of measurement used. The most common units are:

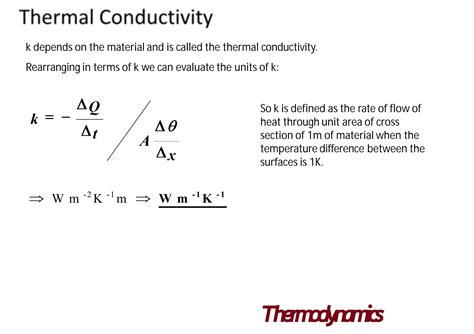

Watts per meter-Kelvin (W/m·K): This is the SI unit for thermal conductivity. It represents the amount of heat (in watts) that passes through a material of one meter thickness with a temperature difference of one Kelvin across its surfaces.
British Thermal Units per hour-foot-Fahrenheit (BTU/(h·ft·°F)): This is a common unit in the imperial system. It represents the amount of heat (in BTUs) that passes through a material of one foot thickness with a temperature difference of one degree Fahrenheit across its surfaces.
Calories per second-centimeter-Celsius (cal/(s·cm·°C)): This unit is less commonly used but is sometimes encountered in older literature or specific applications.

To convert between these units, you can use the following conversion factors:

Unit	Conversion to W/m·K
BTU/(h·ft·°F)	1.730735 W/m·K
cal/(s·cm·°C)	418.4 W/m·K

📝 Note: When converting between units, ensure that the temperature scales are consistent (e.g., Kelvin to Celsius or Fahrenheit to Rankine).

Measuring Thermal Conductivity

Several methods are used to measure thermal conductivity, each with its own advantages and limitations. Some of the most common methods include:

Steady-State Methods: These methods involve maintaining a constant temperature gradient across the material and measuring the heat flow. Examples include the guarded hot plate method and the heat flow meter method.
Transient Methods: These methods involve applying a sudden change in temperature and measuring the resulting heat flow over time. Examples include the laser flash method and the hot wire method.
Comparative Methods: These methods involve comparing the thermal conductivity of an unknown material to that of a known standard. Examples include the comparative cut-bar method and the comparative hot wire method.

Each method has its own set of equipment and procedures, and the choice of method depends on the material being tested and the required accuracy.

Factors Affecting Thermal Conductivity

Several factors can influence the thermal conductivity of a material. Understanding these factors is essential for selecting the right material for a specific application. Some of the key factors include:

Material Composition: The chemical composition of a material significantly affects its thermal conductivity. For example, metals generally have high thermal conductivity due to the presence of free electrons that can easily transfer heat.
Temperature: The thermal conductivity of a material can vary with temperature. For most materials, thermal conductivity decreases with increasing temperature, but there are exceptions, such as some semiconductors.
Density: The density of a material can affect its thermal conductivity. Generally, denser materials have higher thermal conductivity because there are more particles to transfer heat.
Structure: The microstructure of a material, including grain size and defects, can influence its thermal conductivity. For example, materials with smaller grain sizes may have lower thermal conductivity due to increased scattering of heat-carrying particles.

Applications of Thermal Conductivity

Thermal conductivity is a crucial parameter in various applications across different industries. Here are some key areas where thermal conductivity plays a significant role:

Electronics Cooling: In electronic devices, efficient heat dissipation is essential to prevent overheating and ensure reliable performance. Materials with high thermal conductivity, such as copper and aluminum, are commonly used in heat sinks and other cooling components.
Building Insulation: In construction, materials with low thermal conductivity are used for insulation to reduce heat transfer between the interior and exterior of buildings. Common insulation materials include fiberglass, foam, and mineral wool.
Automotive Engines: In engine design, thermal conductivity affects the performance and efficiency of cooling systems. Materials with high thermal conductivity are used to dissipate heat quickly, preventing engine overheating and improving fuel efficiency.
Aerospace Components: In aerospace engineering, thermal management is critical for the performance and safety of aircraft and spacecraft. Materials with specific thermal conductivity properties are chosen to manage heat in extreme conditions, such as high-altitude flight or space travel.

Thermal Conductivity in Everyday Life

Thermal conductivity is not just a concept confined to laboratories and industrial settings; it plays a significant role in our daily lives. Here are some examples of how thermal conductivity affects everyday objects and activities:

Cooking Utensils: Pots and pans made from materials with high thermal conductivity, such as copper and aluminum, heat up quickly and distribute heat evenly, making them ideal for cooking.
Clothing: Fabrics with low thermal conductivity, such as wool and fleece, are used in winter clothing to trap body heat and keep us warm.
Refrigeration: In refrigerators and freezers, insulation materials with low thermal conductivity are used to minimize heat transfer, keeping the interior cold and reducing energy consumption.
Electronics: In smartphones and laptops, thermal management systems use materials with high thermal conductivity to dissipate heat generated by the components, ensuring optimal performance and longevity.

Understanding thermal conductivity and its units is essential for making informed decisions in various applications, from selecting the right materials for construction to designing efficient cooling systems for electronic devices.

Thermal conductivity is a fundamental property that affects how heat is transferred through materials. By understanding the different thermal conductivity units and the factors that influence this property, we can make better choices in material selection and design. Whether in electronics, construction, automotive, or aerospace, thermal conductivity plays a crucial role in ensuring efficiency, performance, and safety.

In conclusion, thermal conductivity is a vital parameter that impacts numerous aspects of our lives and industries. By grasping the concepts of thermal conductivity units and their applications, we can enhance our understanding of heat transfer and make more informed decisions in various fields. This knowledge is essential for advancing technology, improving energy efficiency, and ensuring the safety and reliability of products and systems.
