Geometry is a fascinating branch of mathematics that deals with the properties and relationships of points, lines, surfaces, and solids. One of the most fundamental concepts in geometry is the study of triangles and their properties. Among these properties, the concept of similar triangles is particularly important. Similar triangles are triangles that have the same shape but not necessarily the same size. This means that their corresponding angles are equal, and their corresponding sides are in proportion. Understanding Theorems About Similar Triangles is crucial for solving a wide range of geometric problems and for applying geometric principles in various fields such as architecture, engineering, and physics.
The Basics of Similar Triangles
Before diving into the theorems, it's essential to understand the basics of similar triangles. Two triangles are said to be similar if:
- All their corresponding angles are equal.
- Their corresponding sides are in proportion.
This can be expressed mathematically as follows: If triangles ABC and DEF are similar, then:
- Angle A = Angle D
- Angle B = Angle E
- Angle C = Angle F
- AB/DE = BC/EF = CA/FD
These properties form the foundation for the various Theorems About Similar Triangles that we will explore.
AA (Angle-Angle) Similarity Criterion
The AA (Angle-Angle) Similarity Criterion is one of the most commonly used theorems to determine if two triangles are similar. According to this theorem, if two angles of one triangle are equal to two angles of another triangle, then the triangles are similar. This is because the third angle must also be equal, as the sum of angles in a triangle is always 180 degrees.
For example, if in triangles ABC and DEF, Angle A = Angle D and Angle B = Angle E, then triangles ABC and DEF are similar by the AA Similarity Criterion.

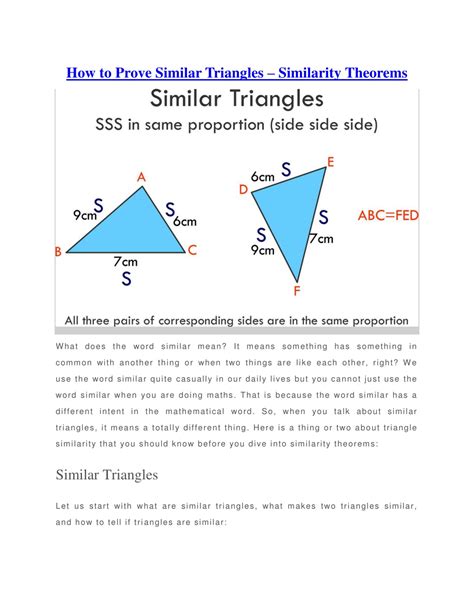

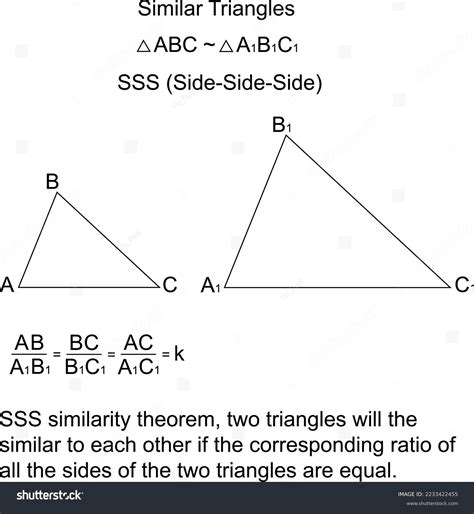

SSS (Side-Side-Side) Similarity Criterion
The SSS (Side-Side-Side) Similarity Criterion states that if the corresponding sides of two triangles are in proportion, then the triangles are similar. This means that if the ratios of the corresponding sides of two triangles are equal, the triangles are similar.
For example, if in triangles ABC and DEF, AB/DE = BC/EF = CA/FD, then triangles ABC and DEF are similar by the SSS Similarity Criterion.
SAS (Side-Angle-Side) Similarity Criterion
The SAS (Side-Angle-Side) Similarity Criterion is another important theorem. It states that if two sides of one triangle are in proportion to two sides of another triangle, and the included angles are equal, then the triangles are similar. This criterion is particularly useful when you have information about the sides and one of the included angles.
For example, if in triangles ABC and DEF, AB/DE = BC/EF and Angle B = Angle E, then triangles ABC and DEF are similar by the SAS Similarity Criterion.
Applications of Theorems About Similar Triangles
Theorems About Similar Triangles have numerous applications in various fields. Here are a few examples:
- Architecture and Engineering: Similar triangles are used to scale models and blueprints. Architects and engineers use these principles to ensure that the dimensions of a building or structure are accurate and proportional.
- Physics: In optics, similar triangles are used to understand the behavior of light rays and lenses. The principles of similar triangles help in calculating the focal length and magnification of lenses.
- Navigation: In navigation, similar triangles are used to determine distances and directions. For example, they can be used to calculate the height of a mountain or the distance to a distant object.
Solving Problems with Similar Triangles
Let's go through a few examples to understand how Theorems About Similar Triangles can be applied to solve problems.
Example 1: Using AA Similarity Criterion
Consider two triangles ABC and DEF where Angle A = 60 degrees, Angle B = 45 degrees, and Angle C = 75 degrees. Similarly, in triangle DEF, Angle D = 60 degrees, Angle E = 45 degrees, and Angle F = 75 degrees. Since two angles of triangle ABC are equal to two angles of triangle DEF, by the AA Similarity Criterion, triangles ABC and DEF are similar.
Example 2: Using SSS Similarity Criterion
Consider two triangles ABC and DEF where AB = 3, BC = 4, and CA = 5. In triangle DEF, DE = 6, EF = 8, and FD = 10. Since the ratios of the corresponding sides are equal (3/6 = 4/8 = 5/10), by the SSS Similarity Criterion, triangles ABC and DEF are similar.
Example 3: Using SAS Similarity Criterion
Consider two triangles ABC and DEF where AB = 3, BC = 4, and Angle B = 90 degrees. In triangle DEF, DE = 6, EF = 8, and Angle E = 90 degrees. Since two sides of triangle ABC are in proportion to two sides of triangle DEF and the included angles are equal, by the SAS Similarity Criterion, triangles ABC and DEF are similar.
📝 Note: When applying these theorems, it's important to ensure that the given information matches the criteria for similarity. Misidentifying the criteria can lead to incorrect conclusions.
Proving Similarity Using Coordinate Geometry
Coordinate geometry provides another method to prove the similarity of triangles. By plotting the vertices of the triangles on a coordinate plane and using the distance formula, you can determine if the triangles are similar. The distance formula is given by:
Distance between two points (x1, y1) and (x2, y2) is √[(x2 - x1)² + (y2 - y1)²].
For example, consider triangles ABC and DEF with the following coordinates:
| Triangle ABC | Triangle DEF |
|---|---|
| A(1, 2), B(4, 6), C(7, 2) | D(2, 4), E(8, 12), F(14, 4) |
By calculating the distances between the corresponding points and checking the ratios, you can determine if the triangles are similar.
📝 Note: Coordinate geometry can be a powerful tool for proving similarity, especially when dealing with complex shapes and transformations.
Real-World Examples of Similar Triangles
Similar triangles are not just theoretical constructs; they have practical applications in the real world. Here are a few examples:
- Shadows and Heights: The concept of similar triangles is used to determine the height of tall objects by measuring the length of their shadows. For example, if a person knows their own height and the length of their shadow, they can use similar triangles to calculate the height of a nearby building.
- Map Scaling: In cartography, similar triangles are used to scale maps accurately. By understanding the proportions of the map to the actual terrain, cartographers can create precise and useful maps.
- Photography: In photography, similar triangles are used to understand the relationship between the size of the subject, the distance from the camera, and the focal length of the lens. This helps photographers achieve the desired perspective and depth of field.
These examples illustrate how Theorems About Similar Triangles are applied in various fields to solve practical problems.
Similar triangles are a fundamental concept in geometry with wide-ranging applications. Understanding the theorems that govern similar triangles—such as the AA, SSS, and SAS criteria—is essential for solving geometric problems and applying geometric principles in various fields. Whether you’re an architect, engineer, physicist, or simply a student of mathematics, mastering these theorems will enhance your ability to analyze and solve problems involving triangles.
