The Smaw Process Basics

Understanding the intricacies of welding processes is crucial for anyone involved in metal fabrication, construction, or manufacturing. Among the various welding techniques, the Smaw Process Basics stands out as a fundamental and widely used method. This blog post will delve into the basics of the Smaw Process, its applications, equipment, and safety measures, providing a comprehensive guide for both beginners and experienced welders.

Table of Contents

The Smaw Process Basics

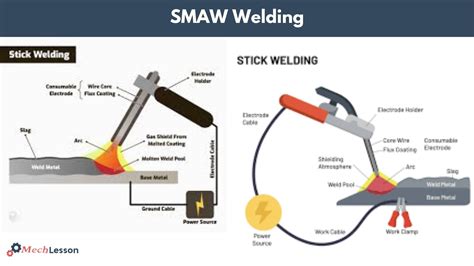

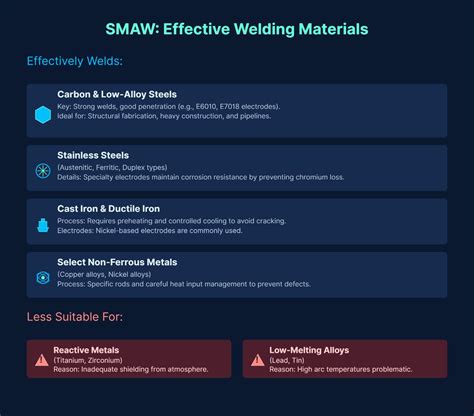

The Smaw Process, or Shielded Metal Arc Welding, is a manual arc welding process that uses a consumable electrode covered with a flux to lay the weld. This process is also known as stick welding due to the electrode’s stick-like appearance. The flux coating on the electrode melts during welding, creating a gas shield that protects the weld from atmospheric contaminants. This makes Smaw an excellent choice for outdoor welding where wind and other environmental factors can interfere with the welding process.

Equipment Required for Smaw Welding

To perform Smaw welding, you need several key pieces of equipment:

Welder: A welding machine capable of delivering the necessary current and voltage for the electrode being used.
Electrodes: Consumable rods coated with flux, available in various sizes and types for different materials and applications.
Welding Helmet: Essential for protecting the welder’s eyes and face from the intense light and sparks produced during welding.
Welding Gloves: Provide protection for the hands from heat and sparks.
Welding Apron or Jacket: Offers additional protection for the body.
Chipping Hammer and Wire Brush: Used to remove slag from the weld after it cools.

Setting Up for Smaw Welding

Before beginning the welding process, it’s essential to set up your equipment correctly. Here are the steps to follow:

Prepare the Work Area: Ensure the area is clean, well-ventilated, and free from flammable materials.
Select the Appropriate Electrode: Choose an electrode suitable for the material you are welding and the desired weld properties.
Set the Welder: Adjust the welder’s settings according to the electrode’s specifications, including amperage and polarity.
Put on Protective Gear: Wear a welding helmet, gloves, apron, and safety glasses to protect yourself from sparks and UV radiation.
Position the Workpiece: Secure the workpiece in a stable position to ensure a consistent weld.

🛠️ Note: Always double-check your equipment and settings before starting to weld to avoid any potential hazards.

The Smaw Welding Process

Once your equipment is set up, you can begin the welding process. Here are the steps involved:

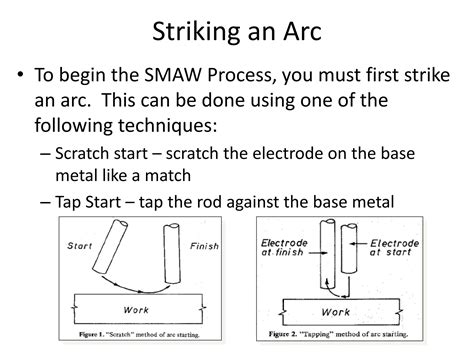

Strike the Arc: Hold the electrode at a 90-degree angle to the workpiece and strike the arc by briefly touching the electrode to the metal and then pulling it back slightly.
Maintain the Arc: Keep a consistent arc length (usually around ¹⁄₈ inch) by moving the electrode smoothly along the joint.
Control the Weld Pool: Use a steady hand and controlled movements to manage the weld pool, ensuring it flows evenly and fills the joint.
Complete the Weld: Gradually reduce the speed of the electrode as you approach the end of the weld to create a smooth finish.
Break the Arc: Lift the electrode away from the workpiece to break the arc, then allow the weld to cool.

After the weld has cooled, use a chipping hammer to remove any slag that has formed on the surface. Follow up with a wire brush to clean the weld and prepare it for any additional finishing steps.

🛠️ Note: Practice makes perfect when it comes to Smaw welding. Spend time honing your technique to achieve consistent and high-quality welds.

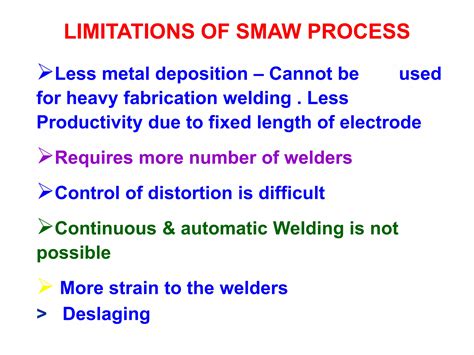

Applications of Smaw Welding

The Smaw Process is versatile and can be used in various applications, including:

Construction: Welding structural steel, rebar, and other metal components for buildings and infrastructure.
Manufacturing: Fabricating metal parts and assemblies for machinery, equipment, and vehicles.
Repair and Maintenance: Fixing and reinforcing metal structures, equipment, and pipelines.
Art and Sculpture: Creating metal art pieces and sculptures.

Safety Measures for Smaw Welding

Safety is paramount when performing Smaw welding. Here are some essential safety measures to follow:

Protective Gear: Always wear appropriate protective gear, including a welding helmet, gloves, apron, and safety glasses.
Ventilation: Ensure the work area is well-ventilated to disperse fumes and gases produced during welding.
Fire Safety: Keep a fire extinguisher nearby and remove any flammable materials from the work area.
Electrical Safety: Inspect your welding equipment regularly to ensure it is in good working condition and follow proper grounding procedures.
Post-Welding Care: Allow the weld to cool completely before handling it, and clean up any slag or debris to prevent accidents.

By adhering to these safety measures, you can minimize the risks associated with Smaw welding and create a safe working environment.

🛠️ Note: Always follow local regulations and safety guidelines when performing welding operations.

Common Issues and Troubleshooting

Even with proper technique and equipment, issues can arise during Smaw welding. Here are some common problems and their solutions:

Issue	Cause	Solution
Porosity	Contamination from moisture, oil, or dirt	Clean the workpiece thoroughly and use dry electrodes
Incomplete Fusion	Insufficient heat input or poor technique	Adjust the amperage and ensure proper electrode movement
Excessive Spatter	Incorrect arc length or electrode angle	Maintain a consistent arc length and proper electrode angle
Slag Inclusion	Inadequate slag removal	Thoroughly remove slag after each pass and clean the weld area

By understanding these common issues and their solutions, you can improve your welding skills and achieve better results.

🛠️ Note: Regular practice and attention to detail are key to overcoming welding challenges and mastering the Smaw Process.

Advanced Techniques in Smaw Welding

Once you have mastered the basics of Smaw welding, you can explore advanced techniques to enhance your skills and tackle more complex projects. Some advanced techniques include:

Weave Bead Technique: Moving the electrode in a weaving motion to create a wider weld bead, useful for filling larger gaps or covering wider areas.
Stringer Bead Technique: Maintaining a straight line with the electrode to create a narrow, precise weld bead, ideal for thin materials or detailed work.
Backstep Technique: Welding in the reverse direction to improve penetration and fusion, particularly useful for vertical or overhead welding.
Multi-Pass Welding: Applying multiple layers of weld to build up the thickness of the weld, necessary for thicker materials or critical applications.

These advanced techniques require practice and precision but can significantly improve the quality and strength of your welds.

🛠️ Note: Experiment with different techniques to find what works best for your specific application and material.

Conclusion

The Smaw Process Basics are essential for anyone looking to master welding techniques. From understanding the equipment and setup to practicing safety measures and troubleshooting common issues, this guide provides a comprehensive overview of Smaw welding. By following these steps and continuously honing your skills, you can achieve high-quality welds and tackle a wide range of welding projects with confidence. Whether you are a beginner or an experienced welder, mastering the Smaw Process will open up new opportunities and enhance your welding capabilities.
