Tcp Port Tftp

In the realm of network protocols, the Tcp Port Tftp (Trivial File Transfer Protocol) stands out as a simple and efficient method for transferring files over a network. Unlike its more complex counterparts, such as FTP (File Transfer Protocol), TFTP operates over UDP (User Datagram Protocol) rather than TCP (Transmission Control Protocol). This choice of protocol makes TFTP lightweight and fast, ideal for scenarios where simplicity and speed are paramount. However, it also means that TFTP lacks some of the robust features of TCP-based protocols, such as error correction and flow control.

Table of Contents

Understanding TFTP

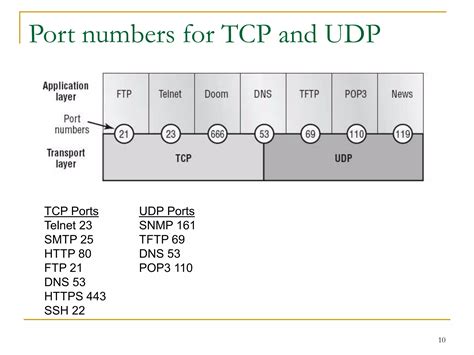

TFTP is designed to be minimalistic, focusing on the basic functionality of file transfer. It operates on Tcp Port Tftp 69 by default, using UDP for communication. This choice of protocol means that TFTP does not establish a reliable connection like TCP does. Instead, it relies on the simplicity and speed of UDP, making it suitable for small file transfers and environments where network reliability is not a concern.

TFTP is commonly used in network booting processes, such as PXE (Preboot Execution Environment), where a client machine boots from a network server. It is also used in embedded systems and IoT devices for firmware updates and configuration file transfers. The simplicity of TFTP makes it a popular choice for these applications, where the overhead of a more complex protocol would be unnecessary.

How TFTP Works

TFTP operates using a simple request-response model. The process involves several key steps:

Read Request (RRQ): The client sends a read request to the server, specifying the file name and mode (e.g., netascii, octet).
Write Request (WRQ): The client sends a write request to the server, specifying the file name and mode.
Data Transfer: The server responds with the requested file in segments, each acknowledged by the client. For write requests, the client sends data segments, which the server acknowledges.
Acknowledgments (ACK): The client or server sends acknowledgments for each data segment received, ensuring that the transfer is progressing correctly.
Error Messages: If an error occurs, the server sends an error message to the client, specifying the nature of the error.

This straightforward process makes TFTP easy to implement and use, but it also means that it lacks the error correction and flow control mechanisms found in TCP-based protocols.

TFTP Commands and Messages

TFTP uses a set of predefined commands and messages to facilitate file transfers. These include:

RRQ (Read Request): Used by the client to request a file from the server.
WRQ (Write Request): Used by the client to send a file to the server.
DATA: Contains the actual data being transferred.
ACK (Acknowledgment): Sent by the client or server to acknowledge receipt of a data segment.
ERROR: Sent by the server to indicate an error in the transfer process.

Each of these commands and messages plays a crucial role in the TFTP communication process, ensuring that files are transferred efficiently and accurately.

TFTP vs. FTP

While both TFTP and FTP are used for file transfers, they have significant differences in terms of protocol, features, and use cases. Here is a comparison of the two:

Feature	TFTP	FTP
Protocol	UDP	TCP
Connection	Connectionless	Connection-oriented
Error Correction	None	Yes
Flow Control	None	Yes
Authentication	None	Yes
Use Cases	Network booting, embedded systems, IoT devices	General file transfers, large file transfers, secure transfers

As shown in the table, TFTP is simpler and faster but lacks the robustness and security features of FTP. This makes TFTP suitable for specific use cases where simplicity and speed are more important than reliability and security.

Security Considerations

Due to its simplicity, TFTP does not include built-in security features such as authentication or encryption. This makes it vulnerable to various security threats, including:

Eavesdropping: Since TFTP operates over UDP and does not encrypt data, it is susceptible to eavesdropping attacks where an attacker can intercept and read the data being transferred.
Man-in-the-Middle Attacks: An attacker can intercept and modify the data being transferred, potentially altering the contents of the file without detection.
Denial of Service (DoS) Attacks: An attacker can flood the TFTP server with requests, overwhelming it and making it unavailable to legitimate users.

To mitigate these risks, it is essential to implement additional security measures, such as:

Network Segmentation: Isolate TFTP servers and clients on separate network segments to limit exposure to potential threats.
Access Control: Implement strict access controls to ensure that only authorized users and devices can access the TFTP server.
Encryption: Use encryption tools to protect data in transit, even though TFTP itself does not support encryption.

By taking these precautions, you can enhance the security of TFTP transfers and protect against potential threats.

🔒 Note: Always ensure that TFTP is used in a controlled and secure environment to minimize the risk of security breaches.

Configuring TFTP on a Linux System

Configuring TFTP on a Linux system involves several steps. Here is a detailed guide to setting up a TFTP server on a Linux machine:

1. Install TFTP Server:

First, you need to install the TFTP server package. On a Debian-based system, you can use the following command:

sudo apt-get update sudo apt-get install tftpd-hpa

On a Red Hat-based system, use:

sudo yum install tftp-server

2. Configure TFTP Server:

Next, configure the TFTP server by editing the configuration file. The location of this file may vary depending on the distribution. For example, on Debian-based systems, the configuration file is typically located at /etc/default/tftpd-hpa.

Open the configuration file in a text editor:

sudo nano /etc/default/tftpd-hpa

Modify the following settings:

TFTP_USERNAME: Set this to the user that the TFTP server will run as. For example, tftp.
TFTP_DIRECTORY: Set this to the directory where the TFTP server will store files. For example, /srv/tftp.
TFTP_ADDRESS: Set this to the IP address of the TFTP server. For example, 0.0.0.0 to listen on all interfaces.
TFTP_OPTIONS: Add any additional options as needed. For example, -c to enable the TFTP server to create new files.

3. Create TFTP Directory:

Create the directory specified in the TFTP_DIRECTORY setting:

sudo mkdir -p /srv/tftp sudo chown tftp:tftp /srv/tftp

4. Start TFTP Server:

Start the TFTP server using the following command:

sudo systemctl start tftpd-hpa

To enable the TFTP server to start on boot, use:

sudo systemctl enable tftpd-hpa

5. **Test TFTP Server:

To test the TFTP server, you can use a TFTP client to transfer a file. For example, to upload a file to the TFTP server, use the following command:

tftp localhost
tftp> put testfile

To download a file from the TFTP server, use:

tftp localhost
tftp> get testfile

By following these steps, you can successfully configure and test a TFTP server on a Linux system.

🛠️ Note: Ensure that the TFTP server directory has the correct permissions to allow file transfers.

Common TFTP Commands

TFTP clients provide a set of commands to interact with the TFTP server. Here are some of the most commonly used TFTP commands:

put: Uploads a file to the TFTP server.
get: Downloads a file from the TFTP server.
status: Displays the current status of the TFTP session.
quit: Exits the TFTP client.

These commands allow users to perform basic file transfer operations using TFTP. For example, to upload a file named example.txt to the TFTP server, you would use the following command:

tftp localhost
tftp> put example.txt

To download a file named example.txt from the TFTP server, use:

tftp localhost
tftp> get example.txt

By mastering these commands, you can efficiently manage file transfers using TFTP.

Troubleshooting TFTP Issues

While TFTP is generally straightforward to use, you may encounter issues during setup or operation. Here are some common problems and their solutions:

Connection Refused: If you receive a "Connection Refused" error, it may indicate that the TFTP server is not running or is not configured correctly. Ensure that the TFTP server is started and that the configuration file is correctly set up.
File Not Found: If you receive a "File Not Found" error, it may indicate that the file does not exist on the server or that the directory permissions are incorrect. Verify that the file exists in the TFTP directory and that the directory has the correct permissions.
Permission Denied: If you receive a "Permission Denied" error, it may indicate that the user does not have the necessary permissions to access the TFTP directory. Ensure that the TFTP directory has the correct ownership and permissions.
Timeout: If you receive a timeout error, it may indicate a network issue or that the TFTP server is not reachable. Verify that the network configuration is correct and that the TFTP server is running.

By addressing these common issues, you can ensure that your TFTP setup is functioning correctly and efficiently.

🛠️ Note: Always check the TFTP server logs for detailed error messages and troubleshooting information.

TFTP is a valuable tool for simple and efficient file transfers over a network. Its lightweight nature and speed make it ideal for specific use cases, such as network booting and embedded systems. However, it is essential to understand its limitations and implement additional security measures to protect against potential threats. By following the guidelines and best practices outlined in this post, you can effectively use TFTP for your file transfer needs.
