Welding is a critical process in various industries, from construction to manufacturing, and mastering different welding techniques is essential for creating strong and durable joints. One of the most common and important types of welds is the T Joint Weld. This type of weld is used to join two pieces of metal at a right angle, forming a T-shaped connection. Understanding the intricacies of a T Joint Weld can significantly enhance the quality and strength of your welding projects.
Understanding T Joint Welds
A T Joint Weld involves joining two metal pieces perpendicularly, creating a T-shaped intersection. This type of weld is commonly used in structural steelwork, piping, and various fabrication projects. The strength and integrity of a T Joint Weld depend on several factors, including the type of metal, the welding technique, and the preparation of the joint.

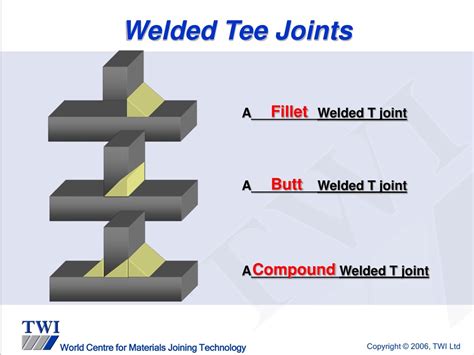

Types of T Joint Welds
There are several types of T Joint Welds, each suited to different applications and materials. The most common types include:
- Fillet Weld: This is the most basic type of T Joint Weld, where the weld is deposited along the outer edges of the joint. It is commonly used in structural steelwork and piping.
- Groove Weld: This type involves preparing a groove in one or both pieces of metal before welding. It is used when a stronger joint is required, as it allows for better penetration and fusion.
- Plug Weld: This type involves drilling holes in one piece of metal and welding through these holes to join the two pieces. It is often used in sheet metal work.
Preparing for a T Joint Weld
Proper preparation is crucial for a successful T Joint Weld. Here are the steps to prepare for a T Joint Weld:
- Clean the Metal Surfaces: Ensure that the metal surfaces are clean and free of rust, paint, or any other contaminants. Use a wire brush or grinder to remove any impurities.
- Align the Pieces: Position the two pieces of metal at a right angle, ensuring they are properly aligned. Use clamps or jigs to hold them in place.
- Prepare the Joint: Depending on the type of T Joint Weld, you may need to prepare the joint by beveling the edges or drilling holes. For a fillet weld, no special preparation is needed, but for a groove weld, you will need to create a groove.
🔧 Note: Always wear appropriate safety gear, including gloves, goggles, and a welding helmet, when preparing and welding metal.
Welding Techniques for T Joint Welds
Different welding techniques can be used to create a T Joint Weld, depending on the type of metal and the required strength of the joint. The most common techniques include:
- Shielded Metal Arc Welding (SMAW): Also known as stick welding, this technique uses a consumable electrode coated in flux. It is versatile and can be used on various types of metals.
- Gas Metal Arc Welding (GMAW): Also known as MIG welding, this technique uses a continuous wire feed and an inert gas to shield the weld. It is fast and efficient, making it ideal for larger projects.
- Gas Tungsten Arc Welding (GTAW): Also known as TIG welding, this technique uses a non-consumable tungsten electrode and an inert gas to shield the weld. It is precise and suitable for thinner metals.
Step-by-Step Guide to Creating a T Joint Weld
Here is a step-by-step guide to creating a T Joint Weld using the MIG welding technique:
- Set Up the Welding Machine: Connect the welding machine to a power source and set the appropriate voltage and wire feed speed for the type of metal you are welding.
- Prepare the Metal: Clean the metal surfaces and align the pieces as described in the preparation section.
- Position the Welding Gun: Hold the welding gun at a 45-degree angle to the joint, with the tip of the gun about 1/8 inch away from the metal.
- Start Welding: Pull the trigger on the welding gun to start the wire feed and gas flow. Move the gun along the joint in a steady, continuous motion, depositing the weld metal evenly.
- Complete the Weld: Continue welding until you have covered the entire joint. Allow the weld to cool before handling the metal.
🔧 Note: Always practice proper welding techniques to ensure a strong and durable T Joint Weld. Avoid overheating the metal, which can weaken the joint.
Common Issues and Solutions
Creating a strong T Joint Weld can be challenging, and several issues can arise during the process. Here are some common problems and their solutions:
| Issue | Solution |
|---|---|
| Incomplete Fusion | Ensure proper alignment and preparation of the joint. Use the correct welding technique and parameters. |
| Porosity | Check for contaminants on the metal surface. Use the correct shielding gas and ensure proper gas flow. |
| Overheating | Adjust the welding parameters to reduce heat input. Allow the metal to cool between passes. |
Applications of T Joint Welds
T Joint Welds are used in a wide range of applications across various industries. Some of the most common applications include:
- Structural Steelwork: T Joint Welds are used to join beams, columns, and other structural components in buildings and bridges.

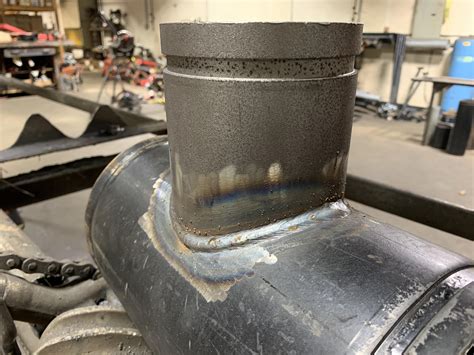

- Piping Systems: T Joint Welds are used to connect pipes at right angles, creating T-shaped junctions in plumbing and industrial piping systems.
- Fabrication Projects: T Joint Welds are used in various fabrication projects, such as creating frames, supports, and other structural components.
In addition to these applications, T Joint Welds are also used in automotive repair, shipbuilding, and aerospace industries. The versatility and strength of T Joint Welds make them an essential technique for welders in many different fields.
Mastering the art of creating a strong and durable T Joint Weld requires practice and attention to detail. By understanding the different types of T Joint Welds, preparing the joint properly, and using the correct welding technique, you can achieve high-quality results in your welding projects. Whether you are working in construction, manufacturing, or any other industry that requires welding, the skills and knowledge you gain from mastering T Joint Welds will be invaluable.
In summary, T Joint Welds are a fundamental technique in welding, used to create strong and durable connections between two pieces of metal at a right angle. By understanding the different types of T Joint Welds, preparing the joint properly, and using the correct welding technique, you can achieve high-quality results in your welding projects. Whether you are working in construction, manufacturing, or any other industry that requires welding, the skills and knowledge you gain from mastering T Joint Welds will be invaluable. With practice and attention to detail, you can create strong and durable T Joint Welds that will stand the test of time.
