Understanding the Sulfite Lewis Structure is fundamental for anyone studying chemistry, particularly those delving into the intricacies of molecular bonding and chemical reactions. The sulfite ion, with the chemical formula SO₃²⁻, is a polyatomic ion that plays a crucial role in various chemical processes. This blog post will guide you through the steps to draw the Sulfite Lewis Structure, explain the significance of each step, and provide insights into the properties and applications of the sulfite ion.
Understanding the Basics of Lewis Structures
Before diving into the Sulfite Lewis Structure, it’s essential to understand the basics of Lewis structures. Lewis structures, also known as Lewis dot structures, are diagrams that show the bonding between atoms of a molecule and the lone pairs of electrons that may exist in the molecule. They help visualize the arrangement of valence electrons around atoms, providing a clear picture of the molecule’s electronic structure.

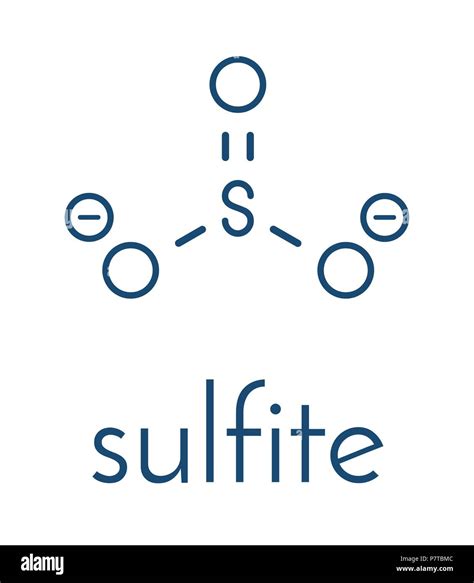

Drawing the Sulfite Lewis Structure
Drawing the Sulfite Lewis Structure involves several steps. Let’s break them down:
Step 1: Determine the Total Number of Valence Electrons
The first step is to calculate the total number of valence electrons in the sulfite ion. The sulfite ion consists of one sulfur atom and three oxygen atoms. Sulfur is in group 16 of the periodic table and has 6 valence electrons. Each oxygen atom, also in group 16, has 6 valence electrons. Additionally, the sulfite ion has a charge of -2, which means there are 2 extra electrons.
Total valence electrons = (1 sulfur atom × 6 valence electrons) + (3 oxygen atoms × 6 valence electrons) + 2 extra electrons
Total valence electrons = 6 + 18 + 2 = 26
Step 2: Choose the Central Atom
In the sulfite ion, sulfur (S) is the central atom because it is the least electronegative element among the atoms present. Oxygen atoms will surround the sulfur atom.
Step 3: Connect the Atoms with Single Bonds
Next, connect the central sulfur atom to each of the three oxygen atoms with single bonds. Each single bond consists of 2 electrons.
Number of electrons used in single bonds = 3 bonds × 2 electrons per bond = 6 electrons
Remaining electrons = 26 total electrons - 6 electrons used in bonds = 20 electrons
Step 4: Distribute the Remaining Electrons
Distribute the remaining 20 electrons around the oxygen atoms to complete their octets. Each oxygen atom needs 6 more electrons to complete its octet (since each already has 2 electrons from the single bond).
Number of electrons needed for oxygen atoms = 3 oxygen atoms × 6 electrons per atom = 18 electrons
Remaining electrons after distributing to oxygen = 20 electrons - 18 electrons = 2 electrons
These 2 remaining electrons will be placed on the sulfur atom.
Step 5: Check for Formal Charges
To ensure the Sulfite Lewis Structure is correct, calculate the formal charges on each atom. The formal charge is determined by the formula:
Formal Charge = (Number of valence electrons in free atom) - (Number of lone pair electrons) - (Number of bonding electrons / 2)
For sulfur:
Formal Charge (S) = 6 - 2 - (6 / 2) = 6 - 2 - 3 = 1
For each oxygen:
Formal Charge (O) = 6 - 6 - (2 / 2) = 6 - 6 - 1 = -1
Since the sulfite ion has a charge of -2, the formal charges should add up to -2. The structure with one sulfur atom and three oxygen atoms, each with a formal charge of -1, satisfies this condition.
Properties of the Sulfite Ion
The sulfite ion has several notable properties that make it significant in various chemical and industrial applications. Some key properties include:
- Oxidation State: The sulfur atom in the sulfite ion has an oxidation state of +4.
- Acidity: Sulfite ions are basic in nature and can react with acids to form sulfurous acid (H₂SO₃).
- Reducing Agent: Sulfite ions can act as reducing agents, donating electrons to other substances.
- Solubility: Sulfite salts are generally soluble in water.
Applications of the Sulfite Ion
The sulfite ion finds applications in various industries due to its chemical properties. Some of the key applications include:
- Food Preservation: Sulfites are used as preservatives in food and beverages to prevent browning and microbial growth.
- Pulp and Paper Industry: Sulfite ions are used in the pulping process to break down wood fibers and produce paper.
- Water Treatment: Sulfites are used to remove chlorine from water, making it safe for consumption.
- Photographic Processing: Sulfites are used in the development of photographic films and papers.
Sulfite Lewis Structure and Chemical Reactions
The Sulfite Lewis Structure provides valuable insights into the chemical reactions involving the sulfite ion. Understanding the electronic structure helps predict how the sulfite ion will behave in different chemical environments. For example, the sulfite ion can react with oxygen to form sulfate ions:
SO₃²⁻ + ½ O₂ → SO₄²⁻
This reaction is crucial in various industrial processes, including the production of sulfuric acid.
📝 Note: The sulfite ion is highly reactive and can undergo oxidation to form sulfate ions, which have different chemical properties and applications.
Comparing Sulfite and Sulfate Lewis Structures
To better understand the Sulfite Lewis Structure, it’s helpful to compare it with the sulfate ion (SO₄²⁻). The sulfate ion has one more oxygen atom and a different arrangement of electrons. Here’s a comparison:
| Property | Sulfite Ion (SO₃²⁻) | Sulfate Ion (SO₄²⁻) |
|---|---|---|
| Number of Oxygen Atoms | 3 | 4 |
| Total Valence Electrons | 26 | 32 |
| Formal Charge on Sulfur | +4 | +6 |
| Formal Charge on Oxygen | -2 | -2 |
The sulfate ion has a higher oxidation state for sulfur and more oxygen atoms, making it more stable and less reactive than the sulfite ion.
📝 Note: The sulfate ion is more stable than the sulfite ion due to its higher oxidation state and additional oxygen atom, which provides more resonance structures and stability.
Conclusion
Understanding the Sulfite Lewis Structure is crucial for grasping the chemical properties and applications of the sulfite ion. By following the steps to draw the Lewis structure, we can visualize the electronic arrangement and predict the behavior of the sulfite ion in various chemical reactions. The sulfite ion’s properties, such as its basic nature and reducing capabilities, make it valuable in industries like food preservation, pulp and paper production, and water treatment. Comparing the sulfite ion with the sulfate ion highlights the differences in their electronic structures and chemical behaviors, providing a deeper understanding of their roles in chemical processes.
