When it comes to electrical wiring, the choice between stranded vs solid wire can significantly impact the performance and reliability of your electrical systems. Understanding the differences between these two types of wires is crucial for making informed decisions, whether you're a professional electrician or a DIY enthusiast. This blog post will delve into the characteristics, applications, and advantages of both stranded and solid wires, helping you determine which is best suited for your specific needs.
Understanding Stranded Wire

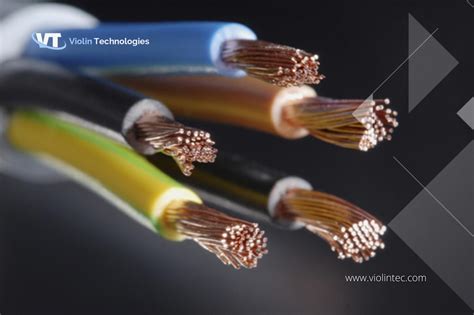

Stranded wire is composed of multiple thin wires twisted together to form a single conductor. This design offers several advantages, particularly in applications where flexibility is essential.
Advantages of Stranded Wire
- Flexibility: The primary advantage of stranded wire is its flexibility. The multiple strands allow the wire to bend and twist without breaking, making it ideal for applications that require frequent movement or vibration.
- Durability: Stranded wire is less likely to break under stress compared to solid wire. The multiple strands distribute the stress more evenly, reducing the risk of failure.
- Resistance to Fatigue: Due to its flexible nature, stranded wire is more resistant to fatigue, which is the weakening of a material caused by repeated stress.
Applications of Stranded Wire
Stranded wire is commonly used in various applications, including:
- Automotive wiring
- Portable electronics
- Flexible cords and cables
- Aircraft and marine wiring
- High-vibration environments
Understanding Solid Wire
Solid wire, on the other hand, consists of a single, solid conductor. This type of wire is known for its simplicity and ease of use in certain applications.
Advantages of Solid Wire
- Ease of Installation: Solid wire is easier to strip and connect, making it a popular choice for residential and commercial wiring.
- Cost-Effective: Generally, solid wire is less expensive than stranded wire, making it a cost-effective option for many applications.
- Better Conductivity: Solid wire often provides better conductivity due to its continuous, unbroken conductor.
Applications of Solid Wire
Solid wire is typically used in:
- Residential and commercial building wiring
- Telecommunications
- Fixed installations where flexibility is not a concern
- Electronic devices with minimal movement

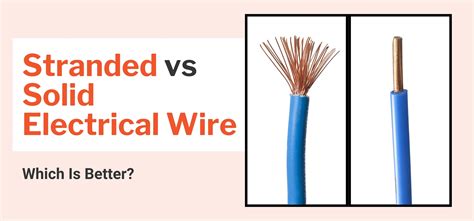

Stranded Vs Solid Wire: A Comparative Analysis
To better understand the differences between stranded and solid wire, let's compare them across several key factors:
| Factor | Stranded Wire | Solid Wire |
|---|---|---|
| Flexibility | High | Low |
| Durability | High | Moderate |
| Cost | Higher | Lower |
| Ease of Installation | Moderate | High |
| Conductivity | Good | Better |
| Resistance to Fatigue | High | Low |
When deciding between stranded and solid wire, consider the specific requirements of your project. For applications that require flexibility and durability, stranded wire is the better choice. For fixed installations where cost and ease of installation are priorities, solid wire is more suitable.
💡 Note: Always ensure that the wire gauge and type comply with local electrical codes and standards to guarantee safety and performance.
Choosing the Right Wire for Your Project
Selecting the appropriate wire type involves considering several factors, including the environment, the type of equipment, and the specific needs of your project. Here are some guidelines to help you make the right choice:
Environmental Factors
- Vibration and Movement: If your application involves frequent movement or vibration, stranded wire is the better option due to its flexibility and resistance to fatigue.
- Fixed Installations: For fixed installations where the wire will not be moved, solid wire is sufficient and often more cost-effective.
Equipment Type
- Portable Devices: Stranded wire is ideal for portable devices and equipment that require frequent movement.
- Stationary Equipment: Solid wire is suitable for stationary equipment where flexibility is not a concern.
Project-Specific Needs
- Budget Constraints: If cost is a significant factor, solid wire may be the more economical choice.
- Performance Requirements: For applications that demand high performance and durability, stranded wire is often the better investment.
Installation Tips for Stranded and Solid Wire
Proper installation is crucial for ensuring the safety and reliability of your electrical systems. Here are some tips for installing both stranded and solid wire:
Installing Stranded Wire
- Use Appropriate Connectors: Ensure that you use connectors designed for stranded wire to maintain a secure connection.
- Strip Carefully: Be cautious when stripping the insulation to avoid damaging the individual strands.
- Secure Connections: Use wire nuts or other appropriate connectors to secure the strands tightly and prevent loosening over time.
Installing Solid Wire
- Strip Easily: Solid wire is easier to strip, but be careful not to nick the conductor.
- Use Proper Tools: Use wire strippers and crimpers designed for solid wire to ensure a clean and secure connection.
- Secure Connections: Use wire nuts or other connectors to secure the wire firmly and prevent any movement that could cause a loose connection.
🛠️ Note: Always follow local electrical codes and safety guidelines when installing electrical wiring to ensure compliance and safety.
In summary, the choice between stranded and solid wire depends on the specific requirements of your project. Stranded wire offers flexibility and durability, making it ideal for applications involving movement or vibration. Solid wire, on the other hand, is cost-effective and easy to install, suitable for fixed installations where flexibility is not a concern. By understanding the differences and considering the factors outlined in this post, you can make an informed decision that ensures the reliability and performance of your electrical systems.
