Stern Of A Ship

The stern of a ship is a critical component that plays a pivotal role in the vessel's design, functionality, and overall performance. Understanding the stern of a ship involves delving into its structural components, historical evolution, and modern advancements. This exploration will provide a comprehensive overview of the stern of a ship, its significance, and how it has evolved over time.

The Anatomy of the Stern of a Ship

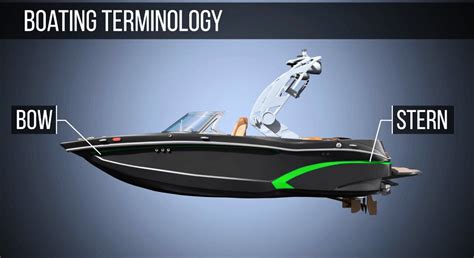

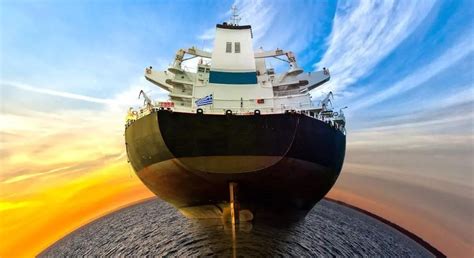

The stern of a ship is the rear part of the vessel, opposite the bow. It is a complex structure that includes several key components:

• Transom: The flat, vertical surface at the stern, which can vary in shape and size depending on the type of ship.

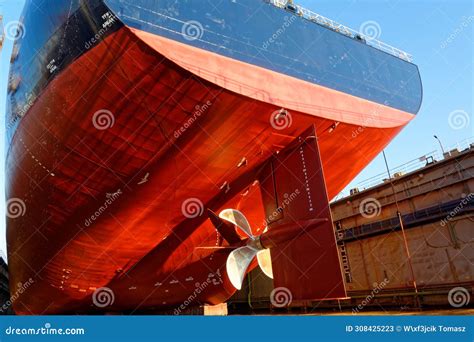

• Rudder: A crucial component for steering the ship, typically located near the stern.

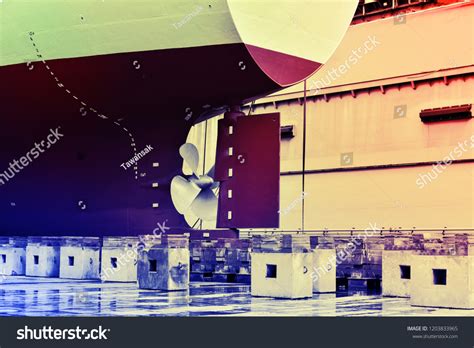

• Propeller: The device that provides propulsion, often positioned near the stern.

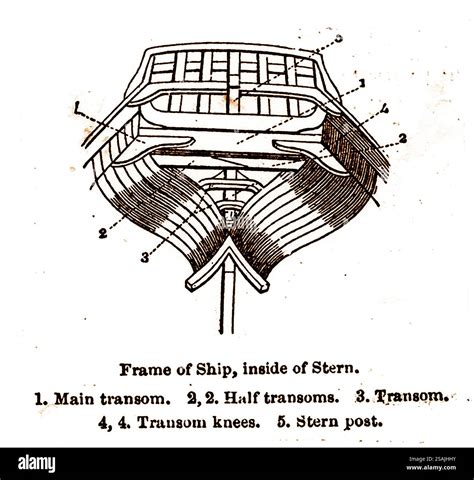

• Stern Frame: The structural framework that supports the stern, including the rudder and propeller.
• Stern Tube: A cylindrical structure that houses the propeller shaft, allowing it to rotate freely.

These components work together to ensure the ship's stability, maneuverability, and efficiency. The design of the stern of a ship can significantly impact its performance, especially in terms of speed, fuel consumption, and handling.

Historical Evolution of the Stern of a Ship

The design of the stern of a ship has evolved significantly over centuries, driven by advancements in naval architecture and the need for improved performance. Early ships had simple stern designs, often featuring a flat transom and a basic rudder system. As naval technology progressed, so did the complexity and sophistication of the stern.

During the age of sail, ships like galleons and clipper ships had distinctive stern designs. These vessels often featured ornate carvings and decorative elements on the stern, reflecting the craftsmanship and artistry of the era. The stern of these ships was not only functional but also served as a symbol of the ship's identity and the owner's status.

With the advent of steam power in the 19th century, the stern of a ship underwent significant changes. Steamships required more robust and efficient stern designs to accommodate the new propulsion systems. The introduction of the propeller and the rudder system revolutionized naval design, leading to more streamlined and efficient stern structures.

In the 20th century, the development of modern materials and advanced engineering techniques further enhanced the design of the stern of a ship. Today, ships are equipped with sophisticated stern designs that optimize performance, reduce drag, and improve fuel efficiency. The use of composite materials, advanced propulsion systems, and computer-aided design (CAD) has enabled the creation of highly efficient and durable stern structures.

Modern Advancements in Stern Design

Modern advancements in stern design have focused on improving performance, reducing environmental impact, and enhancing safety. Some of the key innovations include:

• Integrated Stern Designs: Modern ships often feature integrated stern designs that combine the rudder, propeller, and other components into a single, streamlined structure. This approach reduces drag and improves overall efficiency.
• Advanced Propulsion Systems: The use of advanced propulsion systems, such as azimuth thrusters and podded drives, has revolutionized stern design. These systems provide better maneuverability and efficiency, making them ideal for large vessels like cruise ships and container ships.
• Composite Materials: The use of composite materials in stern construction has led to lighter, stronger, and more durable structures. These materials offer superior resistance to corrosion and fatigue, extending the lifespan of the stern.
• Computer-Aided Design (CAD): CAD technology has enabled naval architects to create highly optimized stern designs. By simulating various conditions and scenarios, designers can fine-tune the stern structure to achieve the best possible performance.

These advancements have not only improved the performance of ships but also reduced their environmental impact. Modern stern designs are more fuel-efficient, producing fewer emissions and contributing to sustainable maritime operations.

Types of Stern Designs

There are several types of stern designs, each suited to different types of vessels and operational requirements. Some of the most common stern designs include:

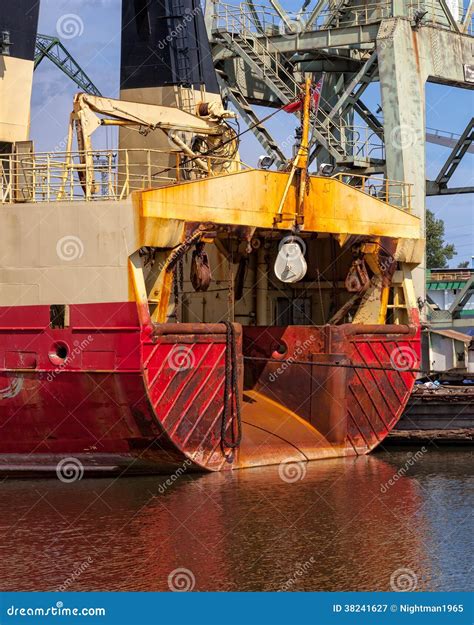

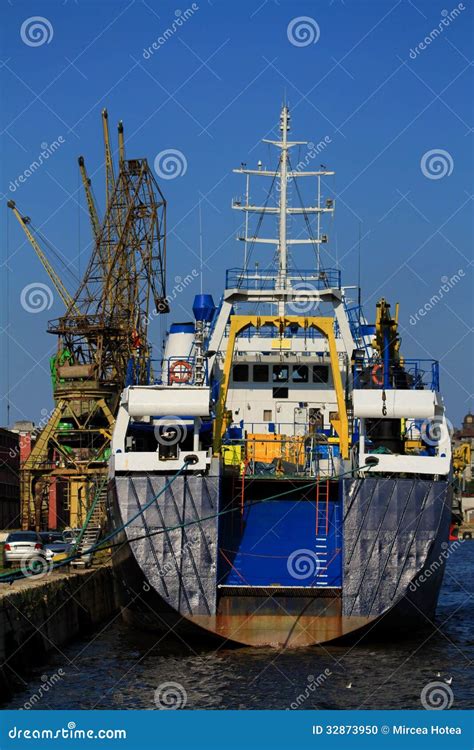

• Transom Stern: This design features a flat, vertical transom at the stern, providing a stable platform for the rudder and propeller. It is commonly used in cargo ships and fishing vessels.
• Counter Stern: This design extends the stern beyond the waterline, creating a counterbalance that improves stability and maneuverability. It is often used in passenger ships and yachts.
• Can Stern: This design features a curved stern that tapers towards the waterline, reducing drag and improving efficiency. It is commonly used in high-speed vessels and racing boats.
• Skeg Stern: This design includes a skeg, a vertical fin-like structure that extends below the stern. The skeg provides additional stability and support for the rudder and propeller.

Each type of stern design has its own advantages and disadvantages, and the choice of design depends on the specific requirements of the vessel and its intended use.

Importance of Stern Design in Ship Performance

The design of the stern of a ship plays a crucial role in its overall performance. A well-designed stern can significantly enhance the vessel's speed, fuel efficiency, and maneuverability. Some of the key factors influenced by stern design include:

• Drag Reduction: A streamlined stern design reduces drag, allowing the ship to move more efficiently through the water. This results in improved speed and reduced fuel consumption.
• Stability: The stern design affects the ship's stability, especially in rough seas. A well-designed stern can provide better balance and reduce the risk of capsizing.
• Maneuverability: The rudder and propeller systems at the stern are essential for steering and controlling the ship. An optimized stern design ensures better maneuverability, making it easier to navigate through narrow channels and crowded harbors.
• Propulsion Efficiency: The stern design influences the efficiency of the propulsion system. A well-designed stern can maximize the thrust generated by the propeller, resulting in better performance and reduced fuel consumption.

By optimizing the stern design, naval architects can create ships that are not only more efficient but also safer and more reliable.

Challenges in Stern Design

Designing an effective stern for a ship presents several challenges. Some of the key issues include:

• Structural Integrity: The stern must be strong enough to withstand the forces exerted by the propeller, rudder, and waves. Ensuring structural integrity is crucial for the safety and longevity of the ship.
• Hydrodynamics: The stern design must optimize the flow of water around the vessel to minimize drag and maximize efficiency. This requires a deep understanding of hydrodynamics and fluid dynamics.
• Material Selection: Choosing the right materials for the stern construction is essential. The materials must be durable, corrosion-resistant, and capable of withstanding the harsh marine environment.
• Environmental Impact: Modern stern designs must also consider environmental factors. Reducing emissions and minimizing the environmental impact of the ship is a growing concern in naval architecture.

Addressing these challenges requires a multidisciplinary approach, combining expertise in naval architecture, materials science, and environmental engineering.

Case Studies: Innovative Stern Designs

Several innovative stern designs have been developed to address specific challenges and improve ship performance. Some notable examples include:

• Azimuth Thruster Stern: This design features azimuth thrusters, which can rotate 360 degrees, providing exceptional maneuverability. It is commonly used in icebreakers and offshore vessels.
• Podded Drive Stern: This design incorporates podded drives, which are electric motors housed in pods that can rotate independently. It offers high efficiency and maneuverability, making it ideal for cruise ships and ferries.
• Integrated Rudder and Propeller (IRP) Stern: This design combines the rudder and propeller into a single unit, reducing drag and improving efficiency. It is used in various types of vessels, including container ships and tankers.

These innovative stern designs demonstrate the potential for improving ship performance through advanced engineering and technology.

📝 Note: The choice of stern design depends on the specific requirements of the vessel and its intended use. Factors such as speed, fuel efficiency, and maneuverability must be carefully considered when selecting a stern design.

Future Trends in Stern Design

The future of stern design is likely to be shaped by advancements in technology, materials, and environmental regulations. Some of the emerging trends include:

• Advanced Materials: The use of advanced materials, such as carbon fiber composites and smart materials, will continue to enhance the durability and performance of stern structures.
• Autonomous Vessels: The development of autonomous ships will require innovative stern designs that can accommodate advanced navigation and propulsion systems.
• Sustainable Designs: As environmental concerns grow, there will be a greater emphasis on sustainable stern designs that reduce emissions and minimize the environmental impact of ships.
• Digital Twins: The use of digital twins, virtual replicas of physical ships, will enable more precise and efficient stern design. By simulating various conditions and scenarios, designers can optimize the stern structure for better performance.

These trends highlight the ongoing evolution of stern design and the potential for further advancements in ship performance and sustainability.

In conclusion, the stern of a ship is a critical component that plays a vital role in the vessel’s design, functionality, and overall performance. From its historical evolution to modern advancements, the stern design has undergone significant changes, driven by the need for improved efficiency, safety, and sustainability. Understanding the anatomy, types, and importance of the stern of a ship provides valuable insights into the complexities of naval architecture and the ongoing efforts to enhance ship performance. As technology continues to advance, the future of stern design holds exciting possibilities for innovation and sustainability in the maritime industry.
