Understanding the mechanical properties of materials is crucial in various engineering and scientific disciplines. One of the fundamental properties that engineers and scientists often consider is the Steel Young's Modulus. This property is essential for designing structures, machines, and components that can withstand various loads and stresses. In this post, we will delve into the concept of Steel Young's Modulus, its significance, how it is measured, and its applications in different fields.
What is Steel Young's Modulus?

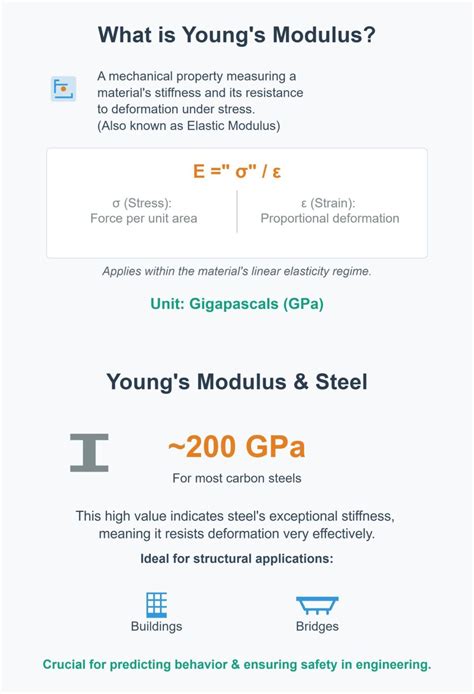

Steel Young's Modulus, also known as the modulus of elasticity, is a measure of the stiffness of a material. It defines the relationship between stress (force per unit area) and strain (proportional deformation) in a material within its elastic limit. In simpler terms, it indicates how much a material will deform under a given load before it returns to its original shape once the load is removed.
Mathematically, Steel Young's Modulus (E) is expressed as:
E = σ / ε
where:
- σ is the stress applied to the material,
- ε is the strain, or deformation, experienced by the material.
For steel, the Steel Young's Modulus is typically around 200 GPa (gigapascals). This high value indicates that steel is a very stiff material, meaning it will deform very little under a given load compared to materials with lower Young's Modulus values.
Significance of Steel Young's Modulus
The significance of Steel Young's Modulus lies in its role in predicting the behavior of materials under load. Engineers use this property to design structures and components that can safely withstand expected loads without failing. Here are some key points highlighting its significance:
- Structural Integrity: Knowing the Steel Young's Modulus helps ensure that structures like buildings, bridges, and vehicles maintain their integrity under various loads.
- Material Selection: It aids in selecting the appropriate material for a given application based on its stiffness requirements.
- Design Optimization: Engineers can optimize designs to minimize material usage while ensuring safety and performance.
- Failure Prediction: Understanding Steel Young's Modulus helps in predicting potential failure points and designing components to avoid such failures.
Measuring Steel Young's Modulus
Measuring Steel Young's Modulus involves conducting tensile tests on steel samples. Here is a step-by-step process for measuring Steel Young's Modulus:
- Sample Preparation: Prepare a steel sample with a known cross-sectional area and gauge length.
- Tensile Testing Machine: Use a tensile testing machine to apply a controlled load to the sample.
- Data Collection: Record the load and the corresponding elongation of the sample.
- Stress-Strain Curve: Plot the stress (load divided by cross-sectional area) against the strain (elongation divided by gauge length) to obtain the stress-strain curve.
- Calculate Young's Modulus: Determine the slope of the linear elastic region of the stress-strain curve. This slope is the Steel Young's Modulus.
🔍 Note: Ensure that the sample is within its elastic limit to obtain accurate results. The elastic limit is the point beyond which the material will not return to its original shape after the load is removed.
Applications of Steel Young's Modulus
The knowledge of Steel Young's Modulus is applied in various fields, including civil engineering, mechanical engineering, and materials science. Here are some key applications:
Civil Engineering
In civil engineering, Steel Young's Modulus is crucial for designing structures like buildings, bridges, and towers. Engineers use this property to ensure that these structures can withstand various loads, including dead loads, live loads, and environmental loads. For example, in the design of a steel bridge, knowing the Steel Young's Modulus helps in determining the required thickness of the steel beams to support the expected traffic load without excessive deformation.
Mechanical Engineering
In mechanical engineering, Steel Young's Modulus is essential for designing machinery and components that operate under dynamic loads. For instance, in the design of a crankshaft for an engine, engineers need to ensure that the shaft can withstand the cyclic loads without failing. Knowing the Steel Young's Modulus helps in selecting the appropriate steel grade and dimensions for the crankshaft.
Materials Science
In materials science, Steel Young's Modulus is used to study the behavior of different steel alloys under various conditions. Researchers can use this property to develop new steel alloys with improved mechanical properties. For example, by understanding the Steel Young's Modulus of different steel alloys, researchers can develop high-strength, low-alloy steels that are both strong and lightweight.
Factors Affecting Steel Young's Modulus
Several factors can affect the Steel Young's Modulus of a material. Understanding these factors is crucial for accurate material selection and design. Here are some key factors:
- Composition: The chemical composition of steel, including the presence of alloying elements, can significantly affect its Steel Young's Modulus. For example, adding carbon to steel can increase its stiffness.
- Heat Treatment: Heat treatment processes, such as annealing and quenching, can alter the microstructure of steel, thereby affecting its Steel Young's Modulus.
- Temperature: The temperature at which the steel is tested can also affect its Steel Young's Modulus. Generally, the stiffness of steel decreases with increasing temperature.
- Grain Size: The grain size of the steel can influence its Steel Young's Modulus. Smaller grain sizes typically result in higher stiffness.
Comparing Steel Young's Modulus with Other Materials
To better understand the significance of Steel Young's Modulus, it is helpful to compare it with the Young's Modulus of other common materials. Here is a table comparing the Young's Modulus of steel with other materials:
| Material | Young's Modulus (GPa) |
|---|---|
| Steel | 200 |
| Aluminum | 70 |
| Concrete | 30 |
| Wood | 10-20 |
| Rubber | 0.01-0.1 |
From the table, it is clear that steel has a much higher Steel Young's Modulus compared to materials like aluminum, concrete, wood, and rubber. This high stiffness makes steel an ideal material for applications requiring high strength and rigidity.
Advanced Topics in Steel Young's Modulus
For those interested in delving deeper into the topic, there are several advanced topics related to Steel Young's Modulus that can provide a more comprehensive understanding. These topics include:
- Anisotropy: The direction-dependent properties of steel can affect its Steel Young's Modulus. Understanding anisotropy is crucial for materials with directional properties.
- Viscoelasticity: Some materials, including certain types of steel, exhibit viscoelastic behavior, where the Steel Young's Modulus changes over time under constant stress.
- Fatigue: The cyclic loading and unloading of steel can lead to fatigue, affecting its Steel Young's Modulus over time. Understanding fatigue behavior is essential for designing components that will be subjected to repeated loads.
These advanced topics provide a deeper insight into the behavior of steel under various conditions and help in designing more robust and reliable structures and components.
In conclusion, Steel Young’s Modulus is a fundamental property that plays a crucial role in various engineering and scientific disciplines. Understanding this property helps in designing structures and components that can withstand various loads and stresses. By measuring and analyzing Steel Young’s Modulus, engineers and scientists can ensure the safety, performance, and reliability of their designs. Whether in civil engineering, mechanical engineering, or materials science, the knowledge of Steel Young’s Modulus is essential for advancing technology and innovation.
