Standard Stud Distance

Understanding the Standard Stud Distance is crucial for anyone involved in construction or carpentry. This measurement ensures the structural integrity and stability of walls, ceilings, and other framed structures. Whether you are a professional builder or a DIY enthusiast, knowing the correct stud spacing can save you time, money, and potential headaches down the line.

Table of Contents

What is Standard Stud Distance?

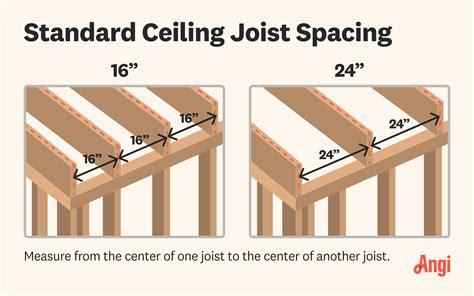

The Standard Stud Distance refers to the typical spacing between vertical framing members, known as studs, in a wall or ceiling. In most construction projects, the standard distance is 16 inches or 24 inches on center. This means the measurement is taken from the center of one stud to the center of the next. The choice between 16-inch and 24-inch spacing depends on the specific requirements of the project and local building codes.

Importance of Correct Stud Spacing

Proper stud spacing is essential for several reasons:

Structural Integrity: Correct spacing ensures that the wall can support the weight of the structure above it, including the roof and any additional loads.
Load Distribution: Evenly spaced studs help distribute the load evenly across the wall, preventing sagging or warping.
Cost Efficiency: Using the standard Standard Stud Distance can reduce the number of studs needed, lowering material costs.
Compliance with Building Codes: Adhering to standard spacing ensures that your construction project meets local building codes and regulations.

Determining the Right Stud Spacing

Choosing the right stud spacing depends on several factors, including the type of wall, the load it will bear, and the specific requirements of your project. Here are some guidelines to help you determine the appropriate spacing:

16-Inch Stud Spacing

16-inch stud spacing is the most common and is suitable for most residential and light commercial construction projects. It provides a good balance between structural support and cost efficiency. This spacing is ideal for:

Interior walls that do not bear heavy loads.
Exterior walls with standard cladding and insulation.
Ceilings with lightweight materials.

24-Inch Stud Spacing

24-inch stud spacing is often used in larger commercial projects or when cost savings are a priority. This spacing can reduce the number of studs needed by about 33% compared to 16-inch spacing. However, it may require additional support for heavier loads. This spacing is suitable for:

Non-load-bearing walls.
Exterior walls with specific structural requirements.
Ceilings with lightweight materials and minimal load.

Calculating Stud Spacing

To calculate the number of studs needed for a wall, you can use the following formula:

Number of Studs = (Wall Length / Stud Spacing) + 1

For example, if you have a wall that is 16 feet long and you are using 16-inch stud spacing, the calculation would be:

Number of Studs = (16 feet * 12 inches/foot) / 16 inches + 1 = 13 studs

This calculation includes the studs at both ends of the wall.

Common Mistakes to Avoid

When working with stud spacing, it’s important to avoid common mistakes that can compromise the structural integrity of your project. Here are some pitfalls to watch out for:

Incorrect Measurements: Always double-check your measurements to ensure accurate stud spacing.
Inconsistent Spacing: Maintain consistent spacing throughout the wall to avoid weak points.
Ignoring Load Requirements: Consider the load the wall will bear and adjust the spacing accordingly.
Not Following Building Codes: Ensure your project complies with local building codes and regulations.

Tools for Measuring Stud Spacing

Accurate measurement is key to achieving the correct Standard Stud Distance. Here are some tools that can help you measure and mark stud spacing:

Tape Measure: A standard tape measure is essential for measuring the length of the wall and marking stud locations.
Stud Finder: A stud finder can help you locate existing studs in a wall, ensuring accurate placement of new studs.
Chalk Line: A chalk line is useful for marking straight lines along the wall, ensuring consistent stud spacing.
Laser Level: A laser level can help you maintain a level line across the wall, ensuring accurate stud placement.

Step-by-Step Guide to Installing Studs

Here is a step-by-step guide to installing studs with the correct spacing:

Measure the Wall: Use a tape measure to determine the length of the wall.
Mark Stud Locations: Use a chalk line to mark the locations of the studs at the desired spacing (16 inches or 24 inches on center).
Cut Studs to Length: Measure and cut the studs to the appropriate length, ensuring they fit snugly between the top and bottom plates.
Install Studs: Place the studs at the marked locations and secure them to the top and bottom plates using nails or screws.
Check for Plumb: Use a level to ensure each stud is plumb and straight.
Add Additional Support: If necessary, add additional support such as blocking or cripple studs to reinforce the wall.

🛠️ Note: Always wear appropriate safety gear, including gloves and safety glasses, when handling and installing studs.

Special Considerations for Stud Spacing

In some cases, you may need to adjust the standard Standard Stud Distance to accommodate specific features or requirements. Here are some special considerations:

Door and Window Openings

When installing doors and windows, you may need to adjust the stud spacing to accommodate the opening. Ensure that the studs on either side of the opening are properly supported and that the header and sill are correctly installed.

Electrical and Plumbing

Plan for electrical and plumbing runs when determining stud spacing. Ensure that there is enough space between studs to accommodate wiring, pipes, and other utilities. This may require adjusting the spacing or adding additional studs for support.

Load-Bearing Walls

For load-bearing walls, it is crucial to maintain the correct stud spacing to ensure structural integrity. Consult with a structural engineer if you are unsure about the load requirements or spacing for your project.

Conclusion

Understanding and implementing the correct Standard Stud Distance is essential for any construction or carpentry project. Whether you are building a new wall, repairing an existing one, or installing a ceiling, proper stud spacing ensures structural integrity, cost efficiency, and compliance with building codes. By following the guidelines and tips outlined in this post, you can achieve accurate and reliable stud spacing, ensuring a successful and durable construction project.
