Understanding the Standard Normal Table Z is crucial for anyone delving into the world of statistics and probability. This table, also known as the Z-table or the standard normal distribution table, provides the cumulative probabilities for the standard normal distribution. It is an essential tool for calculating probabilities associated with normally distributed data, making it indispensable for various statistical analyses and hypothesis testing.
What is the Standard Normal Distribution?
The standard normal distribution is a special case of the normal distribution where the mean (μ) is 0 and the standard deviation (σ) is 1. This distribution is often denoted by N(0,1). The standard normal distribution is symmetric about the mean, and its shape is characterized by the familiar bell curve. The area under the curve represents the probability, and the total area under the curve is 1.

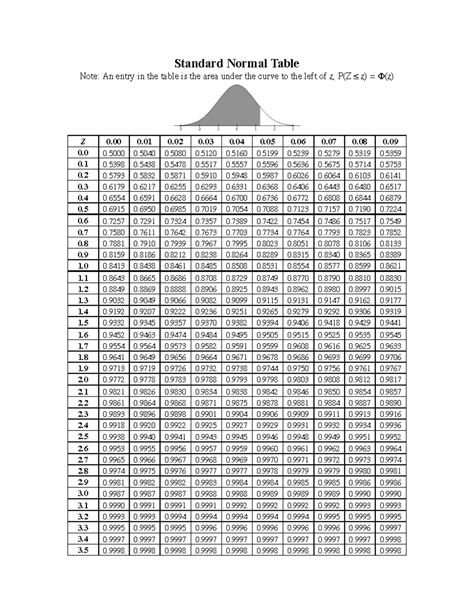

Understanding the Standard Normal Table Z
The Standard Normal Table Z lists the probabilities for different Z-scores. A Z-score represents the number of standard deviations a data point is from the mean. The table is typically divided into two parts: the body of the table, which contains the probabilities, and the margins, which list the Z-scores.
The table is usually structured as follows:
| Z-score | 0.00 | 0.01 | 0.02 | 0.03 |
|---|---|---|---|---|
| 0.0 | 0.5000 | 0.5040 | 0.5080 | 0.5120 |
| 0.1 | 0.5398 | 0.5438 | 0.5478 | 0.5517 |
| 0.2 | 0.5793 | 0.5832 | 0.5871 | 0.5910 |
| 0.3 | 0.6179 | 0.6217 | 0.6255 | 0.6293 |
To use the Standard Normal Table Z, you need to find the Z-score corresponding to your data point and then look up the probability in the table. For example, if you have a Z-score of 0.5, you would look up 0.5 in the left margin and find the corresponding probability in the body of the table.
How to Use the Standard Normal Table Z
Using the Standard Normal Table Z involves several steps. Here’s a step-by-step guide:
- Identify the Z-score: Calculate the Z-score for your data point using the formula Z = (X - μ) / σ, where X is the data point, μ is the mean, and σ is the standard deviation.
- Locate the Z-score in the table: Find the Z-score in the left margin of the table. If your Z-score has a decimal part, locate the whole number part in the left margin and the decimal part in the top margin.
- Read the probability: The probability corresponding to the Z-score is found at the intersection of the row and column.
For example, if you have a Z-score of 1.23, you would:
- Locate 1.2 in the left margin.
- Locate 0.03 in the top margin.
- Find the intersection of the row and column to get the probability.
In this case, the probability is approximately 0.8907.
📝 Note: Remember that the Standard Normal Table Z provides cumulative probabilities. This means it gives the probability that a variable is less than or equal to a given Z-score.
Applications of the Standard Normal Table Z
The Standard Normal Table Z has numerous applications in statistics and probability. Some of the key areas where it is used include:
- Hypothesis Testing: In hypothesis testing, the Z-table is used to determine the p-value, which helps in deciding whether to reject the null hypothesis.
- Confidence Intervals: The table is used to calculate confidence intervals for population parameters, such as the mean.
- Sampling Distributions: It helps in understanding the sampling distribution of the sample mean and other statistics.
- Quality Control: In manufacturing, the Z-table is used to monitor and control the quality of products.
- Finance: In financial analysis, it is used to calculate the probability of different outcomes, such as the likelihood of a stock price moving in a certain direction.
Interpreting the Standard Normal Table Z
Interpreting the Standard Normal Table Z requires understanding the concept of cumulative probabilities. The table provides the area under the standard normal curve to the left of a given Z-score. This area represents the probability that a variable is less than or equal to that Z-score.
For example, if you look up a Z-score of 1.64 in the table, you will find that the probability is approximately 0.9495. This means there is a 94.95% chance that a variable will be less than or equal to 1.64 standard deviations above the mean.
It is also important to note that the table can be used to find probabilities for ranges of Z-scores. For example, to find the probability that a variable is between two Z-scores, you would subtract the cumulative probability of the lower Z-score from the cumulative probability of the higher Z-score.
For instance, to find the probability that a variable is between Z = 0.5 and Z = 1.5, you would:
- Look up the cumulative probability for Z = 1.5, which is approximately 0.9332.
- Look up the cumulative probability for Z = 0.5, which is approximately 0.6915.
- Subtract the lower probability from the higher probability: 0.9332 - 0.6915 = 0.2417.
This means there is a 24.17% chance that a variable will be between 0.5 and 1.5 standard deviations above the mean.
📝 Note: When using the Standard Normal Table Z to find probabilities for ranges, ensure that the Z-scores are correctly identified and that the cumulative probabilities are accurately subtracted.
Common Mistakes to Avoid
While using the Standard Normal Table Z, it is essential to avoid common mistakes that can lead to incorrect interpretations. Some of these mistakes include:
- Incorrect Z-score Calculation: Ensure that the Z-score is calculated correctly using the formula Z = (X - μ) / σ.
- Misreading the Table: Double-check the Z-score in the table to ensure you are looking at the correct row and column.
- Ignoring the Sign of the Z-score: Remember that Z-scores can be positive or negative, and the table typically lists only positive Z-scores. For negative Z-scores, use the symmetry of the normal distribution.
- Confusing Cumulative and Non-Cumulative Probabilities: The Standard Normal Table Z provides cumulative probabilities. If you need non-cumulative probabilities, you may need to perform additional calculations.
Conclusion
The Standard Normal Table Z is a fundamental tool in statistics and probability, providing cumulative probabilities for the standard normal distribution. Understanding how to use this table is essential for various statistical analyses, including hypothesis testing, confidence intervals, and quality control. By following the steps outlined in this post and avoiding common mistakes, you can effectively use the Standard Normal Table Z to calculate probabilities and make informed decisions based on statistical data.
