Standard Distribution Table

Understanding the Standard Distribution Table is crucial for anyone working in statistics, data analysis, or any field that requires a deep understanding of probability distributions. This table is a fundamental tool that provides the cumulative probabilities for the standard normal distribution, which is essential for various statistical tests and analyses. Whether you are a student, a researcher, or a professional, mastering the Standard Distribution Table can significantly enhance your analytical capabilities.

Table of Contents

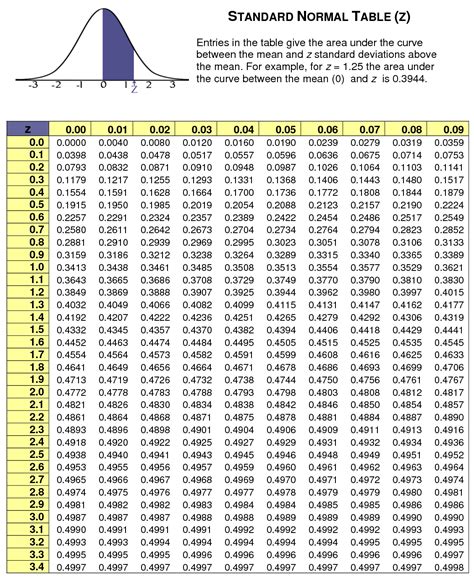

What is the Standard Distribution Table?

The Standard Distribution Table, also known as the Z-table, is a reference tool that lists the probabilities associated with the standard normal distribution. The standard normal distribution is a special case of the normal distribution with a mean of 0 and a standard deviation of 1. This table is used to find the probability that a variable falls within a certain range of values.

The table is typically organized with Z-scores in the left column and corresponding probabilities in the body of the table. Z-scores represent the number of standard deviations a data point is from the mean. By looking up a Z-score in the table, you can determine the probability that a variable is less than or equal to that Z-score.

Understanding Z-Scores

Z-scores are a standardized measure that allows for the comparison of data points from different distributions. They are calculated using the formula:

Z = (X - μ) / σ

Where:

X is the raw score.
μ is the mean of the population.
σ is the standard deviation of the population.

Z-scores indicate how many standard deviations a data point is from the mean. A Z-score of 0 means the data point is exactly at the mean, a positive Z-score means the data point is above the mean, and a negative Z-score means the data point is below the mean.

Using the Standard Distribution Table

To use the Standard Distribution Table, follow these steps:

Identify the Z-score for the data point you are interested in.
Locate the Z-score in the left column of the table.
Find the corresponding probability in the body of the table.

For example, if you have a Z-score of 1.23, you would look up 1.2 in the left column and 0.03 in the top row. The intersection of these values gives you the probability that a variable is less than or equal to 1.23 standard deviations above the mean.

It's important to note that the Standard Distribution Table provides cumulative probabilities. This means it gives the probability that a variable is less than or equal to a given Z-score. If you need the probability that a variable is greater than a given Z-score, you can subtract the cumulative probability from 1.

📝 Note: The Standard Distribution Table is typically one-tailed, meaning it provides probabilities for one side of the distribution. For two-tailed tests, you need to consider both sides of the distribution.

Interpreting the Standard Distribution Table

Interpreting the Standard Distribution Table involves understanding the relationship between Z-scores and probabilities. Here are some key points to consider:

The table provides cumulative probabilities, which means the probability of a variable being less than or equal to a given Z-score.
Positive Z-scores correspond to probabilities above the mean, while negative Z-scores correspond to probabilities below the mean.
The table is symmetric around the mean, so the probability of a Z-score of -1.23 is the same as the probability of a Z-score of 1.23, but on the opposite side of the mean.

For example, if you look up a Z-score of 1.64 in the table, you will find that the cumulative probability is approximately 0.95. This means there is a 95% chance that a variable is less than or equal to 1.64 standard deviations above the mean.

Applications of the Standard Distribution Table

The Standard Distribution Table has numerous applications in statistics and data analysis. Some of the most common uses include:

Hypothesis Testing: The table is used to determine critical values for hypothesis tests, such as the Z-test and T-test.
Confidence Intervals: It helps in calculating confidence intervals for population parameters.
Sampling Distributions: The table is used to understand the sampling distribution of the mean and other statistics.
Quality Control: In manufacturing, the table is used to monitor and control the quality of products.

For instance, in hypothesis testing, you might use the Standard Distribution Table to find the critical Z-score that corresponds to a given significance level (e.g., 0.05). This critical value is then used to determine whether to reject the null hypothesis.

Example: Calculating Probabilities

Let's go through an example to illustrate how to use the Standard Distribution Table to calculate probabilities.

Suppose you have a standard normal distribution and you want to find the probability that a variable is between -1.5 and 1.5 standard deviations from the mean.

Look up the Z-score of -1.5 in the table. The cumulative probability is approximately 0.0668.
Look up the Z-score of 1.5 in the table. The cumulative probability is approximately 0.9332.
Subtract the smaller cumulative probability from the larger one to find the probability between the two Z-scores: 0.9332 - 0.0668 = 0.8664.

Therefore, the probability that a variable is between -1.5 and 1.5 standard deviations from the mean is approximately 0.8664, or 86.64%.

📝 Note: When calculating probabilities between two Z-scores, always subtract the smaller cumulative probability from the larger one.

Two-Tailed Tests and the Standard Distribution Table

In some statistical tests, you may need to perform a two-tailed test, which considers both tails of the distribution. For a two-tailed test, you need to split the significance level (α) between the two tails.

For example, if you are performing a two-tailed test at the 0.05 significance level, you would split this level into two parts: 0.025 for each tail. You would then look up the Z-score that corresponds to a cumulative probability of 0.025 in the Standard Distribution Table. This Z-score is approximately 1.96.

Therefore, for a two-tailed test at the 0.05 significance level, the critical Z-scores are ±1.96. This means you would reject the null hypothesis if your test statistic falls outside the range of -1.96 to 1.96.

Common Mistakes to Avoid

When using the Standard Distribution Table, it's important to avoid common mistakes that can lead to incorrect interpretations. Some of these mistakes include:

Confusing Z-scores with raw scores: Remember that Z-scores are standardized measures, not raw data points.
Misinterpreting cumulative probabilities: Always ensure you understand whether you are dealing with one-tailed or two-tailed probabilities.
Ignoring the symmetry of the distribution: The standard normal distribution is symmetric, so probabilities for negative Z-scores can be found by looking up the corresponding positive Z-scores.

By being aware of these common mistakes, you can ensure that your use of the Standard Distribution Table is accurate and reliable.

Conclusion

The Standard Distribution Table is an indispensable tool for anyone working with probability distributions and statistical analyses. By understanding how to use this table, you can accurately calculate probabilities, perform hypothesis tests, and make informed decisions based on data. Whether you are a student learning the basics of statistics or a professional conducting complex analyses, mastering the Standard Distribution Table will enhance your analytical skills and improve the accuracy of your work.
