Understanding the intricacies of plumbing can be daunting, especially when it comes to selecting the right components. One of the most critical aspects is knowing the Standard Breaker Sizes for your electrical panel. This knowledge is essential for ensuring safety and compliance with building codes. Whether you're a DIY enthusiast or a professional electrician, this guide will walk you through the basics of breaker sizes, their importance, and how to choose the right one for your needs.
Understanding Breaker Sizes
Breaker sizes refer to the amperage rating of circuit breakers, which are designed to protect electrical circuits from overloads and short circuits. The size of a breaker determines the maximum amount of current it can safely handle before tripping. Common Standard Breaker Sizes include 15 amps, 20 amps, 30 amps, 40 amps, 50 amps, and 60 amps. Each size is suited for different types of electrical loads and applications.
Importance of Correct Breaker Sizes
Selecting the correct breaker size is crucial for several reasons:
- Safety: Using a breaker that is too small can cause it to trip frequently, leading to inconvenience and potential damage to electrical devices. Conversely, a breaker that is too large may not trip when it should, posing a fire hazard.
- Efficiency: Properly sized breakers ensure that your electrical system operates efficiently, reducing the risk of power outages and equipment failure.
- Compliance: Adhering to Standard Breaker Sizes ensures that your electrical system meets local building codes and safety standards.

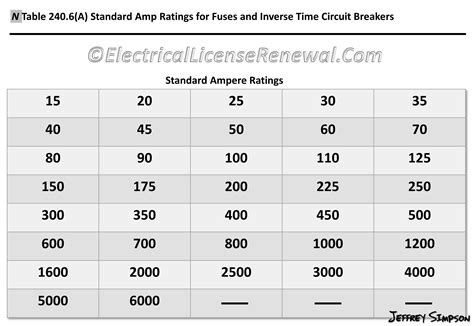

Common Standard Breaker Sizes
Here is a breakdown of the most common Standard Breaker Sizes and their typical applications:
| Breaker Size (Amps) | Typical Applications |
|---|---|
| 15 Amps | Standard household circuits, lighting, and small appliances. |
| 20 Amps | Kitchen appliances, power tools, and heavy-duty lighting. |
| 30 Amps | Electric water heaters, electric dryers, and some air conditioners. |
| 40 Amps | Electric ranges, large air conditioners, and some electric furnaces. |
| 50 Amps | Electric ranges, large air conditioners, and some electric furnaces. |
| 60 Amps | Large electric furnaces, electric water heaters, and some industrial equipment. |
🔧 Note: Always consult with a licensed electrician if you are unsure about the correct breaker size for your specific application.
How to Choose the Right Breaker Size
Choosing the right breaker size involves several steps. Here’s a guide to help you make an informed decision:
Assess Your Electrical Load
Determine the total amperage of the devices and appliances that will be connected to the circuit. This includes:
- Lighting fixtures
- Small appliances (e.g., toasters, coffee makers)
- Large appliances (e.g., refrigerators, air conditioners)
- Power tools
Add up the amperage ratings of all these devices to get the total load. Ensure that the breaker size you choose can handle this load without exceeding 80% of its capacity. This is known as the 80% rule, which helps prevent overloading.
Consider the Wire Gauge
The wire gauge (thickness) of the electrical wiring must match the breaker size. Using a wire that is too thin can cause overheating and potential fires. Here are some common wire gauges and their corresponding breaker sizes:
- 14 AWG wire: 15 amps
- 12 AWG wire: 20 amps
- 10 AWG wire: 30 amps
- 8 AWG wire: 40 amps
- 6 AWG wire: 50 amps
- 4 AWG wire: 60 amps
Always use the appropriate wire gauge for the breaker size to ensure safety and compliance with electrical codes.
Check Local Building Codes
Different regions have specific building codes and regulations regarding electrical installations. Ensure that your chosen breaker size complies with local codes. This may involve consulting with a local building inspector or a licensed electrician.
Installing Breakers
Once you have determined the correct Standard Breaker Sizes for your needs, the next step is installation. Here are the general steps for installing a breaker:
Turn Off the Power
Before beginning any electrical work, turn off the main power supply to your electrical panel. This ensures your safety and prevents any electrical hazards.
Remove the Panel Cover
Carefully remove the cover of the electrical panel to access the breaker slots. Ensure that the panel is completely disconnected from the power source.
Insert the New Breaker
Insert the new breaker into the appropriate slot. Make sure it is fully seated and securely fastened. Connect the wires to the breaker terminals, ensuring that the connections are tight and secure.
Restore Power
Once the new breaker is installed and all connections are secure, restore power to the electrical panel. Test the new breaker to ensure it is functioning correctly.
🛠️ Note: If you are not experienced with electrical work, it is highly recommended to hire a licensed electrician to install breakers. Improper installation can lead to serious electrical hazards.
Maintaining Your Electrical System
Maintaining your electrical system is crucial for ensuring its longevity and safety. Regular inspections and maintenance can help identify potential issues before they become major problems. Here are some tips for maintaining your electrical system:
- Inspect breakers regularly for signs of wear or damage.
- Check for loose connections or frayed wires.
- Ensure that all electrical components are properly grounded.
- Keep the electrical panel clean and free of debris.
- Schedule regular inspections by a licensed electrician.
By following these maintenance tips, you can ensure that your electrical system remains safe and reliable.
In summary, understanding Standard Breaker Sizes is essential for ensuring the safety and efficiency of your electrical system. By choosing the correct breaker size, you can protect your electrical circuits from overloads and short circuits, comply with building codes, and maintain the overall health of your electrical system. Regular maintenance and inspections can further enhance the longevity and reliability of your electrical components. Always consult with a licensed electrician if you are unsure about any aspect of your electrical system.
