St Depression On Ecg

Electrocardiogram (ECG) is a crucial diagnostic tool in cardiology, providing valuable insights into the electrical activity of the heart. One of the critical conditions that can be identified through an ECG is ST depression. Understanding ST depression on ECG is essential for healthcare professionals to diagnose and manage various cardiac conditions effectively.

Table of Contents

Understanding ST Depression on ECG

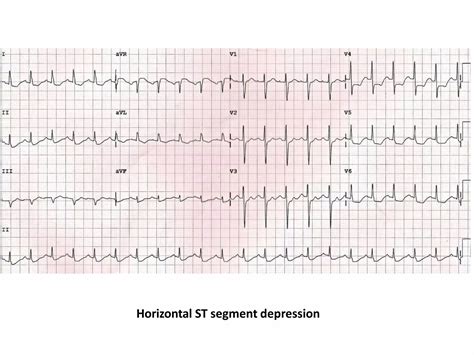

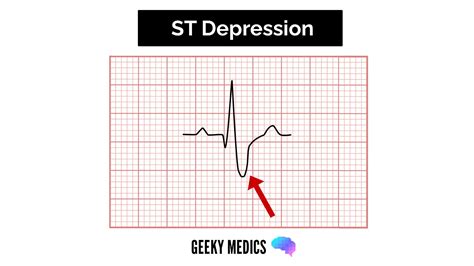

ST depression on ECG refers to a downward shift in the ST segment, which is the portion of the ECG waveform that occurs between the end of the QRS complex and the beginning of the T wave. This segment represents the period when the ventricles are depolarized. ST depression can indicate several cardiac conditions, including ischemia, myocardial infarction, and other forms of heart disease.

Causes of ST Depression on ECG

ST depression can be caused by various factors, each with its own clinical implications. Some of the most common causes include:

Myocardial Ischemia: This occurs when there is an insufficient blood supply to the heart muscle, often due to coronary artery disease. Ischemia can cause ST depression, which may be transient or persistent depending on the severity and duration of the ischemia.
Myocardial Infarction: A heart attack, or myocardial infarction, can also cause ST depression. This is often seen in non-ST elevation myocardial infarction (NSTEMI), where the ECG shows ST depression rather than ST elevation.
Left Ventricular Hypertrophy: This condition, where the left ventricle of the heart thickens, can also lead to ST depression. It is often associated with hypertension and other forms of heart disease.
Electrolyte Imbalances: Abnormal levels of electrolytes, such as potassium and calcium, can affect the electrical activity of the heart and cause ST depression.
Drug Toxicity: Certain medications, such as digoxin, can cause ST depression as a side effect.

Interpreting ST Depression on ECG

Interpreting ST depression on an ECG requires a thorough understanding of the ECG waveform and the clinical context. Key points to consider include:

Location of ST Depression: The location of the ST depression can provide clues about the affected area of the heart. For example, ST depression in leads V1-V3 may indicate anterior ischemia, while ST depression in leads II, III, and aVF may suggest inferior ischemia.
Depth of ST Depression: The depth of the ST depression can indicate the severity of the ischemia. Deeper ST depression generally suggests more severe ischemia.
Duration of ST Depression: The duration of the ST depression can also provide important information. Transient ST depression may indicate intermittent ischemia, while persistent ST depression may suggest a more chronic condition.
Associated ECG Changes: Other ECG changes, such as T-wave inversions or Q waves, can provide additional information about the underlying condition.

It is important to note that ST depression can also be a normal variant in some individuals, particularly in leads V1-V3. This is known as early repolarization and is generally benign. However, it is crucial to differentiate this from pathological ST depression, which requires careful clinical correlation.

Diagnostic Workup for ST Depression on ECG

When ST depression is identified on an ECG, further diagnostic workup is often necessary to determine the underlying cause and guide management. Common diagnostic tests include:

Cardiac Biomarkers: Blood tests for cardiac biomarkers, such as troponin, can help identify myocardial injury.
Echocardiography: This imaging test uses ultrasound to visualize the heart's structure and function, providing information about wall motion abnormalities and valve function.
Stress Testing: Exercise or pharmacological stress testing can help identify inducible ischemia and assess the severity of coronary artery disease.
Coronary Angiography: This invasive procedure involves inserting a catheter into the coronary arteries to visualize any blockages or narrowing.

In some cases, additional tests such as cardiac magnetic resonance imaging (MRI) or computed tomography (CT) angiography may be performed to provide more detailed information about the heart's structure and function.

Management of ST Depression on ECG

The management of ST depression on ECG depends on the underlying cause and the severity of the condition. Common management strategies include:

Medical Therapy: Medications such as nitrates, beta-blockers, and calcium channel blockers can be used to manage ischemia and reduce the workload on the heart.
Lifestyle Modifications: Lifestyle changes, such as smoking cessation, a healthy diet, regular exercise, and stress management, can help improve overall cardiovascular health.
Revascularization Procedures: In cases of severe coronary artery disease, procedures such as percutaneous coronary intervention (PCI) or coronary artery bypass grafting (CABG) may be necessary to restore blood flow to the heart.

It is essential to tailor the management plan to the individual patient's needs and clinical context. Regular follow-up and monitoring are crucial to assess the effectiveness of the treatment and make any necessary adjustments.

Prognosis of ST Depression on ECG

The prognosis of ST depression on ECG varies depending on the underlying cause and the severity of the condition. In general, early diagnosis and appropriate management can improve outcomes and reduce the risk of complications. However, some patients may experience recurrent ischemia or other cardiac events despite optimal management.

Regular follow-up and monitoring are essential to assess the patient's condition and make any necessary adjustments to the treatment plan. Patients with ST depression on ECG should be educated about the importance of adhering to their medication regimen, maintaining a healthy lifestyle, and seeking prompt medical attention if they experience symptoms of ischemia or other cardiac events.

📝 Note: The prognosis can vary significantly based on individual factors, and it is crucial to consult with a healthcare professional for personalized information.

Prevention of ST Depression on ECG

Preventing ST depression on ECG involves addressing the underlying risk factors for cardiovascular disease. Key preventive measures include:

Healthy Lifestyle: Maintaining a healthy lifestyle, including a balanced diet, regular exercise, and avoiding tobacco and excessive alcohol, can significantly reduce the risk of cardiovascular disease.
Blood Pressure Control: Managing hypertension through lifestyle modifications and medications can help prevent left ventricular hypertrophy and other forms of heart disease.
Cholesterol Management: Controlling cholesterol levels through diet, exercise, and medications can reduce the risk of coronary artery disease and ischemia.
Diabetes Management: Effective management of diabetes can help prevent complications such as coronary artery disease and ischemia.

Regular medical check-ups and screenings can help identify and manage risk factors early, reducing the likelihood of developing ST depression on ECG.

Case Studies and Examples

To illustrate the clinical significance of ST depression on ECG, consider the following case studies:

Case Study 1: Acute Coronary Syndrome

A 55-year-old male presented to the emergency department with chest pain and shortness of breath. His ECG showed ST depression in leads V4-V6, suggestive of anterior ischemia. Cardiac biomarkers were elevated, indicating myocardial injury. The patient was diagnosed with non-ST elevation myocardial infarction (NSTEMI) and underwent urgent coronary angiography, which revealed a significant stenosis in the left anterior descending artery. He was successfully treated with percutaneous coronary intervention (PCI) and discharged with a regimen of antiplatelet therapy, beta-blockers, and statins.

Case Study 2: Left Ventricular Hypertrophy

A 60-year-old female with a history of hypertension presented for a routine check-up. Her ECG showed ST depression in leads V5-V6, along with left ventricular hypertrophy. Echocardiography confirmed the presence of left ventricular hypertrophy with normal systolic function. The patient was started on a regimen of antihypertensive medications and advised to follow a low-sodium diet and regular exercise. Regular follow-up visits were scheduled to monitor her blood pressure and cardiac function.

Case Study 3: Early Repolarization

A 30-year-old male athlete presented for a pre-participation screening. His ECG showed ST depression in leads V1-V3, suggestive of early repolarization. The patient was asymptomatic and had no history of cardiac disease. Further evaluation, including echocardiography and stress testing, was normal. The patient was reassured that the ECG findings were benign and was cleared for athletic participation.

Conclusion

ST depression on ECG is a critical finding that can indicate various cardiac conditions, including ischemia, myocardial infarction, and left ventricular hypertrophy. Understanding the causes, interpretation, and management of ST depression is essential for healthcare professionals to provide effective care and improve patient outcomes. Early diagnosis, appropriate management, and regular follow-up are key to preventing complications and enhancing the quality of life for patients with ST depression on ECG.
