St Depression Ecg

Electrocardiogram (ECG) is a crucial diagnostic tool in cardiology, providing valuable insights into the electrical activity of the heart. One of the critical aspects of ECG interpretation is the identification and analysis of ST depression. ST depression ECG is a significant finding that can indicate various cardiac conditions, ranging from ischemia to electrolyte imbalances. Understanding the nuances of ST depression on an ECG is essential for accurate diagnosis and effective treatment.

Table of Contents

Understanding ST Depression on ECG

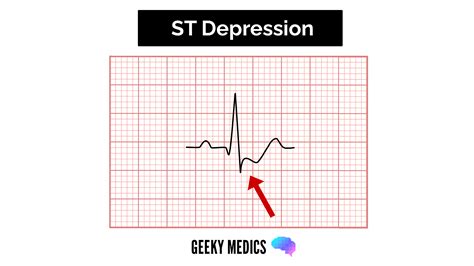

ST depression on an ECG refers to the downward displacement of the ST segment from the baseline. The ST segment is the portion of the ECG waveform that connects the end of the QRS complex to the beginning of the T wave. Normally, the ST segment should be isoelectric, meaning it should be at the same level as the baseline. However, in certain conditions, the ST segment may deviate downward, indicating ST depression.

Causes of ST Depression

ST depression can be caused by a variety of factors, including:

Myocardial Ischemia: This is one of the most common causes of ST depression. Ischemia occurs when there is a reduction in blood flow to the heart muscle, often due to coronary artery disease. The lack of oxygen can lead to changes in the electrical activity of the heart, resulting in ST depression.
Electrolyte Imbalances: Abnormal levels of electrolytes such as potassium, calcium, and magnesium can affect the heart's electrical activity, leading to ST depression.
Left Ventricular Hypertrophy: This condition, where the left ventricle of the heart thickens, can cause ST depression due to the increased workload on the heart muscle.
Digoxin Toxicity: Digoxin is a medication used to treat heart failure and arrhythmias. However, high levels of digoxin can cause ST depression and other ECG changes.
Pericarditis: Inflammation of the pericardium, the sac surrounding the heart, can also lead to ST depression.

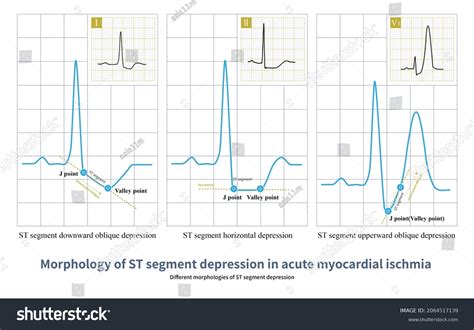

Types of ST Depression

ST depression can be classified into different types based on its morphology and clinical significance:

Horizontal ST Depression: This type of ST depression is characterized by a flat or horizontal ST segment that is depressed below the baseline. It is often associated with myocardial ischemia and is considered a more serious finding.
Downsloping ST Depression: In this type, the ST segment slopes downward from the end of the QRS complex to the beginning of the T wave. It is also indicative of ischemia and can be seen in conditions like Prinzmetal's angina.
Upsloping ST Depression: This type shows an upward slope from the end of the QRS complex to the beginning of the T wave. It is generally considered less specific for ischemia and can be seen in conditions like left ventricular hypertrophy.

Diagnostic Criteria for ST Depression

To accurately diagnose ST depression, several criteria must be met:

The ST segment must be depressed at least 0.5 mm (0.05 mV) below the baseline.
The depression must be present in at least two contiguous leads.
The depression should be consistent with the patient's symptoms and clinical context.

It is important to note that ST depression can be a dynamic finding, meaning it may change over time or with different conditions. Therefore, serial ECGs and continuous monitoring may be necessary for accurate diagnosis and management.

Clinical Significance of ST Depression

ST depression on an ECG has significant clinical implications. It can indicate underlying cardiac conditions that require prompt evaluation and treatment. Some of the key clinical significances include:

Risk Stratification: ST depression is a marker of increased cardiovascular risk. Patients with ST depression on their ECG are at a higher risk of developing coronary artery disease, heart failure, and other cardiac complications.
Prognostic Indicator: The presence and extent of ST depression can provide prognostic information. For example, patients with significant ST depression during an exercise stress test have a higher risk of adverse cardiac events.
Guidance for Treatment: Identifying ST depression can guide treatment decisions. For instance, patients with ST depression due to ischemia may require revascularization procedures such as angioplasty or bypass surgery.

Management of ST Depression

The management of ST depression depends on the underlying cause and the clinical context. Some common management strategies include:

Medical Therapy: Medications such as nitrates, beta-blockers, and calcium channel blockers can be used to manage ischemia and reduce the workload on the heart.
Revascularization Procedures: In cases of severe ischemia, procedures like angioplasty or coronary artery bypass grafting (CABG) may be necessary to restore blood flow to the heart.
Electrolyte Correction: If ST depression is due to electrolyte imbalances, correcting the abnormal levels through dietary changes, medications, or intravenous fluids may be required.
Monitoring and Follow-up: Regular monitoring and follow-up are essential to assess the response to treatment and to detect any changes in the patient's condition.

📝 Note: Management strategies should be tailored to the individual patient's needs and clinical context. Consultation with a cardiologist is recommended for optimal management.

Interpreting ST Depression in Different Clinical Scenarios

ST depression can manifest differently in various clinical scenarios. Understanding these differences is crucial for accurate interpretation and management.

ST Depression During Exercise Stress Test

During an exercise stress test, ST depression can indicate myocardial ischemia. The severity and duration of ST depression can provide valuable information about the extent of ischemia and the patient's cardiovascular risk. Horizontal or downsloping ST depression during exercise is generally considered more significant than upsloping ST depression.

ST Depression in Acute Coronary Syndrome

In patients with acute coronary syndrome (ACS), ST depression can be a sign of non-ST elevation myocardial infarction (NSTEMI) or unstable angina. Prompt recognition and management of ST depression in this context are crucial to prevent further cardiac damage and improve outcomes.

ST Depression in Left Ventricular Hypertrophy

In patients with left ventricular hypertrophy, ST depression can be a normal finding due to the increased workload on the heart muscle. However, it is important to differentiate this from ST depression due to ischemia, as the management strategies may differ.

Challenges in Interpreting ST Depression

Interpreting ST depression on an ECG can be challenging due to several factors:

Variability in ECG Morphology: The morphology of ST depression can vary, making it difficult to differentiate between different types and causes.
Overlapping Conditions: ST depression can be seen in multiple conditions, and overlapping findings can complicate the interpretation.
Dynamic Nature: ST depression can change over time, requiring serial ECGs and continuous monitoring for accurate diagnosis.

To overcome these challenges, it is essential to consider the clinical context, patient symptoms, and other diagnostic tests. Collaboration with a cardiologist can also enhance the accuracy of interpretation and management.

📝 Note: Accurate interpretation of ST depression requires a comprehensive approach that includes clinical evaluation, serial ECGs, and other diagnostic tests.

Future Directions in ST Depression Research

Research on ST depression continues to evolve, with a focus on improving diagnostic accuracy and management strategies. Some of the key areas of research include:

Advanced ECG Techniques: New ECG techniques, such as high-resolution ECG and vectorcardiography, are being explored to enhance the detection and interpretation of ST depression.
Biomarkers: The use of biomarkers, such as troponins and BNP, in conjunction with ECG findings can improve the diagnosis and risk stratification of patients with ST depression.
Machine Learning and AI: Machine learning algorithms and artificial intelligence are being developed to assist in the interpretation of ECG findings, including ST depression. These tools can help identify subtle changes and improve diagnostic accuracy.

These advancements hold promise for enhancing the management of patients with ST depression and improving cardiovascular outcomes.

ST depression on an ECG is a critical finding that requires careful interpretation and management. Understanding the causes, types, and clinical significance of ST depression is essential for accurate diagnosis and effective treatment. By considering the clinical context, patient symptoms, and other diagnostic tests, healthcare providers can optimize the management of patients with ST depression and improve their cardiovascular outcomes. Continuous monitoring, serial ECGs, and collaboration with cardiologists are key to ensuring the best possible care for these patients.
