Speeds And Feeds

Understanding the intricacies of speeds and feeds is crucial for anyone involved in machining and manufacturing. These terms refer to the cutting speed and feed rate used in machining operations, and optimizing them can significantly impact the efficiency, quality, and cost of production. This blog post delves into the fundamentals of speeds and feeds, their importance, and how to calculate and optimize them for various machining processes.

Table of Contents

Understanding Speeds and Feeds

Speeds and feeds are two fundamental parameters in machining that determine how fast the cutting tool moves through the material and how much material is removed in each pass. Understanding these parameters is essential for achieving optimal performance and extending the life of your cutting tools.

What is Cutting Speed?

Cutting speed, often referred to as surface speed or peripheral speed, is the speed at which the cutting edge of the tool moves through the material. It is typically measured in surface feet per minute (SFM) or meters per minute (m/min). The cutting speed is influenced by several factors, including the type of material being cut, the type of cutting tool, and the desired finish.

What is Feed Rate?

Feed rate, on the other hand, is the distance the cutting tool advances into the material per revolution of the spindle or per unit of time. It is usually measured in inches per revolution (IPR) or millimeters per revolution (mm/rev). The feed rate determines the thickness of the chip being removed and affects the surface finish and tool life.

Importance of Optimizing Speeds and Feeds

Optimizing speeds and feeds is critical for several reasons:

Tool Life: Proper speeds and feeds can extend the life of your cutting tools, reducing the frequency of tool changes and downtime.
Surface Finish: Correct settings can improve the surface finish of the machined part, reducing the need for additional finishing operations.
Productivity: Optimized speeds and feeds can increase material removal rates, leading to faster production times and higher productivity.
Cost Efficiency: By reducing tool wear and increasing productivity, optimized speeds and feeds can lower overall production costs.

Calculating Speeds and Feeds

Calculating the optimal speeds and feeds involves considering several factors, including the material being cut, the type of cutting tool, and the desired outcome. Here are the basic formulas and steps to calculate speeds and feeds:

Calculating Cutting Speed

The cutting speed (Vc) can be calculated using the formula:

Vc = π * D * N

Where:

Vc = Cutting Speed (SFM or m/min)
D = Diameter of the cutting tool (inches or mm)
N = Spindle Speed (RPM)

To find the spindle speed (N), you can rearrange the formula:

N = Vc / (π * D)

Calculating Feed Rate

The feed rate (F) can be calculated using the formula:

F = f * N

Where:

F = Feed Rate (IPR or mm/rev)
f = Feed per Tooth (IPT or mm/tooth)
N = Spindle Speed (RPM)

Feed per tooth (f) is typically provided by the tool manufacturer and depends on the type of cutting tool and the material being cut.

Optimizing Speeds and Feeds for Different Materials

Different materials require different speeds and feeds to achieve optimal results. Here are some general guidelines for common materials:

Steel

For steel, the cutting speed typically ranges from 90 to 250 SFM (27 to 76 m/min), depending on the type of steel and the desired finish. The feed rate can vary from 0.005 to 0.020 IPR (0.13 to 0.51 mm/rev).

Aluminum

Aluminum can be machined at higher speeds due to its softer nature. The cutting speed for aluminum usually ranges from 500 to 1000 SFM (152 to 305 m/min), with feed rates between 0.008 and 0.025 IPR (0.20 to 0.64 mm/rev).

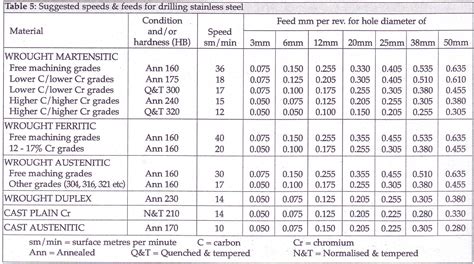

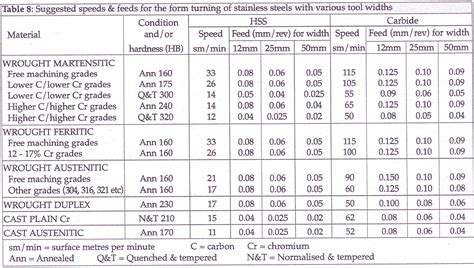

Stainless Steel

Stainless steel is more challenging to machine due to its hardness and tendency to work harden. The cutting speed for stainless steel is typically between 60 and 150 SFM (18 to 46 m/min), with feed rates ranging from 0.003 to 0.015 IPR (0.08 to 0.38 mm/rev).

Titanium

Titanium is known for its high strength and low thermal conductivity, making it difficult to machine. The cutting speed for titanium is usually between 30 and 90 SFM (9 to 27 m/min), with feed rates between 0.002 and 0.010 IPR (0.05 to 0.25 mm/rev).

Factors Affecting Speeds and Feeds

Several factors can affect the optimal speeds and feeds for a given machining operation. Understanding these factors can help you make more informed decisions and achieve better results.

Tool Material

The material of the cutting tool can significantly impact the optimal speeds and feeds. For example, carbide tools can withstand higher cutting speeds and feed rates compared to high-speed steel (HSS) tools.

Tool Geometry

The geometry of the cutting tool, including the rake angle, clearance angle, and cutting edge radius, can affect the optimal speeds and feeds. Different geometries are suited for different materials and machining operations.

Coolant Use

The use of coolant can also influence the optimal speeds and feeds. Coolant helps to reduce heat generation, which can extend tool life and allow for higher cutting speeds and feed rates.

Machine Tool Rigidity

The rigidity of the machine tool can affect the optimal speeds and feeds. A more rigid machine can handle higher cutting forces, allowing for higher feed rates and cutting speeds.

Common Mistakes to Avoid

When setting speeds and feeds, it's essential to avoid common mistakes that can lead to poor results and increased costs. Here are some pitfalls to watch out for:

Using Incorrect Values: Always use the correct values for cutting speed and feed rate based on the material and tool being used.
Ignoring Tool Wear: Regularly monitor tool wear and adjust speeds and feeds as needed to maintain optimal performance.
Overlooking Coolant: Proper coolant use can significantly extend tool life and improve surface finish.
Neglecting Machine Capabilities: Ensure that the machine tool is capable of handling the selected speeds and feeds.

🛑 Note: Always refer to the tool manufacturer's recommendations for optimal speeds and feeds, as these values can vary based on specific tool designs and materials.

Advanced Techniques for Optimizing Speeds and Feeds

For those looking to take their machining operations to the next level, advanced techniques can help optimize speeds and feeds even further. These techniques often involve the use of specialized software and cutting-edge technology.

High-Speed Machining (HSM)

High-Speed Machining (HSM) involves using very high spindle speeds and feed rates to achieve faster material removal rates and improved surface finishes. HSM requires specialized tools and machine tools capable of handling the high speeds and forces involved.

Adaptive Control

Adaptive control systems use sensors and feedback mechanisms to automatically adjust speeds and feeds in real-time based on the cutting conditions. This technology can help optimize tool life, surface finish, and productivity by responding to changes in the machining process.

Simulation Software

Simulation software can model the machining process and predict the optimal speeds and feeds for a given operation. These tools can help identify potential issues before they occur and optimize the machining process for better results.

Case Studies

To illustrate the importance of optimizing speeds and feeds, let's look at a couple of case studies:

Case Study 1: Increasing Productivity in Aluminum Machining

A manufacturing company specializing in aluminum parts was experiencing long cycle times and frequent tool changes. By optimizing the cutting speed and feed rate for their specific material and tooling, they were able to increase productivity by 30% and reduce tool changes by 50%.

Case Study 2: Improving Surface Finish in Steel Machining

Another company machining stainless steel parts was struggling with poor surface finishes and high tool wear. By adjusting the speeds and feeds and implementing a coolant system, they achieved a significant improvement in surface finish and extended tool life by 40%.

In both cases, understanding and optimizing speeds and feeds played a crucial role in achieving better results and improving overall efficiency.

Optimizing speeds and feeds is a critical aspect of machining that can significantly impact the efficiency, quality, and cost of production. By understanding the fundamentals of cutting speed and feed rate, and considering the various factors that influence them, you can achieve optimal results and extend the life of your cutting tools. Whether you’re a hobbyist or a professional machinist, mastering the art of optimizing speeds and feeds is essential for success in the world of machining.
