Speaker Wire Gauge Chart

When it comes to setting up a high-quality audio system, one of the most critical aspects often overlooked is the choice of speaker wire. The Speaker Wire Gauge Chart is an essential tool that helps you select the right wire gauge for your specific needs. Understanding the importance of wire gauge and how to use a Speaker Wire Gauge Chart can significantly enhance the performance of your audio setup.

Table of Contents

Understanding Speaker Wire Gauge

Speaker wire gauge refers to the thickness of the wire, which is measured using the American Wire Gauge (AWG) system. The gauge number indicates the diameter of the wire; the lower the number, the thicker the wire. Thicker wires can carry more current and are less likely to suffer from signal loss over long distances. This is crucial for maintaining audio quality, especially in larger rooms or outdoor setups.

Why Wire Gauge Matters

Choosing the correct wire gauge is vital for several reasons:

Signal Integrity: Thicker wires reduce resistance, ensuring that the signal from your amplifier reaches your speakers with minimal loss.
Power Handling: Thicker wires can handle more power, which is essential for high-wattage speakers.
Distance: For longer runs, thicker wires are necessary to maintain signal quality and prevent voltage drop.

Using a Speaker Wire Gauge Chart

A Speaker Wire Gauge Chart is a handy reference that helps you determine the appropriate wire gauge based on the power of your amplifier, the impedance of your speakers, and the length of the wire run. Here’s a basic guide on how to use one:

1. Determine the Power of Your Amplifier: Check the specifications of your amplifier to find out its power output in watts.

2. Identify the Impedance of Your Speakers: Speakers typically have an impedance rating, usually 4, 8, or 16 ohms. This information is usually found on the speaker itself or in the manufacturer’s documentation.

3. Measure the Length of the Wire Run: Calculate the total length of wire needed from the amplifier to each speaker. Remember to account for any additional length needed for connections and routing.

4. Consult the Speaker Wire Gauge Chart: Use the chart to find the recommended wire gauge based on the power, impedance, and length. For example, if you have a 100-watt amplifier, 8-ohm speakers, and a 20-foot wire run, the chart might recommend a 14 AWG wire.

Example of a Speaker Wire Gauge Chart

Power (Watts)	Impedance (Ohms)	Wire Length (Feet)	Recommended Wire Gauge (AWG)
50	8	10	16
100	8	20	14
200	4	30	12
300	4	40	10

📝 Note: This is a simplified chart. For precise recommendations, consult a detailed Speaker Wire Gauge Chart or use an online calculator that takes into account additional factors like voltage drop and power loss.

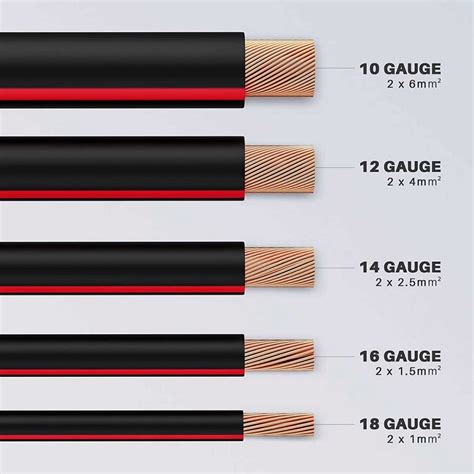

Common Wire Gauges and Their Uses

Here are some common wire gauges and their typical applications:

18 AWG: Suitable for short runs (up to 8 feet) and low-power applications (up to 50 watts).
16 AWG: Ideal for medium-length runs (up to 20 feet) and medium-power applications (up to 100 watts).
14 AWG: Recommended for longer runs (up to 30 feet) and higher-power applications (up to 200 watts).
12 AWG: Best for very long runs (up to 50 feet) and high-power applications (up to 300 watts).
10 AWG: Suitable for extremely long runs (over 50 feet) and very high-power applications (over 300 watts).

Additional Considerations

While the Speaker Wire Gauge Chart is a valuable tool, there are other factors to consider when choosing speaker wire:

Wire Material: Copper is the most common material for speaker wire due to its excellent conductivity. Some wires are made of oxygen-free copper (OFC) or silver-plated copper for even better performance.
Insulation: The insulation material can affect the wire’s flexibility and durability. Common insulation materials include polyvinyl chloride (PVC) and polyethylene (PE).
Shielding: For environments with high electromagnetic interference (EMI), consider using shielded speaker wire to minimize noise and distortion.

Installation Tips

Proper installation is crucial for maintaining the quality of your audio system. Here are some tips to ensure a successful installation:

Measure Twice, Cut Once: Accurately measure the length of wire needed to avoid shortages or excess.
Use High-Quality Connectors: Invest in good-quality banana plugs, spade connectors, or bare wire connectors to ensure a secure and reliable connection.
Avoid Sharp Bends: Sharp bends can damage the wire and affect signal quality. Use gentle curves and avoid kinks.
Secure the Wire: Use cable ties or clips to secure the wire along its run, preventing it from moving or getting damaged.

🔧 Note: Always turn off and unplug your audio equipment before handling the wires to avoid electrical hazards.

Troubleshooting Common Issues

Even with careful planning and installation, issues can arise. Here are some common problems and their solutions:

Poor Sound Quality: Check for loose connections, damaged wire, or incorrect wire gauge. Ensure that the wire is properly secured and that there are no kinks or sharp bends.
Interference: If you hear humming or buzzing, it could be due to electromagnetic interference. Try using shielded wire or moving the wire away from potential sources of interference.
Signal Loss: For long wire runs, consider using a thicker wire gauge or an amplifier with higher power output to compensate for signal loss.

🛠️ Note: If you continue to experience issues, consult a professional audio technician for a thorough inspection and diagnosis.

In conclusion, understanding and utilizing a Speaker Wire Gauge Chart is essential for optimizing your audio system’s performance. By selecting the appropriate wire gauge, you can ensure signal integrity, power handling, and minimal loss over distance. Whether you’re setting up a home theater, a live sound system, or a simple stereo setup, choosing the right speaker wire is a crucial step in achieving the best possible audio quality. Always consider the power of your amplifier, the impedance of your speakers, and the length of the wire run when making your selection. With the right wire and proper installation, you can enjoy a superior audio experience.
