Spark Plug Gap Chart

Maintaining your vehicle's performance is crucial for ensuring safety and efficiency on the road. One often overlooked aspect of vehicle maintenance is the condition of the spark plugs. Spark plugs play a vital role in the ignition process, and their performance can significantly impact your engine's efficiency and overall health. Understanding the Spark Plug Gap Chart is essential for anyone looking to optimize their vehicle's performance.

Table of Contents

Understanding Spark Plugs

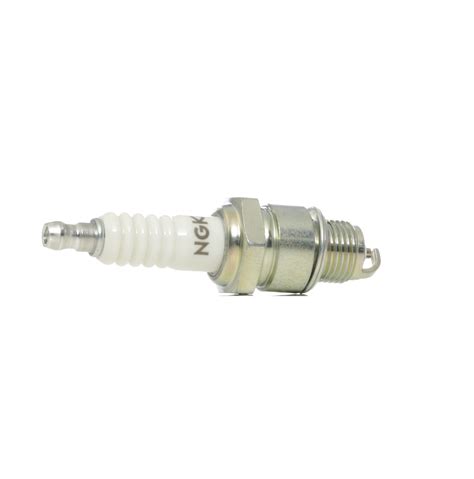

Spark plugs are small but critical components in your vehicle's engine. They are responsible for igniting the fuel-air mixture in the combustion chamber, which powers the engine. Over time, spark plugs can wear out, become fouled, or develop gaps that are either too wide or too narrow. This can lead to misfires, reduced fuel efficiency, and even engine damage if left unchecked.

What is a Spark Plug Gap?

The spark plug gap refers to the distance between the center and ground electrodes of the spark plug. This gap is crucial because it determines the voltage required to create a spark that ignites the fuel-air mixture. If the gap is too wide, the spark may not jump across, leading to misfires. If the gap is too narrow, the spark may be too weak to ignite the mixture effectively.

The Importance of the Spark Plug Gap Chart

A Spark Plug Gap Chart is a valuable resource that provides the recommended gap settings for different types of spark plugs and vehicles. This chart ensures that your spark plugs are set to the manufacturer's specifications, optimizing engine performance and fuel efficiency. Using a Spark Plug Gap Chart can help you avoid common issues such as:

Misfires
Reduced fuel efficiency
Engine hesitation
Difficulty starting the engine
Increased emissions

How to Use a Spark Plug Gap Chart

Using a Spark Plug Gap Chart is straightforward. Here are the steps to follow:

Identify the make and model of your vehicle.
Determine the type of spark plug your vehicle uses. This information can usually be found in your vehicle's owner manual or on the spark plug itself.
Consult the Spark Plug Gap Chart to find the recommended gap setting for your specific spark plug and vehicle.
Use a spark plug gap tool to adjust the gap to the recommended setting. Most gap tools have a built-in gauge that allows you to measure and adjust the gap accurately.
Reinstall the spark plugs and test your vehicle to ensure it is running smoothly.

🔧 Note: Always refer to your vehicle's owner manual for specific instructions and recommendations regarding spark plug maintenance.

Common Spark Plug Gap Settings

While the exact gap setting can vary depending on the vehicle and spark plug type, there are some common gap settings that are frequently recommended. Here is a table of common spark plug gap settings for reference:

Vehicle Type	Spark Plug Type	Recommended Gap (in inches)
Gasoline Engines	Standard	0.030 - 0.060
Diesel Engines	Standard	0.020 - 0.040
High-Performance Vehicles	Iridium or Platinum	0.028 - 0.040
Motorcycles	Standard	0.025 - 0.035

Adjusting Spark Plug Gaps

Adjusting the gap on your spark plugs is a simple process that can be done with a few basic tools. Here are the steps to adjust the gap:

Remove the spark plug from the engine. This may require a spark plug socket and an extension.
Inspect the spark plug for any signs of wear or damage. If the spark plug is in poor condition, it may need to be replaced.

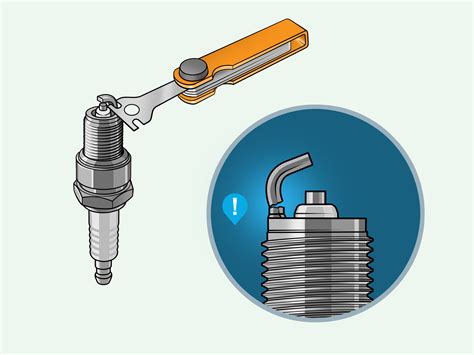

Use a spark plug gap tool to measure the current gap. Place the spark plug in the gap tool and adjust the gap by bending the ground electrode until it matches the recommended setting.
Reinstall the spark plug and tighten it to the manufacturer's specifications. Be careful not to overtighten, as this can damage the spark plug or the engine.
Repeat the process for all spark plugs in the engine.

🔧 Note: Always ensure that the spark plug is clean and free of debris before reinstalling it. This will help prevent misfires and ensure optimal performance.

Signs of Incorrect Spark Plug Gaps

If your spark plugs are not gapped correctly, you may experience several symptoms that indicate a problem. Some common signs of incorrect spark plug gaps include:

Engine misfires
Reduced fuel efficiency
Difficulty starting the engine
Rough idling
Engine hesitation or stalling
Increased emissions

If you notice any of these symptoms, it is a good idea to check your spark plug gaps and adjust them as needed. Regular maintenance and inspection of your spark plugs can help prevent these issues and ensure that your vehicle runs smoothly.

Maintaining Spark Plug Health

In addition to checking and adjusting the spark plug gaps, there are several other steps you can take to maintain the health of your spark plugs:

Regularly inspect your spark plugs for signs of wear or damage. Replace them as needed.
Use high-quality fuel to reduce the buildup of deposits on the spark plugs.
Avoid excessive idling, as this can cause the spark plugs to become fouled.
Follow the manufacturer's recommended maintenance schedule for spark plug replacement.
Ensure that your engine is properly tuned and that all other components are in good working order.

By following these steps, you can help extend the life of your spark plugs and ensure that your vehicle runs efficiently and reliably.

Regular maintenance of your spark plugs, including checking and adjusting the gap using a Spark Plug Gap Chart, is essential for keeping your vehicle in top condition. By understanding the importance of the spark plug gap and how to adjust it, you can optimize your engine’s performance, improve fuel efficiency, and avoid costly repairs. Always refer to your vehicle’s owner manual for specific instructions and recommendations regarding spark plug maintenance.
