Understanding and maintaining your vehicle's engine is crucial for ensuring optimal performance and longevity. One of the key components that often requires attention is the spark plug. Spark plug fouling can significantly impact engine performance, fuel efficiency, and emissions. This post will delve into the intricacies of spark plug fouling, its causes, symptoms, and how to use a Spark Plug Fouling Chart to diagnose and address the issue.
Understanding Spark Plug Fouling
Spark plug fouling occurs when deposits accumulate on the spark plug's electrodes, insulating the spark plug and preventing it from firing correctly. This can lead to a variety of engine problems, including misfires, reduced fuel efficiency, and increased emissions. Fouling can be caused by several factors, including:
- Incorrect spark plug type
- Poor fuel quality
- Engine oil contamination
- Improper engine tuning
- Excessive idling
Symptoms of Spark Plug Fouling
Recognizing the symptoms of spark plug fouling is the first step in addressing the issue. Common symptoms include:
- Difficulty starting the engine
- Rough idling
- Reduced engine power
- Poor fuel economy
- Increased emissions
- Engine misfires
If you notice any of these symptoms, it's essential to inspect your spark plugs and determine the cause of the fouling.
Using a Spark Plug Fouling Chart
A Spark Plug Fouling Chart is a valuable tool for diagnosing the type of fouling affecting your spark plugs. By examining the deposits on the spark plug, you can identify the underlying cause and take appropriate action. Here’s how to use a Spark Plug Fouling Chart effectively:
Inspecting the Spark Plug

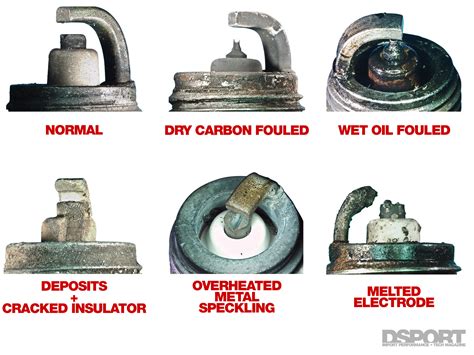

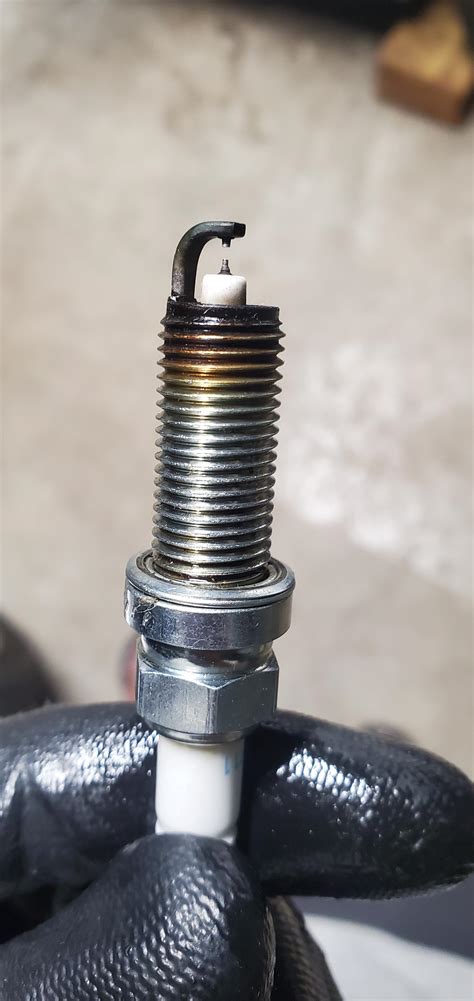

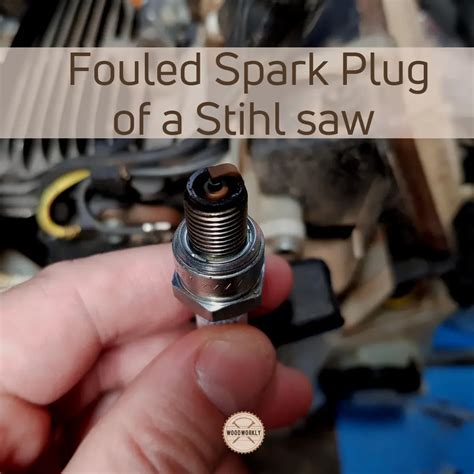

Begin by removing the spark plug from the engine. Inspect the electrodes and the ceramic insulator for any visible deposits. The type and color of the deposits can provide clues about the cause of the fouling. Common types of fouling include:
- Oil fouling
- Carbon fouling
- Fuel fouling
- Lead fouling
Interpreting the Spark Plug Fouling Chart
Once you have identified the type of fouling, refer to a Spark Plug Fouling Chart to determine the cause. Here is an example of what a Spark Plug Fouling Chart might look like:
| Type of Fouling | Description | Possible Causes | Recommended Actions |
|---|---|---|---|
| Oil Fouling | Thick, oily deposits on the electrodes | Worn piston rings, valve seals, or excessive oil consumption | Check and replace worn engine components |
| Carbon Fouling | Dry, black deposits on the electrodes | Rich fuel mixture, incorrect spark plug heat range | Adjust fuel mixture, use the correct spark plug type |
| Fuel Fouling | Wet, unburned fuel deposits on the electrodes | Flooded engine, incorrect spark plug gap | Allow the engine to dry, check and adjust spark plug gap |
| Lead Fouling | Gray, metallic deposits on the electrodes | Use of leaded fuel in an engine designed for unleaded fuel | Switch to unleaded fuel, use lead-resistant spark plugs |
By matching the deposits on your spark plug to the descriptions in the Spark Plug Fouling Chart, you can identify the cause of the fouling and take the necessary steps to address it.
🔧 Note: Always ensure that the engine is cool before removing the spark plugs to avoid burns.
Preventing Spark Plug Fouling
Preventing spark plug fouling is essential for maintaining engine performance and longevity. Here are some tips to help you avoid fouling:
- Use the correct type of spark plug for your engine
- Ensure proper engine tuning and fuel mixture
- Regularly inspect and replace spark plugs as recommended by the manufacturer
- Avoid excessive idling and short trips
- Use high-quality fuel and engine oil
By following these tips, you can minimize the risk of spark plug fouling and keep your engine running smoothly.
🔧 Note: Always refer to your vehicle's owner manual for specific recommendations on spark plug maintenance and replacement intervals.
Conclusion
Spark plug fouling is a common issue that can significantly impact engine performance. By understanding the causes and symptoms of fouling, and using a Spark Plug Fouling Chart to diagnose the problem, you can take the necessary steps to address and prevent it. Regular maintenance and proper engine care are key to ensuring the longevity and efficiency of your vehicle. Always consult your vehicle’s manual for specific guidelines and recommendations.
