Southern Blot Analysis

Southern Blot Analysis is a molecular biology technique used to detect specific DNA sequences within a sample. This method, developed by Edwin Southern in 1975, has been instrumental in various genetic studies, including gene mapping, mutation detection, and DNA fingerprinting. The process involves several key steps, each crucial for the accurate identification of target DNA sequences.

Table of Contents

Understanding Southern Blot Analysis

Southern Blot Analysis is a powerful tool in molecular biology that allows researchers to identify specific DNA sequences within a complex mixture of DNA fragments. The technique involves several steps, including DNA digestion, gel electrophoresis, transfer to a membrane, hybridization with a probe, and detection. Each step is carefully executed to ensure the accuracy and reliability of the results.

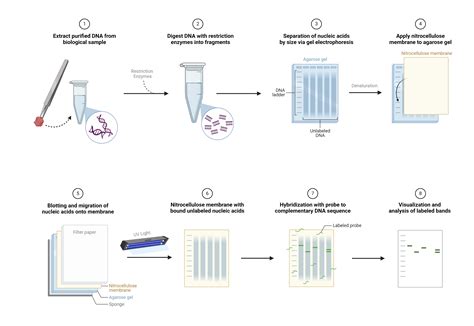

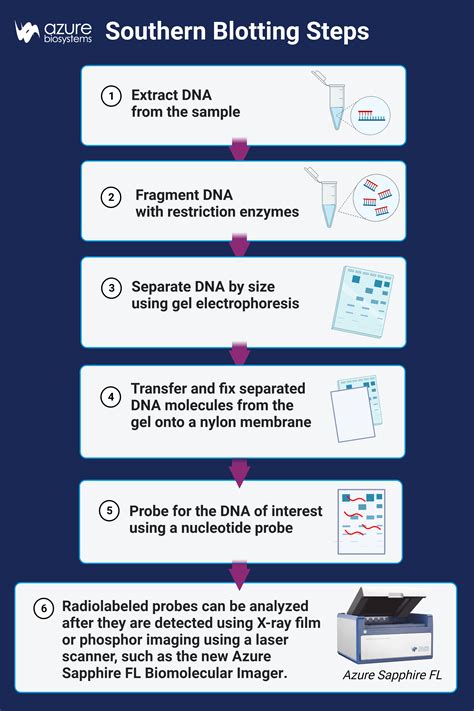

Steps Involved in Southern Blot Analysis

Southern Blot Analysis consists of several well-defined steps. Understanding each step is essential for performing the technique effectively.

DNA Extraction and Digestion

The first step in Southern Blot Analysis is the extraction of DNA from the sample. This can be done using various methods, depending on the type of sample (e.g., blood, tissue, or cells). Once the DNA is extracted, it is digested using restriction enzymes. These enzymes cut the DNA at specific recognition sites, producing fragments of varying lengths. The choice of restriction enzyme is crucial as it determines the size and number of DNA fragments generated.

Gel Electrophoresis

After digestion, the DNA fragments are separated by size using gel electrophoresis. This process involves loading the digested DNA onto an agarose gel and applying an electric current. The DNA fragments migrate through the gel at different rates based on their size, with smaller fragments moving faster than larger ones. The separated DNA fragments are then visualized using a DNA stain, such as ethidium bromide or SYBR Green.

Transfer to a Membrane

The next step is the transfer of the separated DNA fragments from the gel to a membrane. This is typically done using a process called capillary blotting. The gel is placed on a support, and a membrane (usually made of nitrocellulose or nylon) is laid on top. A stack of paper towels is placed on top of the membrane to absorb the buffer solution, which carries the DNA fragments from the gel to the membrane. The DNA fragments bind to the membrane, creating a replica of the gel.

Hybridization with a Probe

Once the DNA fragments are immobilized on the membrane, the membrane is incubated with a labeled probe. The probe is a single-stranded DNA or RNA molecule that is complementary to the target DNA sequence. The probe is labeled with a radioactive isotope, biotin, or a fluorescent dye to facilitate detection. During hybridization, the probe binds to its complementary sequence on the membrane, forming a stable duplex.

Detection

The final step in Southern Blot Analysis is the detection of the hybridized probe. The method of detection depends on the type of label used on the probe. For radioactive probes, the membrane is exposed to X-ray film, which captures the emitted radiation and produces an image of the hybridized fragments. For non-radioactive probes, detection methods include chemiluminescence, colorimetric assays, or fluorescence. The resulting image shows the positions of the target DNA sequences within the sample.

Applications of Southern Blot Analysis

Southern Blot Analysis has a wide range of applications in molecular biology and genetics. Some of the key applications include:

Gene Mapping: Southern Blot Analysis is used to map the location of genes on chromosomes. By analyzing the patterns of DNA fragments generated by different restriction enzymes, researchers can determine the relative positions of genes.
Mutation Detection: The technique is employed to detect mutations in specific genes. By comparing the DNA fragments from a sample with those from a control, researchers can identify changes in the DNA sequence that may be associated with genetic disorders.
DNA Fingerprinting: Southern Blot Analysis is used in forensic science to create DNA fingerprints. By analyzing the patterns of DNA fragments generated by specific restriction enzymes, researchers can identify unique genetic markers that can be used to match samples to individuals.
Gene Expression Studies: The technique is used to study gene expression by detecting the presence of specific mRNA transcripts. By hybridizing a probe to the mRNA, researchers can determine the levels of gene expression in different tissues or under different conditions.

Advantages and Limitations of Southern Blot Analysis

Southern Blot Analysis offers several advantages, making it a valuable tool in molecular biology. However, it also has some limitations that researchers should be aware of.

Advantages

High Specificity: Southern Blot Analysis is highly specific, allowing researchers to detect specific DNA sequences within a complex mixture of DNA fragments.
Versatility: The technique can be used to analyze DNA from a variety of sources, including blood, tissue, and cells.
Sensitivity: Southern Blot Analysis is highly sensitive, capable of detecting small amounts of target DNA sequences.

Limitations

Time-Consuming: The process is time-consuming, often taking several days to complete.
Labor-Intensive: Southern Blot Analysis requires multiple steps and careful handling of samples, making it labor-intensive.
Radioactive Materials: The use of radioactive probes poses health and safety risks, requiring special handling and disposal procedures.

📌 Note: While Southern Blot Analysis is a powerful technique, it is important to consider alternative methods, such as PCR (Polymerase Chain Reaction) and DNA microarrays, which offer faster and more efficient ways to detect specific DNA sequences.

Alternative Techniques to Southern Blot Analysis

With the advancement of molecular biology techniques, several alternatives to Southern Blot Analysis have emerged. These techniques offer faster, more efficient, and often safer methods for detecting specific DNA sequences.

Polymerase Chain Reaction (PCR)

PCR is a widely used technique for amplifying specific DNA sequences. It involves the use of primers that are complementary to the target DNA sequence and a DNA polymerase enzyme that synthesizes new DNA strands. PCR is highly sensitive and can detect very small amounts of target DNA. It is also faster and less labor-intensive than Southern Blot Analysis.

DNA Microarrays

DNA microarrays, also known as gene chips, are used to analyze the expression of thousands of genes simultaneously. They consist of a solid surface, such as a glass slide or silicon chip, onto which thousands of DNA probes are immobilized. The sample DNA is labeled and hybridized to the probes, allowing researchers to detect the presence and abundance of specific DNA sequences.

Next-Generation Sequencing (NGS)

NGS is a high-throughput sequencing technology that allows researchers to sequence millions of DNA fragments simultaneously. It is used to detect genetic variations, identify mutations, and study gene expression. NGS is highly sensitive and can provide comprehensive information about the DNA sequence of a sample.

Future Directions in Southern Blot Analysis

Despite the emergence of alternative techniques, Southern Blot Analysis remains a valuable tool in molecular biology. However, there is ongoing research to improve the technique and make it more efficient and user-friendly. Some of the future directions in Southern Blot Analysis include:

Automation: Developing automated systems for Southern Blot Analysis to reduce the time and labor required.
Non-Radioactive Probes: Exploring the use of non-radioactive probes to eliminate the health and safety risks associated with radioactive materials.
High-Throughput Methods: Developing high-throughput methods for Southern Blot Analysis to analyze multiple samples simultaneously.

Southern Blot Analysis has been a cornerstone of molecular biology for decades, and its continued development and refinement will ensure its relevance in the field for years to come.

Southern Blot Analysis is a versatile and powerful technique that has significantly contributed to our understanding of genetics and molecular biology. Its ability to detect specific DNA sequences with high specificity and sensitivity makes it an invaluable tool for researchers. While it has some limitations, ongoing research and the development of alternative techniques continue to enhance its utility and efficiency. As molecular biology advances, Southern Blot Analysis will remain a fundamental method for studying DNA and its role in biological processes.
