Calculus is a powerful branch of mathematics that deals with rates of change and accumulation of quantities. One of the most fascinating applications of calculus is the study of solids of rotation. These are three-dimensional shapes created by rotating a two-dimensional curve around a given axis. Understanding solids of rotation is crucial for various fields, including engineering, physics, and computer graphics. This post will delve into the fundamentals of solids of rotation, their applications, and the mathematical techniques used to analyze them.
Understanding Solids of Rotation
Solids of rotation are generated by revolving a plane figure about an axis that lies in the same plane. The resulting three-dimensional shape can be analyzed using calculus to determine its volume and surface area. The most common methods for calculating these properties involve integration, specifically the disk and washer methods.

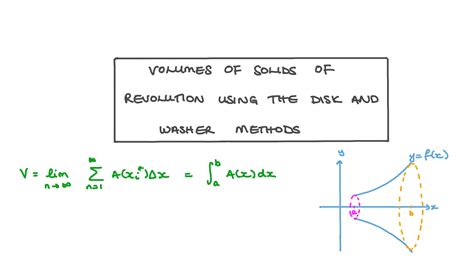

The Disk Method
The disk method is used when the region being revolved is bounded by a single curve. The idea is to divide the region into thin disks, each perpendicular to the axis of rotation. The volume of each disk is approximated by the volume of a cylinder with a very small height. The formula for the volume of a solid of revolution using the disk method is:
V = π ∫ab [f(x)]2 dx
where f(x) is the function describing the curve, and a and b are the limits of integration.
The Washer Method
The washer method is an extension of the disk method and is used when the region being revolved is bounded by two curves. In this case, the region is divided into thin washers (annuli), each with an inner radius and an outer radius. The volume of each washer is the difference between the volumes of two cylinders. The formula for the volume of a solid of revolution using the washer method is:
V = π ∫ab [R(x)2 - r(x)2] dx
where R(x) and r(x) are the outer and inner radii of the washer, respectively, and a and b are the limits of integration.
Applications of Solids of Rotation
Solids of rotation have numerous applications in various fields. Here are a few key areas where these concepts are applied:
- Engineering: In mechanical and civil engineering, solids of rotation are used to design and analyze structures such as pipes, tanks, and cylinders.
- Physics: In physics, solids of rotation are used to calculate the moments of inertia of objects, which is crucial for understanding rotational dynamics.
- Computer Graphics: In computer graphics, solids of rotation are used to create three-dimensional models from two-dimensional shapes.
- Manufacturing: In manufacturing, solids of rotation are used to design molds and dies for producing cylindrical and conical objects.
Calculating Surface Area
In addition to volume, the surface area of a solid of revolution can also be calculated using integration. The formula for the surface area of a solid of revolution is:
S = 2π ∫ab f(x) √[1 + (f’(x))2] dx
where f(x) is the function describing the curve, and f’(x) is its derivative. This formula takes into account the curvature of the surface.

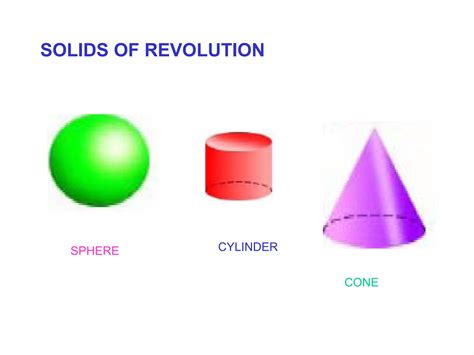

Examples of Solids of Rotation
Let’s consider a few examples to illustrate the concepts of solids of rotation.
Example 1: Volume of a Cone
Consider a right triangle with vertices at (0,0), (a,0), and (0,b). When this triangle is revolved about the x-axis, it forms a cone. The volume of the cone can be calculated using the disk method:
V = π ∫0a (b/a x)2 dx
Solving this integral gives:
V = π (b/a)2 ∫0a x2 dx = π (b/a)2 (a3/3) = (π/3) a2 b
Example 2: Volume of a Sphere
A sphere can be generated by revolving a semicircle about its diameter. The equation of a semicircle with radius r is y = √(r2 - x2). The volume of the sphere can be calculated using the disk method:
V = 2π ∫0r (r2 - x2) dx
Solving this integral gives:
V = 2π [r2x - (1⁄3)x3] evaluated from 0 to r = (4⁄3)πr3
Example 3: Surface Area of a Torus
A torus can be generated by revolving a circle about an axis that is coplanar with the circle but does not intersect it. The surface area of a torus can be calculated using the surface area formula for solids of rotation. The equation of the circle is y = √(r2 - x2), and the axis of rotation is the x-axis. The surface area of the torus is:
S = 2π ∫-rr √(r2 - x2) √[1 + (x/r)2] dx
Solving this integral gives:
S = 4π2rR
📝 Note: The examples provided are fundamental and serve as a starting point for understanding solids of rotation. More complex shapes and scenarios can be analyzed using similar techniques.
In addition to the disk and washer methods, there are other techniques for calculating the volume and surface area of solids of rotation. These include the cylindrical shell method and the use of parametric equations. The cylindrical shell method is particularly useful when the region being revolved is not easily divided into disks or washers. Parametric equations are used when the curve being revolved is not easily described by a single function.
Solids of rotation are a fundamental concept in calculus with wide-ranging applications. Understanding how to calculate the volume and surface area of these shapes is essential for anyone studying mathematics, engineering, or physics. By mastering the techniques of integration and applying them to solids of rotation, one can gain a deeper understanding of three-dimensional geometry and its practical applications.
In conclusion, solids of rotation are a fascinating and important topic in calculus. They provide a bridge between two-dimensional and three-dimensional geometry, allowing us to analyze complex shapes and structures. Whether you are a student, engineer, or enthusiast, understanding solids of rotation can open up new avenues of exploration and application. From designing structures to analyzing physical phenomena, the principles of solids of rotation are indispensable tools in the modern world.
