Solid Oxide Fuel Cell

In the quest for sustainable and efficient energy solutions, the Solid Oxide Fuel Cell (SOFC) has emerged as a promising technology. SOFCs are electrochemical devices that convert chemical energy from a fuel into electrical energy through a process that involves the oxidation of the fuel. This technology offers several advantages, including high efficiency, fuel flexibility, and low emissions, making it a viable option for various applications, from stationary power generation to transportation.

Table of Contents

Understanding Solid Oxide Fuel Cells

Solid Oxide Fuel Cells operate at high temperatures, typically between 700°C and 1000°C. This high operating temperature allows for the use of a solid oxide electrolyte, which conducts oxygen ions. The basic components of an SOFC include:

Anode: Where the fuel is oxidized, releasing electrons.
Cathode: Where oxygen from the air is reduced, accepting electrons.
Electrolyte: A solid oxide material that conducts oxygen ions from the cathode to the anode.

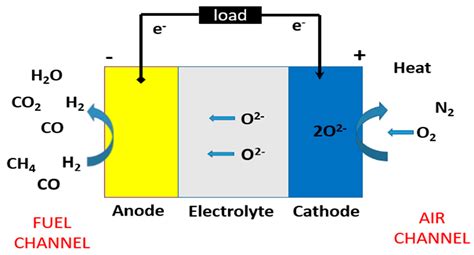

The electrochemical reactions in an SOFC can be summarized as follows:

At the anode: Fuel (e.g., hydrogen) + Oxygen ions → Water + Electrons
At the cathode: Oxygen + Electrons → Oxygen ions

The overall reaction produces water and electricity, with the electrons flowing through an external circuit to generate electrical power.

Types of Solid Oxide Fuel Cells

SOFCs can be categorized based on their design and operating conditions. The main types include:

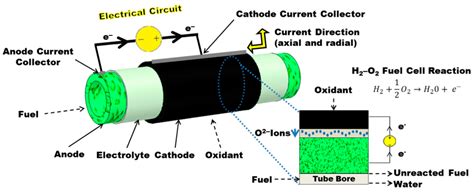

Tubular SOFCs: These cells have a tubular shape and are known for their robustness and durability. They are often used in high-temperature applications.

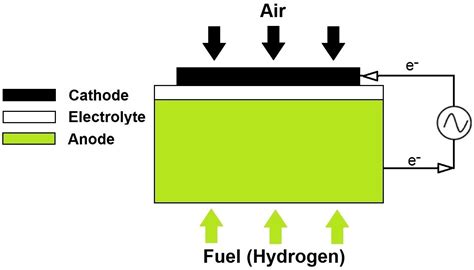

Planar SOFCs: These cells have a flat, planar design and are more compact and efficient. They are commonly used in stationary power generation.
Micro-tubular SOFCs: These are smaller versions of tubular SOFCs, offering advantages in terms of scalability and flexibility.

Advantages of Solid Oxide Fuel Cells

SOFCs offer several key advantages that make them an attractive option for various applications:

High Efficiency: SOFCs can achieve high electrical efficiencies, often exceeding 60%. This is due to their ability to utilize the heat generated during the electrochemical process.
Fuel Flexibility: SOFCs can operate on a variety of fuels, including hydrogen, natural gas, biogas, and even coal-derived syngas. This flexibility makes them suitable for different energy sources.
Low Emissions: The high operating temperature of SOFCs allows for the internal reforming of fuels, reducing the need for external reformers and lowering emissions.
Durability: SOFCs are known for their long operational lifetimes, often exceeding 40,000 hours, making them reliable for continuous power generation.

Applications of Solid Oxide Fuel Cells

SOFCs have a wide range of applications, from small-scale portable devices to large-scale power plants. Some of the key applications include:

Stationary Power Generation: SOFCs are used in residential, commercial, and industrial settings to provide reliable and efficient power. They can be integrated with combined heat and power (CHP) systems to maximize energy utilization.
Transportation: SOFCs are being developed for use in vehicles, including cars, buses, and trucks. Their high efficiency and low emissions make them an attractive option for sustainable transportation.
Portable Power: SOFCs can be used in portable devices such as laptops, smartphones, and military equipment, providing a reliable power source in remote or off-grid locations.
Auxiliary Power Units: SOFCs are used in auxiliary power units (APUs) for vehicles and aircraft, providing a clean and efficient power source for onboard systems.

Challenges and Future Directions

Despite their advantages, SOFCs face several challenges that need to be addressed for widespread adoption. Some of the key challenges include:

High Operating Temperatures: The high operating temperatures of SOFCs require the use of specialized materials that can withstand these conditions. This increases the cost and complexity of the system.
Material Degradation: The high temperatures and electrochemical reactions can lead to material degradation over time, affecting the performance and lifespan of the SOFC.
Cost: The cost of SOFCs is currently higher compared to traditional power generation technologies. Reducing the cost through material innovations and manufacturing improvements is crucial for their commercial viability.

To overcome these challenges, ongoing research and development efforts are focused on:

Developing new materials that can operate at lower temperatures while maintaining high performance.
Improving manufacturing processes to reduce costs and increase scalability.
Enhancing the durability and reliability of SOFCs through advanced material science and engineering.

🔍 Note: The development of intermediate-temperature SOFCs (IT-SOFCs) operating between 500°C and 700°C is a promising area of research, as it can reduce material degradation and lower costs.

Comparison with Other Fuel Cell Technologies

SOFCs are just one type of fuel cell technology, and it's important to compare them with other types to understand their unique advantages and limitations. Here is a comparison of SOFCs with other fuel cell technologies:

Fuel Cell Type	Operating Temperature	Electrolyte	Fuel	Applications
Solid Oxide Fuel Cell (SOFC)	700°C - 1000°C	Solid oxide	Hydrogen, natural gas, biogas	Stationary power, transportation, portable power
Proton Exchange Membrane Fuel Cell (PEMFC)	60°C - 80°C	Polymer membrane	Hydrogen	Transportation, portable power
Phosphoric Acid Fuel Cell (PAFC)	150°C - 220°C	Phosphoric acid	Hydrogen, natural gas	Stationary power, CHP systems
Molten Carbonate Fuel Cell (MCFC)	600°C - 700°C	Molten carbonate	Hydrogen, natural gas, biogas	Stationary power, CHP systems

Each type of fuel cell has its own strengths and weaknesses, and the choice of technology depends on the specific application and requirements.

Environmental Impact of Solid Oxide Fuel Cells

SOFCs offer significant environmental benefits compared to traditional fossil fuel-based power generation technologies. Some of the key environmental advantages include:

Reduced Greenhouse Gas Emissions: SOFCs produce lower greenhouse gas emissions, particularly when operating on renewable fuels such as hydrogen or biogas.
Lower Pollutant Emissions: The high operating temperature of SOFCs allows for the internal reforming of fuels, reducing the need for external reformers and lowering emissions of pollutants such as nitrogen oxides (NOx) and sulfur oxides (SOx).
Energy Efficiency: The high efficiency of SOFCs means that less fuel is required to generate the same amount of power, reducing overall fuel consumption and emissions.

However, it's important to note that the environmental impact of SOFCs also depends on the fuel source and the overall lifecycle of the technology. For example, the production of hydrogen from fossil fuels can result in significant greenhouse gas emissions, while the use of renewable hydrogen can significantly reduce the environmental impact.

🌱 Note: The environmental benefits of SOFCs can be maximized by integrating them with renewable energy sources and utilizing sustainable fuels.

Economic Considerations

While SOFCs offer numerous advantages, their economic viability is a critical factor in their widespread adoption. The cost of SOFCs is currently higher compared to traditional power generation technologies, but ongoing research and development efforts are aimed at reducing costs and improving economic competitiveness. Some of the key economic considerations include:

Capital Costs: The initial capital costs of SOFC systems can be high due to the use of specialized materials and manufacturing processes.
Operating Costs: The operating costs of SOFCs are generally lower compared to traditional power generation technologies, due to their high efficiency and fuel flexibility.
Maintenance Costs: The maintenance costs of SOFCs can vary depending on the specific design and operating conditions, but they are generally lower compared to other fuel cell technologies.

To improve the economic viability of SOFCs, efforts are focused on:

Developing new materials and manufacturing processes to reduce capital costs.
Improving the efficiency and durability of SOFCs to lower operating and maintenance costs.
Exploring new business models and financing options to make SOFCs more accessible and affordable.

In addition to the economic considerations, the environmental benefits and energy security advantages of SOFCs can also contribute to their overall value proposition.

In conclusion, Solid Oxide Fuel Cells represent a promising technology for sustainable and efficient energy generation. Their high efficiency, fuel flexibility, and low emissions make them an attractive option for various applications, from stationary power generation to transportation. While challenges such as high operating temperatures and material degradation need to be addressed, ongoing research and development efforts are focused on overcoming these obstacles and improving the economic viability of SOFCs. As the technology continues to evolve, SOFCs have the potential to play a significant role in the transition to a more sustainable energy future.
