Small Angle Assumption

In the realm of structural engineering and mechanics, the Small Angle Assumption plays a pivotal role in simplifying complex problems and making them more tractable. This assumption is particularly useful in the analysis of beams, trusses, and other structural elements where the deformations are small compared to the overall dimensions of the structure. By understanding and applying the Small Angle Assumption, engineers can derive more straightforward and computationally efficient solutions without significantly compromising accuracy.

Table of Contents

Understanding the Small Angle Assumption

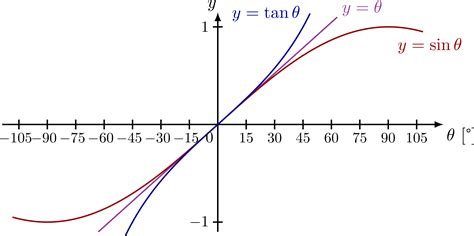

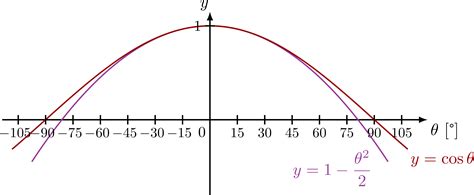

The Small Angle Assumption states that for small angles, the sine and cosine of the angle can be approximated by the angle itself in radians. Mathematically, this can be expressed as:

sin(θ) ≈ θ and cos(θ) ≈ 1 for small values of θ (in radians).

This approximation is valid when the angle θ is measured in radians and is small enough that θ² is negligible compared to θ. This simplification is crucial in various engineering applications, particularly in the analysis of structural elements under load.

Applications of the Small Angle Assumption

The Small Angle Assumption is widely used in several key areas of structural engineering and mechanics:

Beam Theory: In the analysis of beams, the deflection and slope of the beam are often small. The Small Angle Assumption allows engineers to simplify the differential equations governing beam behavior, making it easier to solve for deflections and stresses.
Truss Analysis: In truss structures, the members are assumed to be in either tension or compression, and the deformations are small. The Small Angle Assumption helps in simplifying the equilibrium equations and calculating the forces in the members.
Finite Element Analysis: In finite element methods, the Small Angle Assumption is used to linearize the strain-displacement relationships, making the numerical solution more efficient and stable.
Mechanics of Materials: In the study of stress and strain, the Small Angle Assumption is used to simplify the constitutive relationships and derive the stress-strain laws for various materials.

Mathematical Derivation

To understand how the Small Angle Assumption is applied, let's consider a simple example of a beam under a transverse load. The deflection of the beam can be described by the differential equation:

EI d²y/dx² = M(x)

where E is the modulus of elasticity, I is the moment of inertia, y is the deflection, and M(x) is the bending moment at a point x along the beam.

For small deflections, the slope of the beam (dy/dx) is small, and the Small Angle Assumption can be applied. This simplifies the differential equation and makes it easier to solve for the deflection y.

Similarly, in truss analysis, the equilibrium equations for a joint can be simplified using the Small Angle Assumption. For a joint with forces F₁, F₂, and F₃ acting at small angles, the equilibrium equations can be written as:

ΣF_x = F₁ cos(θ₁) + F₂ cos(θ₂) + F₃ cos(θ₃) = 0

ΣF_y = F₁ sin(θ₁) + F₂ sin(θ₂) + F₃ sin(θ₃) = 0

Using the Small Angle Assumption, these equations simplify to:

ΣF_x = F₁ + F₂ + F₃ = 0

ΣF_y = F₁θ₁ + F₂θ₂ + F₃θ₃ = 0

This simplification makes it easier to solve for the forces in the truss members.

Limitations of the Small Angle Assumption

While the Small Angle Assumption is powerful and widely used, it does have limitations. The assumption is only valid for small angles, typically less than about 15 degrees (0.26 radians). For larger angles, the approximation breaks down, and the actual values of sine and cosine must be used. Additionally, the Small Angle Assumption does not account for large deformations or nonlinear behavior, which may be important in some engineering applications.

It is also important to note that the Small Angle Assumption is a linear approximation. In cases where the behavior of the structure is nonlinear, this assumption may not be valid, and more complex analysis methods may be required.

Examples of the Small Angle Assumption in Practice

To illustrate the application of the Small Angle Assumption, let's consider a few examples:

Example 1: Cantilever Beam

A cantilever beam of length L is subjected to a point load P at the free end. The deflection y at the free end can be calculated using the Small Angle Assumption. The differential equation for the deflection is:

EI d²y/dx² = -P(x - L)

Using the Small Angle Assumption, this equation can be solved to find the deflection at the free end:

y_max = PL³/(3EI)

This solution is valid for small deflections, where the slope of the beam is small.

Example 2: Simply Supported Beam

A simply supported beam of length L is subjected to a uniformly distributed load w. The deflection y at the midpoint of the beam can be calculated using the Small Angle Assumption. The differential equation for the deflection is:

EI d²y/dx² = wLx/2 - wx²/2

Using the Small Angle Assumption, this equation can be solved to find the deflection at the midpoint:

y_max = 5wL⁴/(384EI)

This solution is valid for small deflections, where the slope of the beam is small.

Example 3: Truss Joint

Consider a truss joint with three members meeting at a point. The forces in the members can be calculated using the Small Angle Assumption. Let F₁, F₂, and F₃ be the forces in the members, and let θ₁, θ₂, and θ₃ be the small angles between the members and the horizontal. The equilibrium equations are:

ΣF_x = F₁ + F₂ + F₃ = 0

ΣF_y = F₁θ₁ + F₂θ₂ + F₃θ₃ = 0

Using the Small Angle Assumption, these equations can be solved to find the forces in the members.

📝 Note: In practice, the Small Angle Assumption is often used in conjunction with other simplifying assumptions, such as the assumption of small strains and displacements. These assumptions together form the basis of linear elasticity theory, which is widely used in structural engineering.

Advanced Topics in the Small Angle Assumption

For those interested in delving deeper into the Small Angle Assumption, there are several advanced topics to explore:

Nonlinear Analysis: In cases where the Small Angle Assumption is not valid, nonlinear analysis methods can be used to account for large deformations and rotations. These methods often involve solving nonlinear differential equations or using numerical techniques such as the finite element method.
Geometric Nonlinearity: Geometric nonlinearity refers to the effects of large rotations and displacements on the behavior of a structure. In such cases, the Small Angle Assumption is not valid, and more advanced analysis methods are required.
Material Nonlinearity: Material nonlinearity refers to the effects of nonlinear stress-strain relationships on the behavior of a structure. In such cases, the Small Angle Assumption may still be valid, but the constitutive relationships must be modified to account for the nonlinear behavior of the material.

These advanced topics are beyond the scope of this blog post, but they provide a glimpse into the more complex aspects of structural analysis and mechanics.

Conclusion

The Small Angle Assumption is a fundamental concept in structural engineering and mechanics, providing a powerful tool for simplifying complex problems. By approximating the sine and cosine of small angles, engineers can derive more straightforward and computationally efficient solutions without significantly compromising accuracy. This assumption is widely used in beam theory, truss analysis, finite element methods, and the mechanics of materials. However, it is important to recognize the limitations of the Small Angle Assumption and to use it judiciously in engineering practice. By understanding and applying the Small Angle Assumption, engineers can gain valuable insights into the behavior of structures and design more efficient and reliable systems.
