Slider And Crank

In the realm of mechanical engineering, the Slider and Crank mechanism stands as a cornerstone of innovation, driving countless applications across various industries. This mechanism, also known as a crank-slider mechanism, is a fundamental component in converting rotational motion into linear motion, and vice versa. Its versatility and efficiency make it indispensable in fields ranging from automotive engineering to robotics, and from manufacturing to aerospace.

Table of Contents

Understanding the Slider and Crank Mechanism

The Slider and Crank mechanism consists of three primary components: the crank, the connecting rod, and the slider. The crank is a rotating arm that is driven by a motor or engine. The connecting rod links the crank to the slider, which moves in a linear path. This simple yet effective design allows for the conversion of rotational motion into linear motion, making it a crucial element in many mechanical systems.

Components of the Slider and Crank Mechanism

The Slider and Crank mechanism is composed of several key components, each playing a vital role in its operation:

Crank: This is the rotating arm that is driven by an external power source. It converts the rotational motion into a linear motion through the connecting rod.
Connecting Rod: This rod links the crank to the slider, transmitting the motion from the crank to the slider.
Slider: This component moves in a linear path, guided by a linear bearing or a similar mechanism. It converts the rotational motion of the crank into linear motion.

Applications of the Slider and Crank Mechanism

The Slider and Crank mechanism finds applications in a wide array of industries due to its efficiency and reliability. Some of the most common applications include:

Automotive Industry: In internal combustion engines, the Slider and Crank mechanism converts the linear motion of the pistons into rotational motion of the crankshaft, which in turn drives the vehicle's wheels.
Manufacturing: In various manufacturing processes, the Slider and Crank mechanism is used to drive linear actuators, which are essential for automated machinery and assembly lines.
Robotics: In robotic systems, the Slider and Crank mechanism is used to control the movement of robotic arms and other components, enabling precise and controlled motion.
Aerospace: In aerospace engineering, the Slider and Crank mechanism is used in various applications, including landing gear systems and control surfaces.

Design Considerations for the Slider and Crank Mechanism

When designing a Slider and Crank mechanism, several factors must be considered to ensure optimal performance and reliability. These include:

Material Selection: The materials used for the crank, connecting rod, and slider must be chosen based on their strength, durability, and resistance to wear and tear.
Dimensions and Tolerances: The dimensions of the components must be precisely calculated to ensure smooth operation and minimize friction and wear.
Lubrication: Proper lubrication is essential to reduce friction and wear, ensuring the longevity of the mechanism.
Load and Speed: The mechanism must be designed to handle the expected load and speed, ensuring it can operate efficiently under the intended conditions.

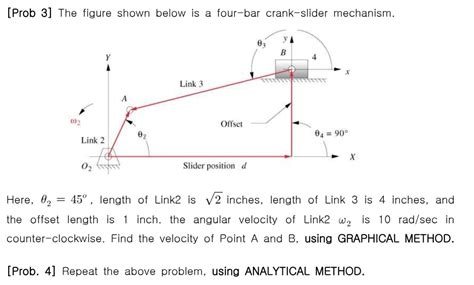

Mathematical Modeling of the Slider and Crank Mechanism

To understand the dynamics of the Slider and Crank mechanism, it is essential to develop a mathematical model. This model helps in predicting the behavior of the mechanism under different conditions and optimizing its design. The key parameters to consider in the mathematical modeling include:

Crank Angle: The angle of the crank relative to a reference position.
Connecting Rod Length: The length of the connecting rod.
Slider Position: The linear position of the slider.
Velocity and Acceleration: The velocity and acceleration of the slider and crank.

Using these parameters, the position, velocity, and acceleration of the slider can be calculated using trigonometric and kinematic equations. For example, the position of the slider (x) can be calculated using the following equation:

📝 Note: The following equation is a simplified representation and may vary based on specific design parameters.

x = r * cos(θ) + √(l² - r² * sin²(θ))

Where:

r is the length of the crank.
θ is the crank angle.
l is the length of the connecting rod.

Advantages of the Slider and Crank Mechanism

The Slider and Crank mechanism offers several advantages that make it a popular choice in various applications:

Efficiency: The mechanism is highly efficient in converting rotational motion into linear motion and vice versa.
Reliability: With proper design and maintenance, the Slider and Crank mechanism can operate reliably for extended periods.
Simplicity: The design is relatively simple, making it easy to manufacture and maintain.
Versatility: The mechanism can be used in a wide range of applications, from automotive engines to robotic systems.

Challenges and Limitations

Despite its advantages, the Slider and Crank mechanism also faces several challenges and limitations:

Wear and Tear: The mechanism is subject to wear and tear, especially in high-load and high-speed applications.
Friction: Friction between the moving parts can reduce efficiency and increase wear.
Complexity in Design: Designing a Slider and Crank mechanism for specific applications can be complex, requiring precise calculations and simulations.

Maintenance and Troubleshooting

To ensure the longevity and optimal performance of the Slider and Crank mechanism, regular maintenance and troubleshooting are essential. Some key maintenance tasks include:

Lubrication: Regular lubrication of the moving parts to reduce friction and wear.
Inspection: Periodic inspection of the components for signs of wear and damage.
Replacement: Timely replacement of worn-out parts to prevent failure.

Common issues that may arise with the Slider and Crank mechanism include:

Excessive Noise: This can indicate wear or misalignment of the components.
Reduced Efficiency: This can be due to increased friction or wear.
Failure to Operate: This can be caused by mechanical failure or improper lubrication.

When troubleshooting, it is important to identify the root cause of the issue and address it promptly to prevent further damage.

Future Trends in Slider and Crank Mechanism

The Slider and Crank mechanism continues to evolve with advancements in technology and materials. Some of the future trends in this field include:

Advanced Materials: The use of advanced materials, such as composites and high-strength alloys, to improve durability and reduce weight.
Smart Sensors: Integration of smart sensors for real-time monitoring and predictive maintenance.
Automation: Increased automation in the design and manufacturing processes to enhance precision and efficiency.
Simulation and Modeling: Advanced simulation and modeling techniques to optimize the design and performance of the mechanism.

These trends are expected to further enhance the efficiency, reliability, and versatility of the Slider and Crank mechanism, making it an even more valuable component in various industries.

In conclusion, the Slider and Crank mechanism is a fundamental and versatile component in mechanical engineering, with applications ranging from automotive engines to robotic systems. Its efficiency, reliability, and simplicity make it a popular choice in various industries. However, it also faces challenges such as wear and tear, friction, and complexity in design. Regular maintenance and troubleshooting are essential to ensure its longevity and optimal performance. With advancements in technology and materials, the future of the Slider and Crank mechanism looks promising, with potential for further improvements in efficiency, reliability, and versatility.
