Sinus Rhythm Ekg

Understanding the intricacies of a Sinus Rhythm EKG is crucial for healthcare professionals, as it provides valuable insights into the heart's electrical activity. This blog post delves into the fundamentals of Sinus Rhythm EKG, its significance, and how to interpret the results effectively.

Table of Contents

What is a Sinus Rhythm EKG?

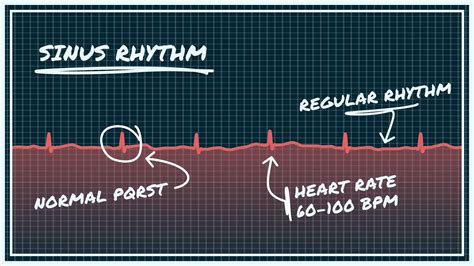

A Sinus Rhythm EKG, or electrocardiogram, is a diagnostic tool used to record the electrical signals produced by the heart. These signals are crucial for understanding the heart's rhythm and identifying any abnormalities. A normal Sinus Rhythm EKG indicates that the heart's electrical impulses are originating from the sinoatrial (SA) node, the heart's natural pacemaker, and are conducted properly through the heart's electrical pathways.

Understanding the Components of a Sinus Rhythm EKG

To interpret a Sinus Rhythm EKG accurately, it's essential to understand its key components:

P Wave: Represents the depolarization of the atria, indicating the start of the heart's electrical cycle.
PR Interval: Measures the time from the beginning of the P wave to the start of the QRS complex, reflecting the time it takes for the electrical impulse to travel from the atria to the ventricles.
QRS Complex: Represents the depolarization of the ventricles, indicating the contraction of the heart's lower chambers.
ST Segment: The period between the end of the QRS complex and the beginning of the T wave, representing the plateau phase of ventricular depolarization.
T Wave: Represents the repolarization of the ventricles, indicating the relaxation phase of the heart's lower chambers.
QT Interval: Measures the time from the start of the QRS complex to the end of the T wave, reflecting the total duration of ventricular depolarization and repolarization.

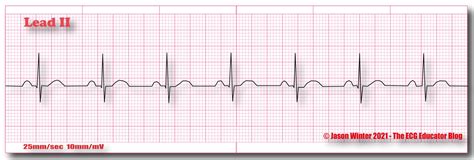

Interpreting a Sinus Rhythm EKG

Interpreting a Sinus Rhythm EKG involves several steps. Here’s a detailed guide to help you understand the process:

Step 1: Assess the Rhythm

Determine if the rhythm is regular or irregular. A regular rhythm means the intervals between the R waves are consistent, while an irregular rhythm indicates variability in these intervals.

Step 2: Identify the P Waves

Look for P waves before each QRS complex. In a normal Sinus Rhythm EKG, each P wave should be upright in leads II, III, and aVF, and inverted in aVR. The P waves should be consistent in shape and size.

Step 3: Measure the PR Interval

The PR interval should be between 0.12 and 0.20 seconds. A PR interval outside this range may indicate a conduction abnormality.

Step 4: Examine the QRS Complex

The QRS complex should be narrow, typically less than 0.12 seconds. A wide QRS complex may suggest a bundle branch block or ventricular origin of the impulse.

Step 5: Analyze the ST Segment and T Wave

The ST segment should be isoelectric, meaning it should be at the same level as the baseline. The T wave should be upright in most leads and should not be inverted unless in leads aVR, V1, or V2, where it is normally inverted.

Step 6: Calculate the Heart Rate

The heart rate can be calculated by counting the number of large squares between two consecutive R waves and using the formula: Heart Rate = 300 / Number of Large Squares. Alternatively, you can use the "6-second method" by counting the number of QRS complexes in a 6-second strip and multiplying by 10.

Common Abnormalities in Sinus Rhythm EKG

While a normal Sinus Rhythm EKG indicates a healthy heart rhythm, several abnormalities can be detected through this diagnostic tool. Some common abnormalities include:

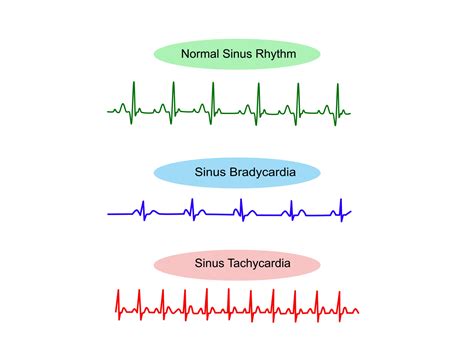

Sinus Bradycardia: A heart rate below 60 beats per minute.
Sinus Tachycardia: A heart rate above 100 beats per minute.
First-Degree AV Block: A PR interval greater than 0.20 seconds.
Second-Degree AV Block (Mobitz I and II): Intermittent failure of the electrical impulse to conduct from the atria to the ventricles.
Third-Degree AV Block: Complete dissociation between the atria and ventricles, with the ventricles often paced by a junctional or ventricular escape rhythm.
Premature Atrial Contractions (PACs): Early beats originating from the atria, often seen as an abnormal P wave followed by a QRS complex.
Premature Ventricular Contractions (PVCs): Early beats originating from the ventricles, often seen as a wide, bizarre QRS complex without a preceding P wave.

These abnormalities can provide valuable information about the heart's electrical activity and help guide treatment decisions.

Clinical Significance of Sinus Rhythm EKG

The clinical significance of a Sinus Rhythm EKG lies in its ability to detect various cardiac conditions. By identifying abnormalities in the heart's electrical activity, healthcare professionals can diagnose and manage conditions such as:

Arrhythmias: Irregular heart rhythms that can be life-threatening if not properly managed.
Conduction Abnormalities: Issues with the heart's electrical conduction system that can lead to symptoms such as dizziness, fainting, or chest pain.
Electrolyte Imbalances: Abnormal levels of electrolytes such as potassium, calcium, or magnesium that can affect the heart's electrical activity.
Myocardial Infarction: A heart attack caused by a blockage in the coronary arteries, which can be detected by changes in the ST segment and T wave.

Regular monitoring of the Sinus Rhythm EKG can help in the early detection and management of these conditions, improving patient outcomes.

Advanced Techniques in Sinus Rhythm EKG Interpretation

In addition to the basic interpretation techniques, advanced methods can provide deeper insights into the heart's electrical activity. Some of these techniques include:

Vectorcardiography: A method that uses three orthogonal leads to create a vector loop, providing a three-dimensional representation of the heart's electrical activity.
Signal-Averaged EKG: A technique that averages multiple EKG signals to enhance the detection of low-amplitude signals, such as those associated with ventricular late potentials.
Holter Monitoring: A continuous EKG recording over 24 to 48 hours, allowing for the detection of intermittent arrhythmias and other abnormalities that may not be captured on a standard EKG.

These advanced techniques can be particularly useful in complex cases where a standard Sinus Rhythm EKG may not provide sufficient information.

Case Studies in Sinus Rhythm EKG Interpretation

To illustrate the practical application of Sinus Rhythm EKG interpretation, let's consider a few case studies:

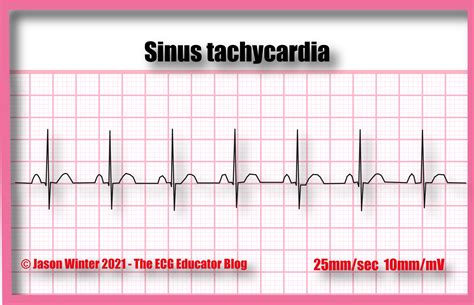

Case Study 1: Sinus Tachycardia

A 30-year-old patient presents with palpitations and shortness of breath. The Sinus Rhythm EKG shows a heart rate of 120 beats per minute with a regular rhythm and normal P waves, QRS complexes, and T waves. The diagnosis is sinus tachycardia, likely due to anxiety or physical exertion.

Case Study 2: First-Degree AV Block

A 55-year-old patient with a history of hypertension presents for a routine check-up. The Sinus Rhythm EKG reveals a PR interval of 0.24 seconds with a normal heart rate and rhythm. The diagnosis is first-degree AV block, which may require further monitoring but is generally benign.

Case Study 3: Premature Ventricular Contractions

A 45-year-old patient with a history of coronary artery disease complains of occasional skipped beats. The Sinus Rhythm EKG shows frequent premature ventricular contractions, characterized by wide, bizarre QRS complexes without preceding P waves. The patient may require further evaluation and treatment to manage these arrhythmias.

📝 Note: These case studies are hypothetical and for illustrative purposes only. Real-world cases may require more detailed evaluation and management.

Future Directions in Sinus Rhythm EKG Technology

The field of Sinus Rhythm EKG technology is continually evolving, with advancements aimed at improving accuracy, ease of use, and diagnostic capabilities. Some future directions include:

Artificial Intelligence and Machine Learning: These technologies can enhance the interpretation of Sinus Rhythm EKGs by identifying patterns and abnormalities that may be missed by human observers.
Wearable Devices: Portable and wearable EKG devices allow for continuous monitoring, providing valuable data for early detection and management of cardiac conditions.
Telemedicine: Remote monitoring and interpretation of Sinus Rhythm EKGs can improve access to cardiac care, especially in rural or underserved areas.

These advancements hold promise for improving the diagnosis and management of cardiac conditions, ultimately leading to better patient outcomes.

In conclusion, understanding the Sinus Rhythm EKG is essential for healthcare professionals to accurately diagnose and manage various cardiac conditions. By mastering the interpretation of this diagnostic tool, clinicians can provide timely and effective care, improving patient outcomes and quality of life. The continuous evolution of Sinus Rhythm EKG technology further enhances its diagnostic capabilities, ensuring that it remains a cornerstone of cardiac evaluation.
