Sinus Rhythm Ecg

Electrocardiography (ECG) is a crucial diagnostic tool in cardiology, providing valuable insights into the electrical activity of the heart. One of the most fundamental aspects of ECG interpretation is understanding the sinus rhythm ECG. This rhythm is the normal electrical activity of the heart, originating from the sinoatrial node (SA node), which acts as the heart's natural pacemaker. Recognizing and interpreting sinus rhythm on an ECG is essential for diagnosing various cardiac conditions and ensuring accurate patient care.

Table of Contents

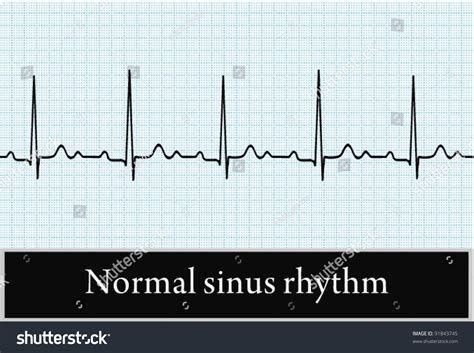

Understanding Sinus Rhythm ECG

Sinus rhythm is characterized by a regular and consistent pattern of electrical impulses that originate from the SA node. These impulses travel through the atria, causing them to contract, and then proceed to the atrioventricular (AV) node, where they are briefly delayed before continuing to the ventricles. This coordinated sequence results in the familiar P-QRS-T waveform seen on an ECG.

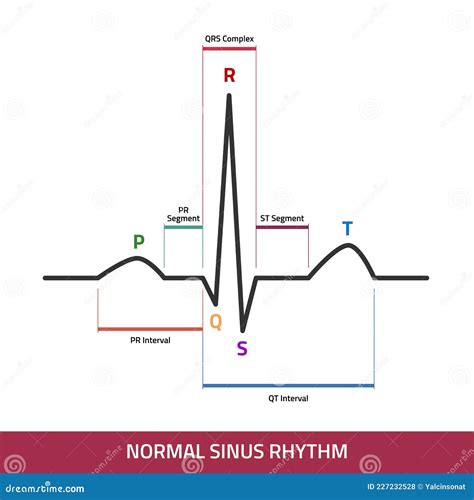

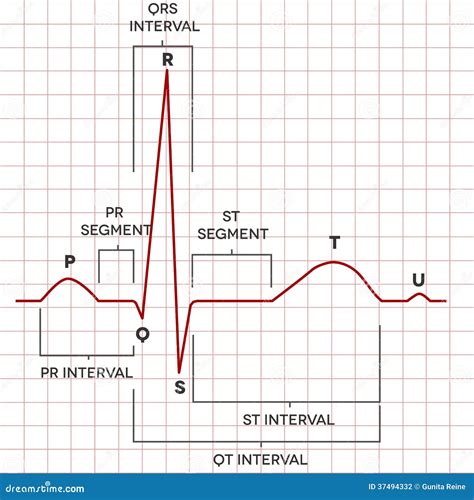

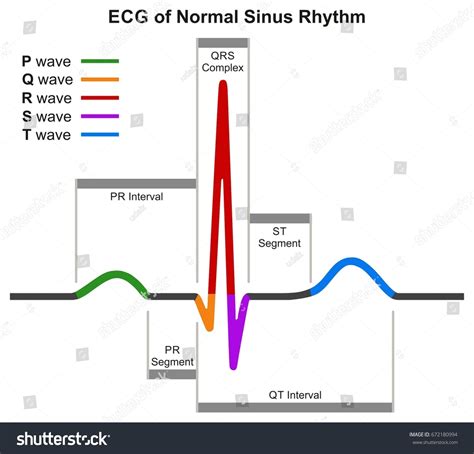

Key Features of Sinus Rhythm ECG

To accurately identify sinus rhythm on an ECG, it is important to recognize several key features:

P Wave: The P wave represents atrial depolarization and is typically upright in leads I, II, and aVF. It should be smooth and rounded, with a duration of less than 0.12 seconds.
PR Interval: The PR interval measures the time from the beginning of the P wave to the start of the QRS complex. In sinus rhythm, the PR interval is usually between 0.12 and 0.20 seconds.
QRS Complex: The QRS complex represents ventricular depolarization. In sinus rhythm, the QRS complex is narrow, typically less than 0.12 seconds in duration.
RR Interval: The RR interval measures the time between two consecutive R waves. In sinus rhythm, the RR intervals are consistent, indicating a regular heart rate.
T Wave: The T wave represents ventricular repolarization and is usually upright in most leads. It should be smooth and symmetrical.

Interpreting Sinus Rhythm ECG

Interpreting a sinus rhythm ECG involves a systematic approach to ensure that all key features are accurately identified. Here are the steps to follow:

Rate: Determine the heart rate by counting the number of QRS complexes in a 6-second strip and multiplying by 10. Alternatively, use the large squares on the ECG paper to estimate the rate.
Rhythm: Assess the regularity of the RR intervals. In sinus rhythm, the RR intervals should be consistent.
P Waves: Identify the presence and morphology of P waves. They should be upright in leads I, II, and aVF and precede each QRS complex.
PR Interval: Measure the PR interval to ensure it falls within the normal range of 0.12 to 0.20 seconds.
QRS Complex: Evaluate the duration and morphology of the QRS complex. It should be narrow and less than 0.12 seconds in duration.
ST Segment and T Wave: Assess the ST segment and T wave for any abnormalities. In sinus rhythm, the ST segment should be isoelectric, and the T wave should be upright and symmetrical.

🔍 Note: Always compare the ECG findings with the patient's clinical symptoms and medical history to ensure an accurate diagnosis.

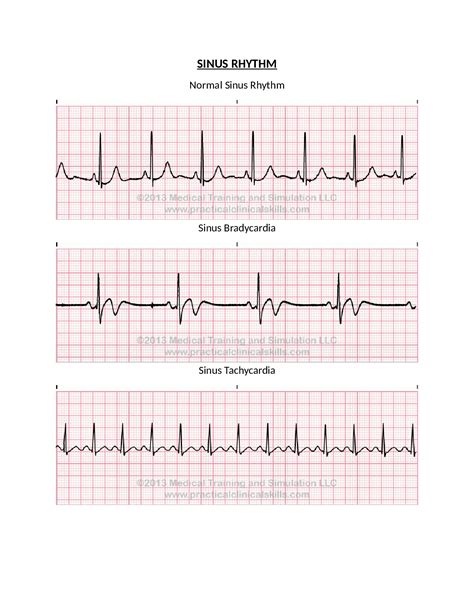

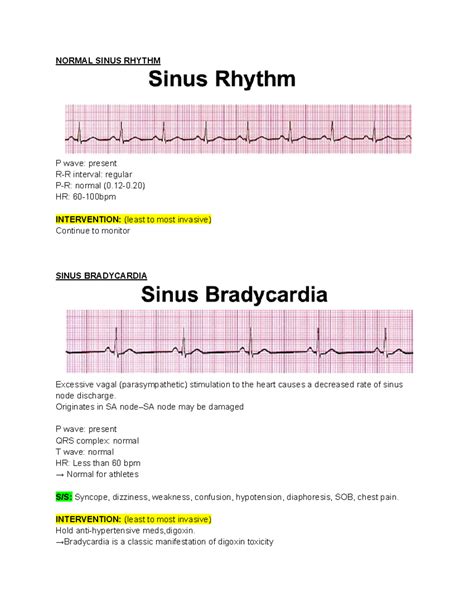

Common Variations of Sinus Rhythm

While sinus rhythm is the normal electrical activity of the heart, there are several variations that can occur. Understanding these variations is important for accurate ECG interpretation:

Sinus Bradycardia: A heart rate of less than 60 beats per minute in an adult. It is often benign but can be symptomatic in some patients.
Sinus Tachycardia: A heart rate of more than 100 beats per minute. It can be physiological (e.g., during exercise) or pathological (e.g., due to fever or anxiety).
Sinus Arrhythmia: A variation in the heart rate that is often seen in young, healthy individuals. It is characterized by a waxing and waning of the RR intervals.
Sinus Pause: A temporary cessation of sinus node activity, resulting in a pause in the ECG tracing. It is usually benign but can be symptomatic in some patients.

Differential Diagnosis of Sinus Rhythm

Differentiating sinus rhythm from other cardiac rhythms is crucial for accurate diagnosis and treatment. Some common rhythms that can be confused with sinus rhythm include:

Atrial Fibrillation: Characterized by an irregularly irregular rhythm with no discernible P waves. The ventricular rate is often rapid and irregular.
Atrial Flutter: Characterized by a regular atrial rate (usually around 300 beats per minute) with a variable ventricular response. The ECG shows sawtooth-like flutter waves.
Junctional Rhythm: Originates from the AV junction rather than the SA node. The P waves are inverted or absent, and the QRS complex is narrow.
Ventricular Rhythm: Originates from the ventricles and is characterized by a wide QRS complex (greater than 0.12 seconds) and no preceding P waves.

Clinical Significance of Sinus Rhythm ECG

Recognizing sinus rhythm on an ECG is essential for diagnosing various cardiac conditions and guiding treatment decisions. Some clinical scenarios where sinus rhythm ECG is particularly important include:

Acute Coronary Syndrome: Sinus rhythm is the expected rhythm in patients with acute coronary syndrome. Abnormalities in the ST segment and T wave can indicate ischemia or infarction.
Heart Failure: Sinus rhythm is often present in patients with heart failure, but the ECG may show signs of left ventricular hypertrophy or conduction abnormalities.
Electrolyte Imbalances: Abnormalities in serum electrolytes, such as potassium or calcium, can affect the ECG waveform and rhythm. Sinus rhythm may be present, but the ECG can show characteristic changes.
Drug Toxicity: Certain medications, such as digoxin or antiarrhythmic drugs, can affect the ECG waveform and rhythm. Sinus rhythm may be present, but the ECG can show signs of drug toxicity.

Advanced ECG Analysis

In addition to the basic features of sinus rhythm ECG, advanced ECG analysis can provide further insights into cardiac function and pathology. Some advanced ECG parameters include:

QT Interval: Measures the time from the beginning of the QRS complex to the end of the T wave. It represents the total duration of ventricular depolarization and repolarization.
QTc Interval: The QT interval corrected for heart rate. It is calculated using various formulas, such as Bazett's or Fridericia's formula.
ST Segment Depression/Elevation: Abnormalities in the ST segment can indicate ischemia, infarction, or other cardiac conditions.
T Wave Inversion: Inversion of the T wave can indicate ischemia, infarction, or other cardiac conditions.

Case Studies

To illustrate the importance of recognizing sinus rhythm on an ECG, consider the following case studies:

Case Study 1: Acute Coronary Syndrome

A 55-year-old male presents to the emergency department with chest pain. His ECG shows sinus rhythm with ST segment elevation in leads II, III, and aVF. This pattern is consistent with an inferior wall myocardial infarction. The patient is promptly treated with thrombolytics and transferred to the cardiac catheterization laboratory for percutaneous coronary intervention.

Case Study 2: Electrolyte Imbalances

A 65-year-old female with a history of chronic kidney disease presents with weakness and fatigue. Her ECG shows sinus rhythm with a prolonged QT interval and T wave inversion in leads V4-V6. Laboratory tests reveal hypocalcemia and hypokalemia. The patient is treated with intravenous calcium and potassium supplements, and her symptoms resolve.

Case Study 3: Drug Toxicity

A 70-year-old male with a history of atrial fibrillation presents with nausea, vomiting, and visual disturbances. His ECG shows sinus rhythm with a prolonged PR interval and widened QRS complex. Laboratory tests reveal digoxin toxicity. The patient is treated with digoxin-specific antibody fragments and supportive care, and his symptoms resolve.

Conclusion

Understanding and interpreting sinus rhythm on an ECG is a fundamental skill in cardiology. By recognizing the key features of sinus rhythm and differentiating it from other cardiac rhythms, healthcare providers can accurately diagnose various cardiac conditions and guide appropriate treatment. Advanced ECG analysis and clinical correlation are essential for comprehensive patient care. Regular practice and continuous learning are crucial for maintaining proficiency in ECG interpretation and ensuring optimal patient outcomes.
