Simply Supported Beam

Understanding the behavior and analysis of a simply supported beam is fundamental in structural engineering. A simply supported beam is a structural element that is supported at two points, typically at the ends, allowing for rotation but preventing vertical movement. This type of beam is commonly used in various construction projects due to its simplicity and effectiveness in distributing loads. This post will delve into the principles, analysis methods, and practical applications of simply supported beams, providing a comprehensive guide for engineers and students alike.

Table of Contents

Understanding Simply Supported Beams

A simply supported beam is characterized by its support conditions, which allow for rotation at the supports but restrict vertical displacement. This type of beam is often used in bridges, roofs, and floors where the load distribution is straightforward and the structural requirements are not overly complex. The primary advantage of a simply supported beam is its simplicity in design and analysis, making it a popular choice for many engineering applications.

Types of Loads on Simply Supported Beams

Simply supported beams can be subjected to various types of loads, including:

Concentrated Loads: These are loads applied at a single point along the beam. Examples include point loads from machinery or vehicles.
Uniformly Distributed Loads: These loads are evenly spread over a portion or the entire length of the beam. Examples include the weight of a roof or floor.
Uniformly Varying Loads: These loads increase or decrease linearly along the beam. Examples include the weight of a retaining wall or a sloping roof.
Moment Loads: These are loads that apply a moment or torque to the beam, causing it to rotate.

Analysis of Simply Supported Beams

The analysis of a simply supported beam involves determining the reactions at the supports, the shear forces, and the bending moments along the beam. This analysis is crucial for ensuring the beam can safely carry the applied loads without failure.

Reactions at the Supports

The first step in analyzing a simply supported beam is to determine the reactions at the supports. These reactions can be found using the equations of static equilibrium:

ΣF_y = 0: The sum of the vertical forces must be zero.
ΣM = 0: The sum of the moments about any point must be zero.

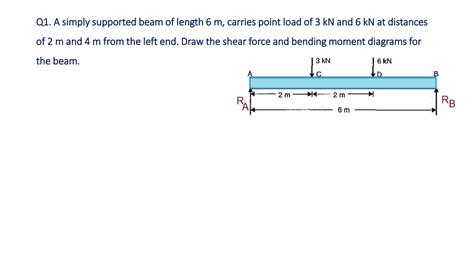

For a beam with a concentrated load P at a distance a from the left support and a length L, the reactions R_A and R_B can be calculated as follows:

R_A = P * (L - a) / L

R_B = P * a / L

Shear Forces and Bending Moments

Once the reactions are determined, the next step is to calculate the shear forces and bending moments along the beam. Shear forces are the vertical forces acting on a section of the beam, while bending moments are the moments that cause the beam to bend.

The shear force diagram (SFD) and bending moment diagram (BMD) are graphical representations of these forces and moments along the length of the beam. These diagrams are essential for understanding the behavior of the beam under load and for designing the beam to withstand the applied forces.

For a simply supported beam with a uniformly distributed load w, the shear force V(x) and bending moment M(x) at a distance x from the left support can be calculated as follows:

V(x) = w * (L/2 - x)

M(x) = w * x * (L/2 - x/3)

Deflection of Simply Supported Beams

The deflection of a simply supported beam is the vertical displacement of the beam under load. Deflection is an important consideration in beam design, as excessive deflection can lead to structural failure or aesthetic issues. The deflection of a beam can be calculated using the moment-area method or the double integration method.

For a simply supported beam with a uniformly distributed load w, the maximum deflection δ_max occurs at the midpoint of the beam and can be calculated as follows:

δ_max = (5 * w * L⁴) / (384 * E * I)

where E is the modulus of elasticity of the beam material and I is the moment of inertia of the beam cross-section.

Practical Applications of Simply Supported Beams

Simply supported beams are used in a wide range of practical applications, including:

Bridges: Simply supported beams are commonly used in the construction of bridges, where they support the weight of the roadway and vehicles.
Roofs: Simply supported beams are used in roof construction to support the weight of the roofing material and any additional loads, such as snow or wind.
Floors: Simply supported beams are used in floor construction to support the weight of the floor covering and any additional loads, such as furniture or people.
Machinery Supports: Simply supported beams are used to support machinery and equipment in industrial settings.

Design Considerations for Simply Supported Beams

When designing a simply supported beam, several factors must be considered to ensure the beam can safely carry the applied loads. These factors include:

Material Selection: The choice of material for the beam will depend on the required strength, stiffness, and durability. Common materials include steel, concrete, and wood.
Cross-Sectional Shape: The shape of the beam's cross-section will affect its strength and stiffness. Common shapes include rectangular, I-beam, and T-beam.
Load Conditions: The type and magnitude of the loads applied to the beam must be carefully considered to ensure the beam can safely carry them.
Deflection Limits: The maximum allowable deflection of the beam must be considered to prevent structural failure or aesthetic issues.

In addition to these factors, the design of a simply supported beam must also comply with relevant building codes and standards, such as the American Society of Civil Engineers (ASCE) and the International Building Code (IBC).

📝 Note: It is important to consult with a licensed structural engineer to ensure the design of a simply supported beam meets all relevant codes and standards and can safely carry the applied loads.

Example Calculation

Let's consider an example of a simply supported beam with the following properties:

Length (L) = 10 meters
Uniformly distributed load (w) = 5 kN/m
Modulus of elasticity (E) = 200 GPa
Moment of inertia (I) = 0.0001 m⁴

First, we calculate the reactions at the supports:

R_A = R_B = w * L / 2 = 5 * 10 / 2 = 25 kN

Next, we calculate the shear force and bending moment at a distance x from the left support:

V(x) = w * (L/2 - x)

M(x) = w * x * (L/2 - x/3)

Finally, we calculate the maximum deflection at the midpoint of the beam:

δ_max = (5 * w * L⁴) / (384 * E * I) = (5 * 5 * 10⁴) / (384 * 200 * 10⁹ * 0.0001) = 0.0163 meters

This example demonstrates the steps involved in analyzing a simply supported beam and calculating the reactions, shear forces, bending moments, and deflection.

📝 Note: The example calculation assumes a uniformly distributed load and a simply supported beam with specific properties. The actual calculations may vary depending on the load conditions and beam properties.

Simply supported beams are a fundamental concept in structural engineering, with wide-ranging applications in construction and design. Understanding the principles, analysis methods, and practical applications of simply supported beams is essential for engineers and students alike. By following the guidelines and considerations outlined in this post, engineers can design and analyze simply supported beams to ensure they can safely carry the applied loads and meet the required performance criteria.

In conclusion, the analysis and design of simply supported beams involve a thorough understanding of the beam’s support conditions, load types, and structural behavior. By applying the principles of static equilibrium, shear force and bending moment diagrams, and deflection calculations, engineers can ensure the safe and efficient design of simply supported beams. Whether used in bridges, roofs, floors, or machinery supports, simply supported beams play a crucial role in modern construction and engineering projects.
